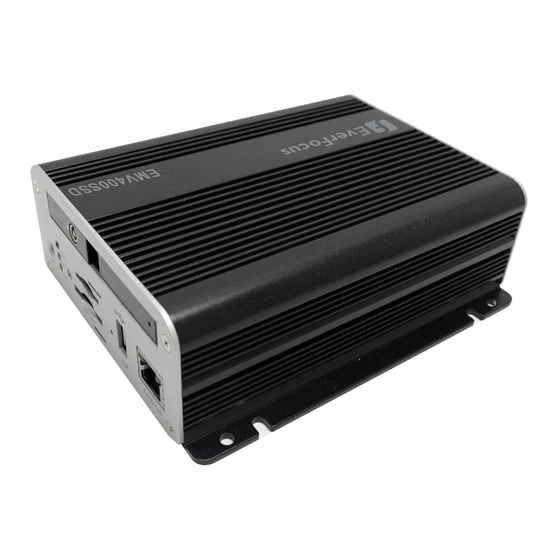

EverFocus EMV400SSD Quick Installation Manual

3g module, 4g module and wi-fi module
Hide thumbs Also See for EMV400SSD:

Advertisement

Quick Links

Download this manual

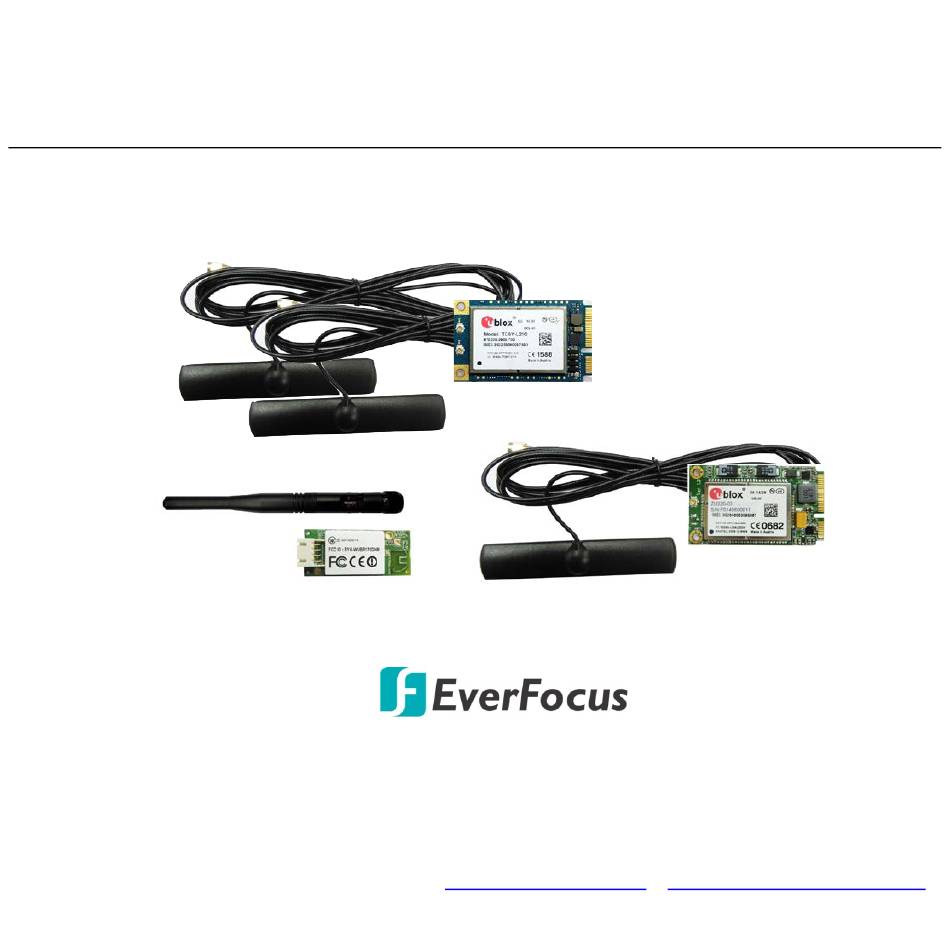

EMV400SSD
3G Module, 4G Module and Wi-Fi Module Installation
Quick Installation Guide
4G Module
4G Antennas
Wi-Fi Antenna
3G Module
Wi-Fi Module
3G Antenna
Copyright © EverFocus Electronics Corporation
Release Date: April, 2017
EverFocus Taiwan 12F-1, No.79, Sec. 1, Shin-Tai Wu Road, Hsi-Chih, New Taipei City, Taiwan
TEL: +886 2 2698 2334 FAX: +886 2 2698 2380
www.everfocus.com.tw marketing@everfocus.com.tw

Advertisement

loading
Need help?

Need help?

Do you have a question about the EMV400SSD and is the answer not in the manual?

Questions and answers

Related Manuals for EverFocus EMV400SSD

Summary of Contents for EverFocus EMV400SSD

  • Page 1 3G Module Wi-Fi Module 3G Antenna Copyright © EverFocus Electronics Corporation Release Date: April, 2017 EverFocus Taiwan 12F-1, No.79, Sec. 1, Shin-Tai Wu Road, Hsi-Chih, New Taipei City, Taiwan TEL: +886 2 2698 2334 FAX: +886 2 2698 2380 www.everfocus.com.tw marketing@everfocus.com.tw...

  • Page 2: Package Content

    1. Package Content 3G Module Package: RF Cable 3G Module USB Cable 3G Antenna Hexagon Nut Ring Screw x 2 4G Module Package: RF Cable X 2 4G Module USB Cable Ring x 2 Screw x 2 Hexagon Nut X 2 4G Antenna x 2...
  • Page 3 Wi-Fi Module Package: RF Cable Wi-Fi Module USB Cable Hexagon Nut Screw x 2 Wi-Fi Antenna Ring 2. 3G/4G Module Installation 1. Unscrew the four screws on the rear-side. 2. Pull out the Main Board.
  • Page 4 3. Remove the SSD tray and SSD holder from the Main Board. a. Unscrew the four screws and unplug the SSD SATA Cable. Remove the SSD tray from the Main Board. SSD SATA Cable b. Unscrew the four screws and remove the SSD holder. 4.
  • Page 5 5. Screw the 3G Module / 4G Module with the supplied two screws. 6. Connect the USB cable to the USB connectors. 7. Connect one end of the RF Cable to the 3G Module / 4G Module. 3G Module: one RF Cable.
  • Page 6 4G Module: two RF cables. 8. Remove the Antenna Plug on the rear panel in order to insert the RF Cable for connecting to the Antenna. For 3G Antenna, remove Ant.1 plug only. For 4G Antennas, remove both of the Ant.1 and Ant.2 plugs. 9.
  • Page 7 10. Screw back the SSD holder and SSD tray. 11. Slide the Main Board to the housing and then screw back the four screws. 12. Connect the supplied 3G Antenna to Ant.1; or 4G Antennas to Ant.1 and Ant.2. 4G Antenna 3G Antenna 13.

  • Page 8: Wi-Fi Module Installation

    3. Wi-Fi Module Installation 1. Follow Step 1 to Step 3 in 2. 3G/4G Module Installation to pull out the Main Board and remove the SSD tray and holder from the Main Board. 2. Connect the Wi-Fi Module and the USB Cable to the connectors. Wi-Fi Module USB Cable 1) Place the Wi-Fi Module on the board.
  • Page 9 3. Remove the Wi-Fi Antenna Plug (Ant.3) on the rear panel in order to insert the RF Cable for connecting to the Antenna. 4. Connect one end of the RF Cable to the Wi-Fi Module. Insert the other end of RF Cable through the Wi-Fi (Ant.3) antenna hole on the rear-panel, and then screw the RF Cable using the supplied Ring and Hexagon Nut.
  • Page 10 FAX: +81 3 5625 8189 www.everfocus.com www.everfocus.co.jp sales@everfocus.com info@everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed and und hergestellt mit qualitativ manufactured with high quality materials hochwertigen Materialien und and components which can be recycled Komponenten, die recycelt und wieder and reused.
