EMV400 HD/800 HD/1200 HD
4G Module and Antennas Installation
Quick Installation Guide

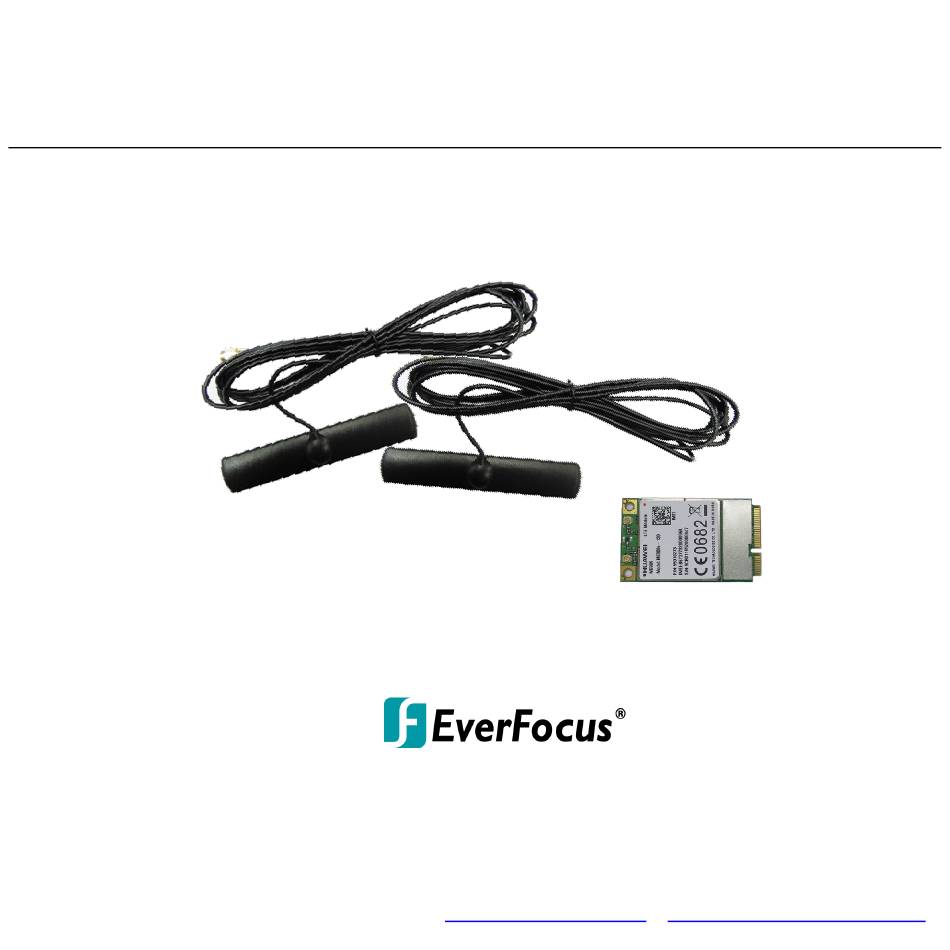

4G Antennas

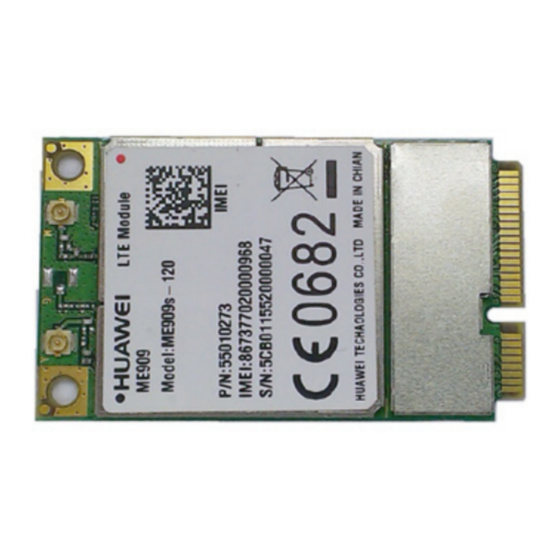

4G Module
Copyright © EverFocus Electronics Corp,
Release Date: July, 2015
EverFocus Taiwan 12F-1, No.79, Sec. 1, Shin-Tai Wu Road, Hsi-Chih, New Taipei City, Taiwan
TEL: +886 2 2698 2334 FAX: +886 2 2698 2380
www.everfocus.com.tw marketing@everfocus.com.tw
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for EverFocus EMV400 HD
Summary of Contents for EverFocus EMV400 HD
- Page 1 Quick Installation Guide 4G Antennas 4G Module Copyright © EverFocus Electronics Corp, Release Date: July, 2015 EverFocus Taiwan 12F-1, No.79, Sec. 1, Shin-Tai Wu Road, Hsi-Chih, New Taipei City, Taiwan TEL: +886 2 2698 2334 FAX: +886 2 2698 2380 www.everfocus.com.tw marketing@everfocus.com.tw...
-
Page 2: Package Content
1. Package Content 4G Module Package: 4G Module Screw x 2 RF Cable Assembly x2 4G Antenna x 2 Hexagon Nut x 2 Outer Ring x 2... -
Page 3: G Module Installation
2. 4G Module Installation 1. Open the cover of the mobile DVR by unscrewing below screws. 1 big screw on the Rear Panel 2 small screws 2 small screws on the Left Side on the Right Side 2 small screws on the Top Cover Small screw... - Page 4 2. Overview: To install a 4G Module, you need to install the packaged items and the SIM Card to the Daughter Board on the Mobile DVR. Mobile DVR: Daughter Board Daughter Board: SIM Card Connector 4G Module Socket Screw the 4G Module Here...
- Page 5 3. Insert the 4G Module into the 4G Module Socket on the Daughter Board. 4G Module Socket 4G Module 4. Screw the 4G Module to the Daughter Board using the supplied screws.
- Page 6 5. Insert the SIM Card into the SIM Card Connector on the Daughter Board. (Push the metal plate (Push the metal plate Insert the forward to fix the backward then lift it) SIM Card here SIM Card) Note: If you have installed the Wi-Fi Module, you need to unscrew and lift it so that you can insert the SIM Card into the SIM Card Connector.
- Page 7 6. Plug the RF Cable Assemblies to the small circles on the 4G Module. RF Cable Assemblies 7. Remove the Ant. 1 & Ant. 2 plugs in order to insert the RF Cable Assemblies for connecting the 4G antennas.
- Page 8 8. Insert the RF Cable Assemblies through the 4G antenna holes (Ant. 1 & Ant. 2). Please remember to use the Outer Rings and the Hexagon Nuts to tighten the connectors as the figure below. Hexagon Nut Outer Ring RF Cable Assembly 9.
- Page 9 FAX: +81 3 5625 8189 www.everfocus.com www.everfocus.co.jp sales@everfocus.com info@everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed and und hergestellt mit qualitativ manufactured with high quality materials hochwertigen Materialien und and components which can be recycled Komponenten, die recycelt und wieder and reused.
