MAJORITY HUNTINGDON Instruction Manual

Compact music system
Hide thumbs
Table of Contents

Advertisement

Quick Links

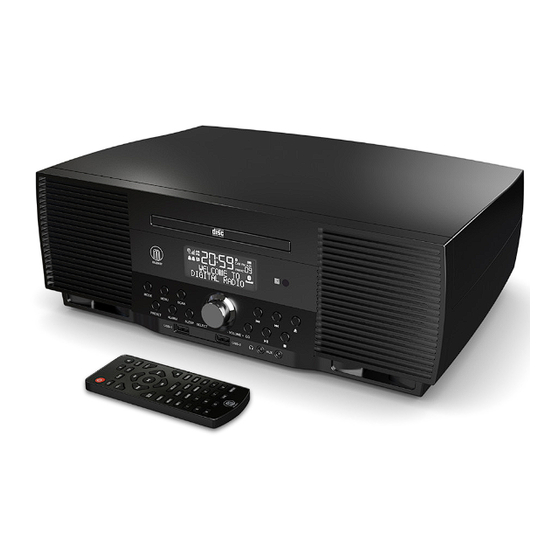

HUNTINGDON
Compact Music System
HNT-CDAB-BLK
Instructions Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HUNTINGDON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MAJORITY HUNTINGDON

Summary of Contents for MAJORITY HUNTINGDON

  • Page 1 HUNTINGDON Compact Music System HNT-CDAB-BLK Instructions Guide...

  • Page 2: Table Of Contents

    Contents What’s in the Box? Controls And Functions  Support  Instructions Guide  Basic Operation �������������������������������������������������������� DAB/DAB+ Radio ������������������������������������������������������� DAB/DAB+ Preset Stations ���������������������������������������� FM Radio ������������������������������������������������������������������ FM Preset Stations ��������������������������������������������������� CD Player ����������������������������������������������������������������� Bluetooth Mode ����������������������������������������������������� AUX-In and USB Charging ���������������������������������������� Alarm Settings ����������������������������������������������������������...

  • Page 3: What's In The Box

    What’s in the Box? Box Contents 1. Majority Huntingdon Music System 2. Remote Control 3. Power Adapter 4. Instructions Guide...

  • Page 4: Controls And Functions

    Controls And Functions Front View/Control Buttons 10 11 12 14 15 16 Disc Port Next 15. Play/Pause Display Screen Eject 16. Stop Remote Sensor 10. Preset 17. USB Port 1 Mode 11. Alarm 18. USB Port 2 Menu 12. Sleep 19.
  • Page 5 Controls And Functions Rear View 22 23 21. Antenna 22. 9V DC 23. On/Off...
  • Page 6 Controls And Functions Remote Control On/Standby Bluetooth - Press for Bluetooth mode Eject - Press to insert or remove disc CD - Press to switch to CD mode. DAB - Press to switch to DAB mode FM - Press to switch to FM mode AUX - Press to switch to AUX mode Volume (-) - Press to reduce volume VOL-...

  • Page 7: Support

    Support Support Thank you for your purchase of the Majority Huntingdon radio. Please follow the guidance of the manual to set up your new purchase and begin enjoying its features. If you require further assistance with your new radio, please contact our support team on the Majority website:...

  • Page 8: Instructions Guide

    Instructions Guide Navigation Settings Mode button: When the radio is switched on, press the button on the front of the unit to repeatedly switch between modes. Volume dial/Select: Rotate the dial clockwise or anticlockwise to change the volume. To make selections and confirm settings, press down the dial to select.

  • Page 9: Basic Operation

    Instructions Guide Basic Operation Please note all (Ref.) refer to Page 1 Controls and Functions mapping guide. Plug the connector into the back of the system labelled 9V DC (Ref.21) and the power supply into the mains. Ensure the antenna (Ref.23) is extended as far as possible so that you can rotate it which will enable you to get the best signal you can.

  • Page 10: Dab/Dab+ Radio

    Instructions Guide DAB/DAB+ Radio Press the ‘Mode’ button (Ref.4) multiple times on the unit to switch to DAB Radio. On first use it will automatically scan all stations and save them. To select the mode from the remote, press the ‘DAB’ button (Ref.5).
  • Page 11 Instructions Guide Prune Remove stations that are listed but unavailable. When in DAB mode, press and hold the ‘Stop’ button (Ref.16) on the remote and use the ‘Next’ (Ref.13) and ‘Previous’ (Ref.11) buttons to scroll through options. Highlight “Prune” and press the ‘Select’...
  • Page 12 Instructions Guide adding stations that were missed while auto tuning. Press and hold the ‘Stop’ button (Ref.16) on the remote and use the ‘Next’ (Ref.13) and ‘Previous’ (Ref.11) buttons to scroll through options. Select “Manual Tune” and press the ‘Select’ (Ref.18) button. Use the ‘Next’...

  • Page 13: Dab/Dab+ Preset Stations

    Instructions Guide DAB/DAB+ Preset Stations Store a preset DAB/DAB+ station Up to 20 stations can be preset for easy navigation and listening. To store a station that you are currently playing, it is best to be listening to the station. To preset your chosen station, press and hold the ‘Preset’...
  • Page 14 Instructions Guide Station Information for DAB/DAB+ Radio Press the ‘Info’ button (Ref.24) repeatedly to show the different programme information. DAB indication: Indicates DAB mode. Channel and Frequency: Displays the station’s transmission channel number and frequency. Bit Rate: The data rate which the signal is being transmitted. Bit Error Rate (BER): Provide details of the signal error rate.

  • Page 15: Fm Radio

    Instructions Guide FM Radio Press the ‘Mode’ button (Ref.4) multiple times on the unit and choose “FM” or press the ‘FM’ button (Ref.6) on the remote. The first time you do this, the FM frequency “87.5 MHz” will be displayed on the screen. Ensure that the antenna is fully extended so that the best signal is being received for the radio scan (Ref.22).
  • Page 16 Instructions Guide FM Scan Setting Choose between scanning strong and weak signals (All) or only the stations with strong signal (Only). Press and hold the ‘Stop’ button (Ref.16) on the remote to open Settings. Follow by using the Previous/Next buttons (Ref.11 to scroll through to “Scan Setting”...

  • Page 17: Fm Preset Stations

    Instructions Guide FM Preset Stations Up to 20 stations can be preset for easy navigation and listening. To store a station that you are currently playing, it is best to be listening to the station. To preset your chosen station, press and hold the ‘Preset’ (Ref.22) button until “Preset Store <1: (Empty)”...
  • Page 18 Instructions Guide Station Information for FM Radio Press the ‘Info/Menu’ button (Ref.24) repeatedly to show the different programme information. Programme Type: Displays a description of the type of programme provided by the broadcaster. Radio Text: Displays scrolling text information supplied by the broadcaster.

  • Page 19: Cd Player

    Instructions Guide CD Player To choose CD Mode, press through your choices using the ‘Mode’ button (Ref.4). The choices will be displayed on the front screen (Ref.2) – select “CD”. Alternatively press the ‘CD’ button on the remote (Ref.4). Insert the CD into the CD drive in the front of the unit. The CD will read automatically and start playing.
  • Page 20 Instructions Guide Program tracks into a preselected order Press the ‘Stop’ button (Ref.16) on the remote, then press the ‘Prog’ button (Ref.23) . The track number will flash on the front display (Ref.2). Change this number to your first required track using the number keys on the remote (Ref.28).
  • Page 21 Instructions Guide To cancel the playback and to continue listening to the track press the A/B button (Ref.29) a third time and “REP AB” will disappear from the display. How to remove the selected programming order Follow the above instructions but change the track number to ‘00’...

  • Page 22: Bluetooth Mode

    ‘Mode’ button (Ref.4) or select ‘Bluetooth’ on the remote control (Ref.2). The choices will be displayed on the front screen. Turn on Bluetooth on your phone and “Majority Huntingdon” will appear. Click on this to connect. When the unit makes a short sound, it has successfully connected.

  • Page 23: Aux-In And Usb Charging

    (Ref.4) on the unit repeatedly until “Aux Mode” displays or select the ‘Aux’ button on the remote (Ref.7). Begin playing music from your device and this will begin to play through the Majority Huntingdon speakers. Please ensure that the volume on your device is switched up. USB Connection When connected via a USB lead into the USB port, the system will charge your device.

  • Page 24: Alarm Settings

    Instructions Guide Alarm Settings Press the ‘Alarm’ button (Ref.11) on the remote. The hour digits for the alarm will flash. Use the previous/next buttons (Ref.11 ) on the remote to change the hour and press the ‘Select’ button (Ref.18) to confirm. Use the previous/next buttons (Ref.11 ) on the remote to change the duration of the alarm (15/30/45/60 or 90 mins) and...

  • Page 25: Sleep Setting

    Instructions Guide Sleep Setting This enables you to programme the radio to switch off at a specific time, up to 120 minutes from activation. In working mode, press the ‘Sleep’ button (Ref.21) on the remote control. Choose from: Off, 15 mins, 30 mins, 45mins, 60 mins or 90 mins by using the previous/next buttons (Ref.11 ) to scroll through the options.

  • Page 26: Settings: Time And Date

    Instructions Guide Settings: Time and Date The time will automatically update after the first use of DAB Radio. However, you can still set the time manually as follows: Ensure the unit is in standby. Press and hold the ‘Menu’ button (Ref.5) on the unit for a few seconds to open settings.

  • Page 27: Settings

    Instructions Guide Settings System Reset Press the ‘Menu’ button (Ref.20) on the remote control. Use the ‘Previous’ or ‘Next’ buttons (Ref.11 ) to scroll to “System Reset” and press the ‘Select’ button (Ref.18) on the remote control. The system will restore to factory settings. Language Setting Press the ‘Menu’...

  • Page 28: Additional Features

    Instructions Guide Additional Features Equaliser To change the Base or Treble levels press the “EQ” button on the remote control (Ref.27) multiple times to switch between the two. Once on your selected choice use the “Vol - “ button (Ref.8) or “Vol +”...

  • Page 29: Troubleshooting

    Troubleshooting Troubleshooting Observation Potential Cause/Solution No sound The station is not tuned in. Fine tune the station. The volume is set to a low position. Increase the volume. Headphones may be connected. Disconnect the headphones. Buttons are not Turn off the unit and turn on after a few seconds. working FM: Static sound Signal reception is low.

  • Page 30: Specifications

    Specifications Specifications DC 9V 3A Power Supply AC 100-240V 50/60Hz Mode Bluetooth AUX In DAB/DAB+ BAND III 5A-13F Radio Frequencies FM(87. 5MHz - 108MHz) Aerial Integral telescopic aerial Dimension (WxHxD) 26 x 37 x 13 cm Net Weight 2.3 Kg Warranty All products come with a standard 12 month warranty.

  • Page 31: Safety Information

    Safety Information ADDITIONAL WARNINGS 1. Read these instructions. 2. Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping or available for download at www.majorityradios.co.uk splashing and no objects filled with liquid, such as 3. Heed all Warnings vases, shall be places on the apparatus.
  • Page 33 www.majorityradios.co.uk...
