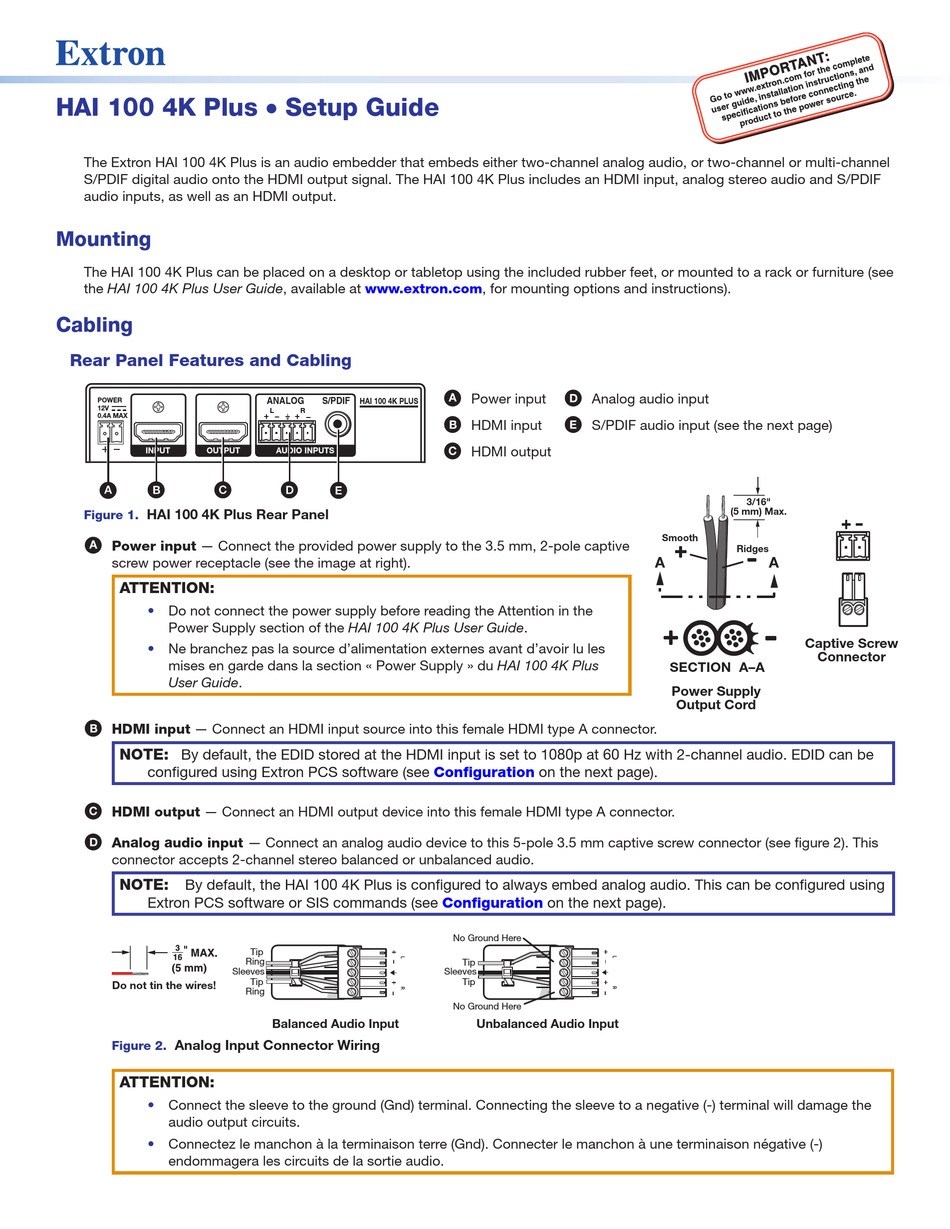

HAI 100 4K Plus • Setup Guide
The Extron HAI 100 4K Plus is an audio embedder that embeds either two-channel analog audio, or two-channel or multi-channel
S/PDIF digital audio onto the HDMI output signal. The HAI 100 4K Plus includes an HDMI input, analog stereo audio and S/PDIF
audio inputs, as well as an HDMI output.

Mounting

The HAI 100 4K Plus can be placed on a desktop or tabletop using the included rubber feet, or mounted to a rack or furniture (see
the HAI 100 4K Plus User Guide, available at www.extron.com, for mounting options and instructions).

Cabling

Rear Panel Features and Cabling

POWER
12V
0.4A MAX
S
INPUT
B B
A A
HAI 100 4K Plus Rear Panel
Figure 1.
A Power input — Connect the provided power supply to the 3.5 mm, 2-pole captive
screw power receptacle (see the image at right).
ATTENTION:
• Do not connect the power supply before reading the Attention in the
Power Supply section of the HAI 100 4K Plus User Guide.
• Ne branchez pas la source d'alimentation externes avant d'avoir lu les
mises en garde dans la section « Power Supply » du HAI 100 4K Plus
User Guide.
B HDMI input — Connect an HDMI input source into this female HDMI type A connector.
NOTE: By default, the EDID stored at the HDMI input is set to 1080p at 60 Hz with 2-channel audio. EDID can be
configured using Extron PCS software (see
C
HDMI output — Connect an HDMI output device into this female HDMI type A connector.
D Analog audio input — Connect an analog audio device to this 5-pole 3.5 mm captive screw connector (see figure 2). This
connector accepts 2-channel stereo balanced or unbalanced audio.
NOTE:
Extron PCS software or SIS commands (see
Do not tin the wires!

Analog Input Connector Wiring

Figure 2.
ATTENTION:
• Connect the sleeve to the ground (Gnd) terminal. Connecting the sleeve to a negative (-) terminal will damage the
audio output circuits.
• Connectez le manchon à la terminaison terre (Gnd). Connecter le manchon à une terminaison négative (-)
endommagera les circuits de la sortie audio.
ANALOG S/PDIF HAI 100 4K PLUS
L R
OUTPUT AUDIO INPUTS
C C D D
E E
By default, the HAI 100 4K Plus is configured to always embed analog audio. This can be configured using
Tip
Ring
Sleeves
Tip
Ring
Balanced Audio Input
A D
Power input Analog audio input
B HDMI input E S/PDIF audio input (see the next page)
C
HDMI output
Configuration on the next page).
Configuration on the next page).
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Unbalanced Audio Input
3/16"
(5 mm) Max.
Smooth
Ridges
A A
Captive Screw
Connector
SECTION A–A
Power Supply
Output Cord
