Summary of Contents for Extron electronics HAI 100 4K Plus
- Page 1 User Guide HDMI HAI 100 4K Plus HDMI Audio Embedder 68-3110-01 Rev. A 12 20...
- Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano WARNING: This symbol, , when used on the product, is intended to AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad alert the user of the presence of uninsulated dangerous voltage within avvertire l’utente della presenza di tensione non isolata pericolosa the product’s enclosure that may present a risk of electric shock.
- Page 3 安全記事 • 繁體中文 안전 지침 • 한국어 警 告 경고: 이 기호 若產品 上使 用此 符 號 ， 是 為了提 醒 使 用者，產品 機 殼內 存 在 著 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 可能會導致觸電之風險的未絕緣危險電壓。 접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 경고합니다.
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 5: Table Of Contents
Contents Introduction Reference Information ............1 ........16 About the HAI 100 4K Plus HDMI Audio Mounting ............16 Embedder ............1 Tabletop Placement ........16 Features ............. 2 Rack Mounting ..........16 Under-desk and Furniture Mounting ....17 Panels and Cabling .......... -
Page 6: Introduction

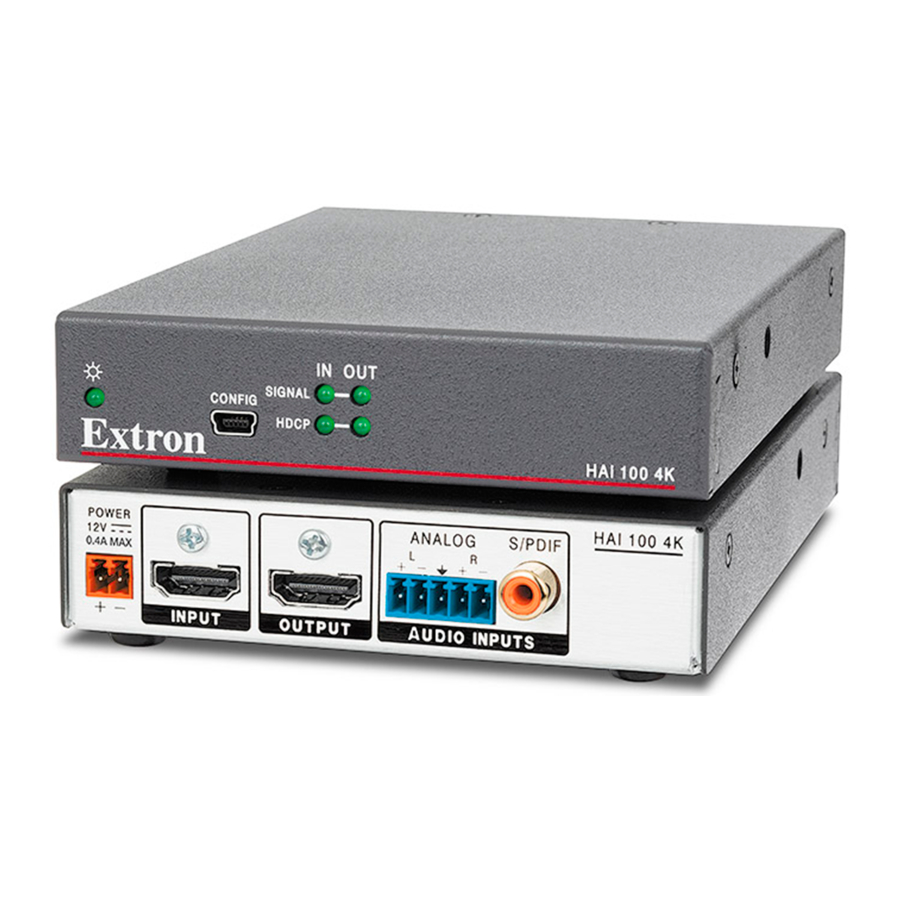

S/PDIF digital audio onto the HDMI output signal. The HAI 100 4K Plus includes an HDMI input, analog stereo audio and S/PDIF audio inputs, as well as an HDMI output. It is HDCP compliant and supports data rates up to 18 Gbps. The HAI 100 4K Plus is compatible with video resolutions up to 4K. -
Page 7: Features
Features • Embeds two-channel analog or S/PDIF digital audio onto an HDMI signal — The HAI 100 4K Plus offers the flexibility to embed separate analog or digital audio signals onto an HDMI signal. • Supports two-channel stereo analog audio, or two-channel or multi-channel S/PDIF digital audio —... -
Page 8: Panels And Cabling
INPUT (see page 5) HAI 100 4K PLUS INPUT OUTPUT AUDIO INPUTS OUTPUT (see page 5) ANALOG (see page 5) Figure 3. HAI 100 4K Plus Rear Panel S/PDIF (see page 5) HAI 100 4K PLUS • Panels and Cabling... - Page 9 National Electrical Code ANSI/NFPA 70, article 725, et au Canadian Electrical Code, partie 1, section 16. La source d’alimentation ne devra pas être fixée de façon permanente à une structure de bâtiment ou à une structure similaire. HAI 100 4K PLUS • Panels and Cabling...
- Page 10 (see figure 5). This connector accepts 2-channel stereo balanced or unbalanced audio. NOTE: By default, the HAI 100 4K Plus is configured to always embed analog audio. This can be configured using Extron PCS or SIS commands (see...
-
Page 11: Configuration
Configuration The following HAI 100 4K Plus features can be configured to ensure that the sink devices can handle the signal provided. Use SIS Commands (see page 9) to make these configurations. This section provides information on: • Audio Insertion •... -
Page 12: Tmds Output Format
EDID Minder manages the EDID stored at the HDMI input and presented to the source device. The HAI 100 4K Plus scans and monitors the EDID of the sink device connected to the HDMI output. It determines the interface (DVI or HDMI) and color depth, and uses that information to adjust the signal so that it is compatible with the output device. -
Page 13: Input
HDCP Input The HAI 100 4K Plus input authenticates HDCP with the source device if the source requires HDCP encryption. The authentication process is repeated whenever the stored EDID is changed or updated. HDCP support can be disabled using the... -
Page 14: Sis Commands
Command and response examples are shown throughout the table. Symbols are used throughout the table to represent variables in the command and response fields. Use the ASCII to HEX conversion table on the next page with the command and response table. HAI 100 4K PLUS • SIS Commands... - Page 15 5 = HDMI YUV 4:2:2 Limited X& EDID data as 128 or 256 bytes of HEX data (text representation) Native resolution and refresh rate from currently assigned EDID For example: 1920x1080 @ 60 Hz HAI 100 4K PLUS • SIS Commands...
- Page 16 3 = HDCP sink detected and encrypted X1& Output 5V mode: = Auto 5 V is enabled when a source with 5 V is present. Otherwise, it is off. = 5 V is always enabled (default). HAI 100 4K PLUS • SIS Commands...
-
Page 17: Command And Response Table For Sis Commands
= Encrypt as required by input. Continuous trials for HDMI sinks. Attempt for = Output HDCP mode 10 seconds on DVI sinks and then fail. (default = = Always encrypt. Continuous trials for HDMI sinks. Attempt for 10 seconds on DVI sinks and then fail HAI 100 4K PLUS • SIS Commands... - Page 18 = Output color bit depth = force 8-bit/color X1& = Auto (5 V is enabled when a source with 5 V is present; otherwise, it is off.) = Output 5V mode = 5 V always enabled (default) HAI 100 4K PLUS • SIS Commands...
- Page 19 = on, enabled, or detected X& = EDID data as 128 or 256 bytes of HEX data (text representation) = Native resolution and refresh rate from currently assigned EDID. (For example: 1920x1080 @60 Hz) HAI 100 4K PLUS • SIS Commands...
- Page 20 (-). No blank or space characters are permitted as part of a name. The first character must a letter, and the last character must not be a minus sign/hyphen. The factory default is HAI-100-4K-PLUS HAI 100 4K PLUS • SIS Commands...
-
Page 21: Reference Information
Rack Mounting Procedure These units can be mounted on an optional rack systems listed on the website (see www.extron.com). To mount the unit on a rack shelf, follow the instructions provided with the shelf accessories. HAI 100 4K PLUS • Reference Information... -
Page 22: Under-Desk And Furniture Mounting
Back of the Rack Mounting Procedure The HAI 100 4K Plus can be mounted to the rear of a rack using an optional back of rack mounting kit (see www.extron.com). The kit allows the product to be vertically mounted to the front or rear rack supports and face either the front or the rear of the rack. -
Page 23: Using Pcs
Using PCS Connect a control PC to the HAI 100 4K Plus front panel Config port (see figure on page 3). Open the PCS software on the control PC. Click Start > Programs > Extron Electronics > Extron Product Configuration Software > Extron Product Configuration Software. - Page 24 Extron Warranty Extron warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/ or materials, Extron will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to: USA, Canada, South America,...
