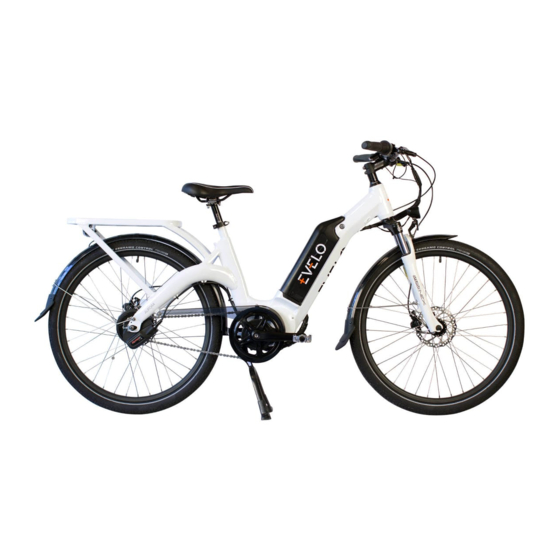

The focus of this document is to assist with the assembly of your new EVELO
Aurora. The scope is intentionally narrow -- The "User Guide" that was
included with your bike covers a much broader spectrum of topics: fit
Unboxing Your Aurora
1. Begin unboxing the bike by cutting the
banding then opening the box. Use caution
regarding the staples as they can be very
sharp.
2. Remove the small boxes.
3. The easiest way to get the bike out of the
box is to lie the box down on its side and
then slide it out. See image ----->
4. Remove packaging including zip ties.
Caution: sometimes the zip ties are used to
hold cables or wires in place. A good indi-
cator is if the zip tie is touching a painted
surface of the bike—those should remain in
place.
5. Empty all the boxes so you know what
you are working with.
Assembly of EVELO Aurora
adjustments, battery care, controls etc.
Our Team is here to help 7 days a week!
contact@evelo.com
877-991-7272
Feel Free to reach out!
1
Advertisement
Table of Contents
Related Manuals for Evelo Aurora
Summary of Contents for Evelo Aurora
- Page 1 Assembly of EVELO Aurora The focus of this document is to assist with the assembly of your new EVELO Aurora. The scope is intentionally narrow -- The “User Guide” that was included with your bike covers a much broader spectrum of topics: fit adjustments, battery care, controls etc.
- Page 2 Aurora – Install Stem 1. As viewed from above, rotate the steering assembly clockwise so that the cables aren’t wrapped around the frame and the bridge is facing forward. Both brake calipers should be on the left hand side of the bike.
- Page 3 6. Looking from above rotate the stem if need- ed until it is straight in relation to the fork. 7. Using a 4 mm Allen key, tighten the two stem bolts. Install Handlebars 1. The handlebars are clamped to the stem with four bolts and a faceplate.
- Page 4 Install fender and headlight (cont.) 5. On the fork legs there are two bolts near the bottom. Remove those. 6. Pass the bolt through the wire loop of the fend- er strut and thread the bolt back into the fork. 7.
- Page 5 Install Pedals Installation of the pedals requires a 15 mm wrench. It is important to note that the pedals are threaded differently. The right pedal will screw in clockwise, and the left pedal will screw in counterclockwise. There is an L and an R stamped into the end of each pedal for refer- ence.
- Page 6 It is located on the headtube of your bike as shown: There is considerable additional information in your “User Guide”. Of course, if you ever have questions, our team is ready to help! contact@evelo.com 877-991-7272...
