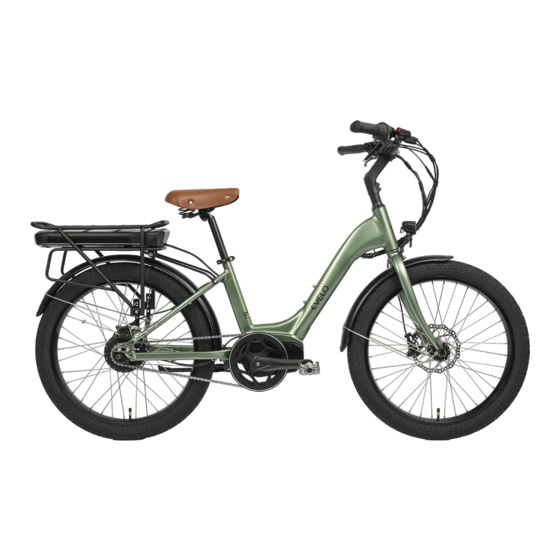

EVELO Galaxy SL Assembly
The focus of this document is to assist with the assembly of your new EVELO
Galaxy SL. The scope is intentionally narrow – The "User Guide" that was
included with your bike covers a much broader spectrum of topics: fit
adjustments, battery care, controls etc.
Watch the Assembly
Our Team is here to help 7 days a week
contact@evelo.com | 877-991-7272
Instructions Video
Feel free to reach out!
Advertisement
Related Manuals for Evelo Galaxy SL
Summary of Contents for Evelo Galaxy SL

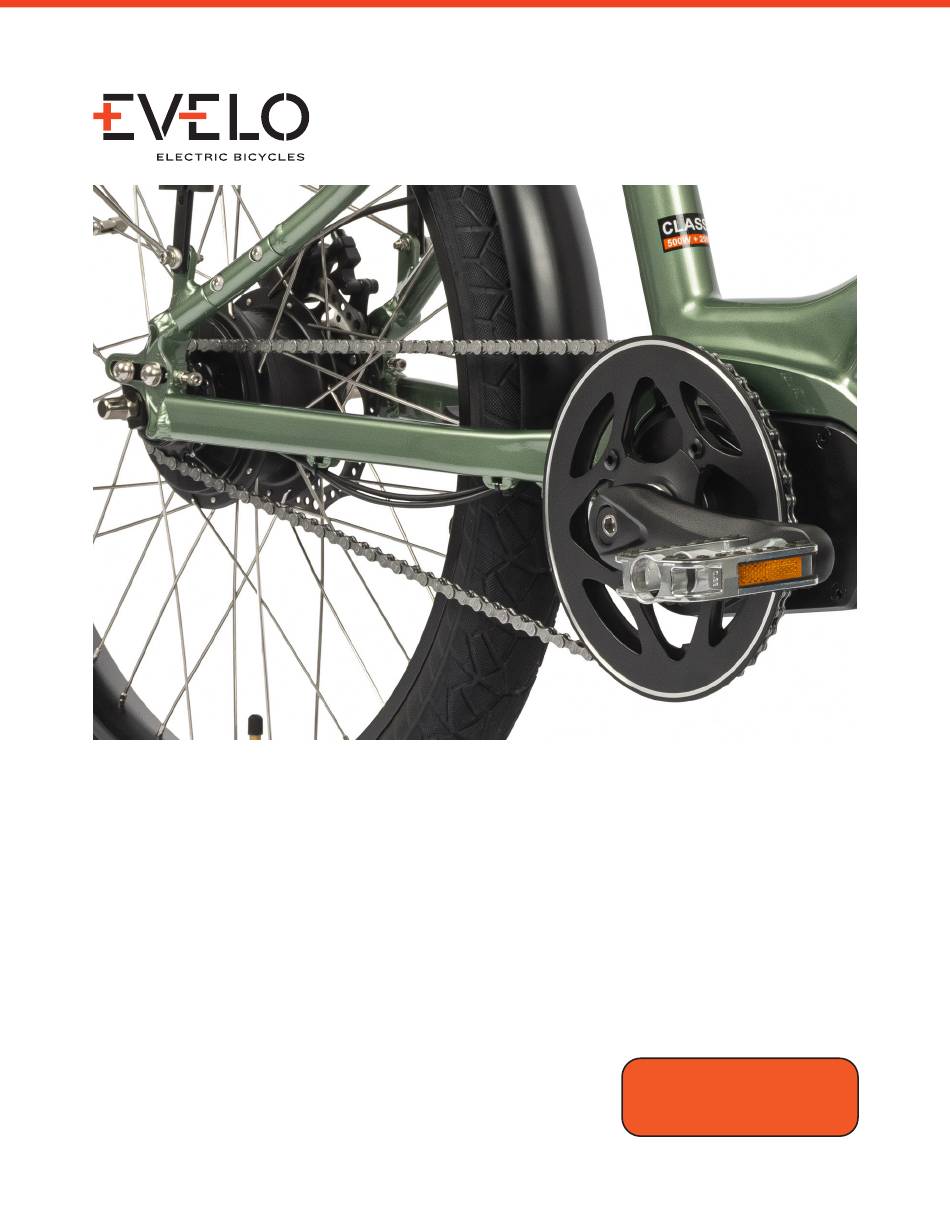

- Page 1 EVELO Galaxy SL Assembly The focus of this document is to assist with the assembly of your new EVELO Galaxy SL. The scope is intentionally narrow – The “User Guide” that was included with your bike covers a much broader spectrum of topics: fit adjustments, battery care, controls etc.
- Page 2 Carefully remove all packing material from Tools and User Guides will be in the small bike, avoid using sharp objects as to protect black Evelo box. The pedals will be in a the paint. small cardboard box. ASSEMBLY OF EVELO GALAXY SL...
- Page 3 Connect headlight to the bike’s wiring harness. Line up the arrows on each half of the connector and press them together. When connected, the red will be completely covered. Attach headlight and fender assembly to fork. Position the fender as high up as possible and tighten the bolt and nut. ASSEMBLY OF EVELO GALAXY SL...
- Page 4 Remove pad spacer from the brake if installed. need to just get it started. It may be red, yellow, orange, or black. Lower the kickstand so the bike will hold itself Slide the wheel into the fork. upright. ASSEMBLY OF EVELO GALAXY SL...
- Page 5 Remove the fender mounting bolt/washer Mount fender strut to right side of the fork with from the right side of the fork. the bolt and washer as shown. Repeat on the left side of the bike. ASSEMBLY OF EVELO GALAXY SL...
-
Page 6: Install Handlebars
Replace faceplate and the 4 screws on top Place handlebars in stem cradle. of handlebars and tighten bolts loosely. Center the handlebar logo with the stem and Tighten all four screws to clamp handlebar in set grips roughly level. place. ASSEMBLY OF EVELO GALAXY SL... - Page 7 Rotate the display forward to access the headset preload bolt, and loosen the bolt. Align handlebars to front wheel then snug up the headset preload bolt, so that the spacers below the stem do not rotate easily. ASSEMBLY OF EVELO GALAXY SL...
- Page 8 Install Handlebars and Adjust Saddle Tighten both stem clamping bolts then rotate the display back down. Open the seapost quick release. Set the saddle height where it is comfortable, then close the quick release. ASSEMBLY OF EVELO GALAXY SL...
-
Page 9: Install Pedals
It is important to note that the pedals are threaded differently. The right pedal will be on the same side as the chain and screws in clockwise. The left pedal goes on the side without the chain and screws in counter- clockwise. ASSEMBLY OF EVELO GALAXY SL... -
Page 10: Use Of Battery
Turn the key clockwise to lock the battery in the handlebars. place and counter-clockwise to unlock it. The battery is heavy, please be careful. When reinstalling, push the battery into place firmly. Power up the bike and you’re ready to ride! ASSEMBLY OF EVELO GALAXY SL... -
Page 11: Serial Number Location
Serial Number Location To register your bike on our website, you will need to record the serial number. It is located on the headtube of your bike, just above the front fork. ASSEMBLY OF EVELO GALAXY SL... - Page 12 There is considerable additional information in your “User Guide”. Of course, if you ever have questions, our team is ready to help! Our Team is here to help 7 days a week! contact@evelo.com | 877-991-7272 Feel free to reach out!
