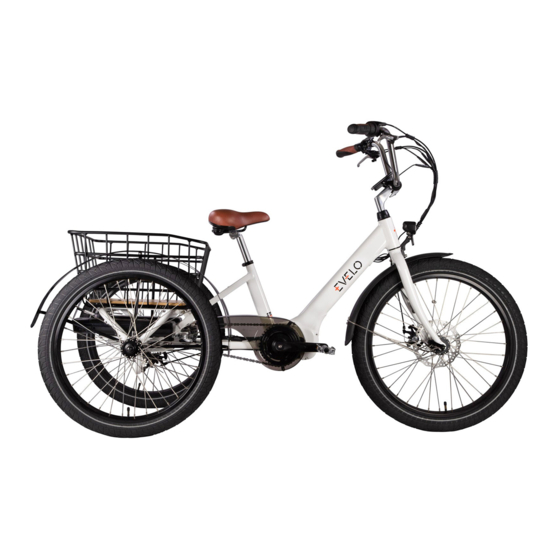

Assembly of Evelo Compass
The focus of this document is to assist with the assembly of your new EVELO Delta X.
The scope is intentionally narrow – The "User Guide" that was included with your bike
covers a much broader spectrum of topics: fit adjustments, battery care, controls etc.
Our Team is here to help 7 days a week!
Watch the Assembly
contact@evelo.com | 877-991-7272
Instructions Video
Feel Free to reach out!

Advertisement

loading
Need help?

Need help?

Do you have a question about the Compass and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Evelo Compass

Summary of Contents for Evelo Compass

  • Page 1 Assembly of Evelo Compass The focus of this document is to assist with the assembly of your new EVELO Delta X. The scope is intentionally narrow – The “User Guide” that was included with your bike covers a much broader spectrum of topics: fit adjustments, battery care, controls etc.
  • Page 2 Carefully remove all packing material from Tools and User Guides will be in the small bike, avoid using sharp objects as to protect black Evelo box. The Pedals will be in a the paint. small cardboard box. For the purpose of assembly, carefully lay the bike down on its side.
  • Page 3 Disassemble to remove the stack of spacers. Remove screws in frame surrounding rear axle. Hold fender support in position and replace screws. Attach nut and tighten Position Spacers between fender support and basket. with wrench. ASSEMBLY OF EVELO COMPASS...
  • Page 4 Repeat process for third fender support. Remove screws, position fender support, replace screws. Unscrew nut at end of Hold fender in position and replace screw and nut. Tighten using 3mm Allen Wrench and 8mm Box Wrench. fender support. ASSEMBLY OF EVELO COMPASS...
  • Page 5 Repeat to attach fender to the other supports. Repeat to attach fender to the other supports. The outside nut is a backwards thread. Rotate Remove second nut on axle, turn clockwise to remove. counter-clockwise to remove. ASSEMBLY OF EVELO COMPASS...
  • Page 6 Remove axle cover and cut plastic tie. Make sure the metal rectangle stays seated Note the recession inside the wheel’s hub. in place during wheel installation. Put wheel in place, aligning recession with metal bar. ASSEMBLY OF EVELO COMPASS...
  • Page 7 Replace nut and tighten clockwise. Add thread locker to these threads before installing cap nut. Replace nut and tighten counter-clockwise. Repeat steps for the other side. Remove the screw in the front fork. Remove black spacer as well. ASSEMBLY OF EVELO COMPASS...
  • Page 8 Thread headlight and fender support onto screw. Insert spacer between headlight and fender support. Replace nut and tighten. Remove bolts from each side of fork. Attach lower fender support struts. ASSEMBLY OF EVELO COMPASS...
  • Page 9 Remove black cap from front wheel skewer. Leave the inner from fork. spring in place. Insert skewer through front wheel Replace cap and spring, tighten partially. assembly as shown. Put front wheel into place. Tighten and lock with lever. ASSEMBLY OF EVELO COMPASS...
  • Page 10 Screw pedals into crank arms. It is important to note that the pedals are threaded differently. The right pedal screws in clockwise and the left pedal screws in counter-clockwise. right pedal left pedal Two sets of keys are attached to the underside of Carefully turn the bike the bike. upright. ASSEMBLY OF EVELO COMPASS...
  • Page 11 Attach cap to handlebar base. Remove plastic cover from handlebar stem. Once aligned, tighten bolt to secure Insert handlebar stem and align with front handlebars. Make sure this bolt is extra wheel. tight! Adjust the seat height. ASSEMBLY OF EVELO COMPASS...
  • Page 12 The brake lock will keep the bike from moving. Flip the power switch on the bottom of the battery. Power up and you’re ready to ride! ASSEMBLY OF EVELO COMPASS...

  • Page 13: Serial Number Location

    Serial Number Location To register your bike on our website, you will need to record the serial number. It is located on the headtube of your bike, just above the front fork. ASSEMBLY OF EVELO COMPASS...
  • Page 14 There is considerable additional information in your “User Guide”. Of course, if you ever have questions, our team is ready to help! Our Team is here to help 7 days a week! contact@evelo.com | 877-991-7272 Feel Free to reach out!
