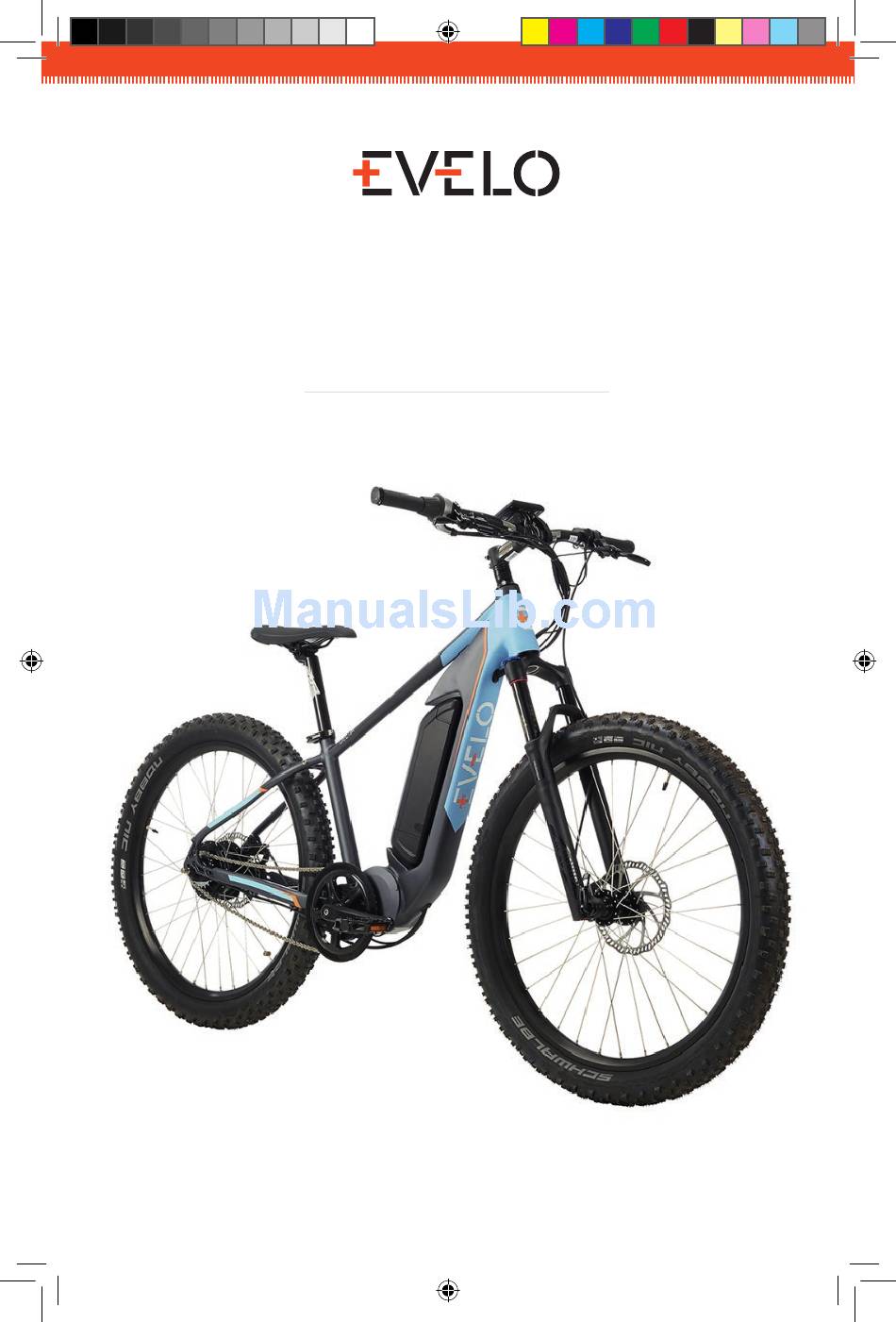

- Page 1 D ELT A OWNER’S MANUAL Important Safety and Product Information EVELO.COM delta_manual_final_single.indd 1 12/06/2017 14:11...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome! Contact Information Unboxing Registration Warranty Battery Care and Maintenance Assembly Riding Your EVELO Electric Bicycle Maintenance Troubleshooting EVELO.COM delta_manual_final_single.indd 2 12/06/2017 14:11... -
Page 3: Welcome
Proper assembly is vital to the safe operation of your bicycle, so seek professional assistance if you are unable to complete the assembly of your bicycle as outlined in this manual. The Delta model is recommended for use by riders weighing 350 pounds (159 kilograms) or less. CONTACT INFORMATION Your enjoyment of —... -
Page 4: Unboxing
Some smaller parts are shipped in the box containing the charger—be sure to open that box prior to beginning assembly. Included with your bike are the following: • EVELO Owner’s Manual • Keys • Left + Right Pedals •... -
Page 5: Registration
The frame’s serial number is located on the head tube, just above the front fork. Please note that your keys are unique to your bicycle and EVELO cannot provide exact replacements. We recommend using one key for day to day use, and storing the other. -
Page 6: Warranty
This warranty applies only to the original registered owner of the EVELO bicycle and is not transferable. This limited warranty does not apply to normal wear and tear, malfunctions, or failures due to abuse, neglect, improper repair, improper maintenance, alteration, modification, accidents, or other improper use. - Page 7 For warranty issues, EVELO will cover the cost of labor involved handling the warranty service within the 30-day period after purchase. To receive this service, the customer should contact EVELO directly, and we will make the necessary arrangements. If a part or component is faulty, email contact is preferred, along with a video or photo of the faulty part.
-
Page 8: Battery Care And Maintenance
BATTERY CARE & MAINTENANCE The battery provided with your EVELO Electric Bicycle is a high-quality unit that requires very little from the user in terms of care. However, a few things are worth noting with respect to any Lithium Ion battery. - Page 9 Charging: 32 degrees to 113 degrees F (0 degrees to 45 degrees C) Discharging and Storage: -4 degrees to 140 degrees F (-20 degrees to 60 degrees C) EVELO.COM delta_manual_final_single.indd 9 12/06/2017 14:11...
-
Page 10: Assembly
ASSEMBLY OF YOUR EVELO ELECTRIC BICYCLE If you do not have the ability or skill to assemble the bicycle yourself, please take it to a NOTE local bike shop for professional assembly. Our Customer Service Team can help you with the process if needed. Tools to complete the job are included, and some of the smaller pieces are packed inside the charger box to prevent loss. - Page 11 Tension is set at the factory, but if you feel it is insufficient, contact us at 877-991-7272, or search “Maxel” on our website: http://support.evelo.com/support/solutions ST E P 2 Align the stem...
- Page 12 Tighten the “L” pedal COUNTER-CLOCKWISE with a 15mm wrench or the wrench provided. FIT ADJUSTMENTS Many parts of your new EVELO Electric Bicycle can be customized for a personalized fit. Seat Adjustment The seat is easily adjusted up or down by flipping the quick-release lever that clamps the post into the bike.
- Page 13 Front Shock The Delta is offered with 2 different front shock options. Adjustments can be made to fine tune performance for your needs.
-
Page 14: Riding Your Evelo Electric Bicycle
RIDING YOUR EVELO ELECTRIC BICYCLE PRE-RIDE CHECKLIST Carry out this pre-ride checklist before EVERY RIDE! Make sure the tires are properly inflated. All bicycle tires gradually lose air over time, and this can affect handling, range, and puncture-resistance. Are the “Quick Release” levers on the front wheel and seat tight? Check both wheels for broken spokes. - Page 15 Full instructions for your display panel are on our website http://support.evelo.com/ support/solutions (Search “Delta Display”) , but some of the most basic functions are listed here for your convenience. • To turn the bike on and off, press and hold the MODE button for about 2 seconds.
- Page 16 The throttle is on the right side of the handlebars and is actuated by depressing the lever. When the bike is powered on, pressing the throttle provides power to the EVELO.COM delta_manual_final_single.indd 16 12/06/2017 14:11...
- Page 17 This is a safety feature. ACHIEVING THE BEST PERFORMANCE FROM YOUR EVELO ELECTRIC BICYCLE THE MID-DRIVE MOTOR One of the special features of your new bicycle is its mid-drive motor. This design allows the motor, as well as the rider, to take advantage of gear changes in the shifting system, improving efficiency.
- Page 18 RIDING IN THE RAIN EVELO Electric Bicycles are designed so that you can operate them in rainy weather. Factory-level design elements keep the electrical components well-protected and nearly all the electrical connections are located within the frame.
- Page 19 Avoid road hazards. Watch for and avoid potholes, drain grates, railroad tracks, loose road material, and other hazards. • Use both the front and the rear brakes together for best performance. Using ONLY the rear will significantly increase your stopping distance. EVELO.COM delta_manual_final_single.indd 19 12/06/2017 14:11...
-
Page 20: Maintenance
If your brakes are worn beyond this adjustment, either take the bike to a local bike shop for professional service, or contact EVELO for additional instructions. -
Page 21: Troubleshooting
TROUBLESHOOTING If you experience difficulty with your EVELO Electric Bicycle, consult the following list. If you do not find the problem on this list, contact our Customer Service Team, and we will work with you to identify the source of the problem and help with a solution. - Page 22 EVELO.COM delta_manual_final_single.indd 22 12/06/2017 14:11...
- Page 23 EVELO.COM delta_manual_final_single.indd 23 12/06/2017 14:11...
-
Page 24: Evelo.com
Questions? Get In Touch: Email: contact@evelo.com Call: 877-991-7272 EVELO.COM EVELO.COM delta_manual_final_single.indd 24 12/06/2017 14:11...
