Assembly of Evelo Aurora Limited
The focus of this document is to assist with the assembly of your new EVELO Delta X.
The scope is intentionally narrow – The "User Guide" that was included with your bike
covers a much broader spectrum of topics: fit adjustments, battery care, controls etc.
Our Team is here to help 7 days a week!
Watch the Assembly
contact@evelo.com | 877-991-7272
Instructions Video
Feel Free to reach out!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Evelo Aurora Limited
Summary of Contents for Evelo Aurora Limited

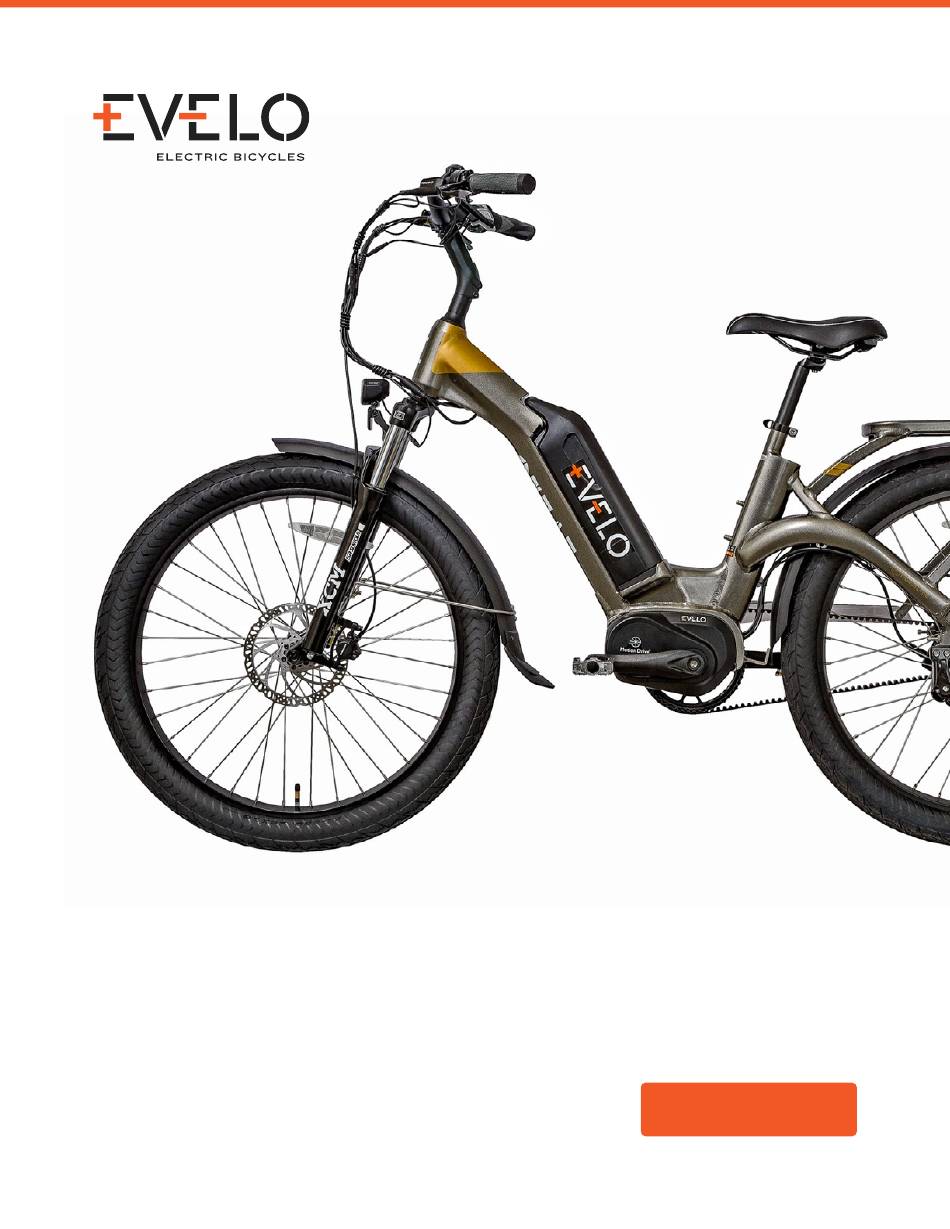

- Page 1 Assembly of Evelo Aurora Limited The focus of this document is to assist with the assembly of your new EVELO Delta X. The scope is intentionally narrow – The “User Guide” that was included with your bike covers a much broader spectrum of topics: fit adjustments, battery care, controls etc.
- Page 2 Carefully remove all packing material from Tools and User Guides will be in the small bike, avoid using sharp objects as to protect black Evelo box. The Pedals will be in a the paint. small cardboard box. ASSEMBLY OF EVELO AURORA HUB...
-
Page 3: Install Front Wheel
Install Front Wheel Remove the black bolt in the front fork. Put Front Wheel into place. Replace black bolt and tighten. ASSEMBLY OF EVELO AURORA HUB... -
Page 4: Install Handlebars
Remove the screws on top of the stem faceplate. Keep Track of the parts. Place handlebars in cradle, aligned with center. Replace cover and screws on top of handlebars. Loosen bolts along stem and align handlebars. Re-tighten bolts on sides of stem. ASSEMBLY OF EVELO AURORA HUB... - Page 5 Install Fender and Headlight Remove bolts on back side of fork. Hold fender in place above front wheel. Place Headlight between fork and fender. Replace screws on front fork to attach fender. ASSEMBLY OF EVELO AURORA HUB...
- Page 6 Install Fender and Headlight Remove bolts from each side of fork and attach lower fender support struts. ASSEMBLY OF EVELO AURORA HUB...
-
Page 7: Install Pedals
There is an L and an R stamped into the end of each pedal for reference. Screw pedals into crank arms. It is important to note that the pedals are threaded differently. The right pedal screws in clockwise and the left pedal screws in counter-clockwise. right pedal left pedal ASSEMBLY OF EVELO AURORA HUB... -
Page 8: Use Of Battery
Use of Battery Click Battery into place. Power up and you’re ready to ride! ASSEMBLY OF EVELO AURORA HUB... -
Page 9: Serial Number Location
Serial Number Location To register your bike on our website, you will need to record the serial number. It is located on the headtube of your bike, just above the front fork. ASSEMBLY OF EVELO AURORA HUB... - Page 10 There is considerable additional information in your “User Guide”. Of course, if you ever have questions, our team is ready to help! Our Team is here to help 7 days a week! contact@evelo.com | 877-991-7272 Feel Free to reach out!
