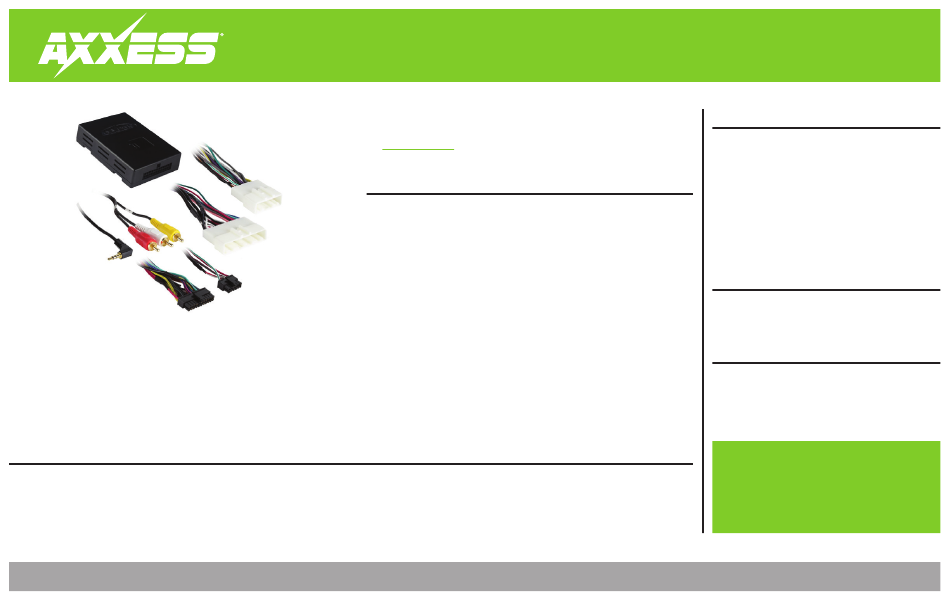

INTERFACE COMPONENTS
• NITO-01 interface
• NITO-01 harness
• 16-pin harness with stripped leads
• AX-CAM6V 12-volt to 6-volt converter
AxxessInterfaces.com
Maxima Amplifier Interface 2016-up
Nissan
Visit
AxxessInterfaces.com
for more detailed information about the product and up-to-date
vehicle specific applications
INTERFACE FEATURES
• Provides accessory power
(12-volt 10-amp)
• Retains the factory AUX-IN jack
• Provides NAV outputs (parking
• Used in amplified applications
brake, reverse, speed sense)
• Adjustable gain control for
• Pre-wired ASWC-1 harness
(ASWC-1 sold separately)
• High level speaker input
• Retains the factory backup
• Retains balance
camera
• Micro-B USB updatable
• Retains the audible parking
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming .........................................................3
Adjustments ...........................................................3
sensor warning
Extra Settings .........................................................4
overall volume
OPTIONAL ACCESSORIES
Steering Wheel Control Interface: ASWC-1
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
Attention!
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
NITO-01
(sold separately)
Let the vehicle sit with the key
REV. 11/19/18 INSTNITO-01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axxess NITO-01
Summary of Contents for Axxess NITO-01
- Page 1 INTERFACE COMPONENTS Attention! Let the vehicle sit with the key out of the ignition for a few minutes before • NITO-01 interface removing the factory radio. When testing the • NITO-01 harness aftermarket equipment, ensure that all factory • 16-pin harness with stripped leads equipment is connected before cycling the key to ignition.
- Page 2 Please reference “Reverse camera operation” on page 4 if retaining the camera. Purple, Purple/Black, Light Green, White, White/Black 12-pin ASWC-1 harness & 3.5mm jack: From the NITO-01 harness to the aftermarket radio: • This 12-pin ASWC-1 harness & 3.5mm jack are to be used with an ASWC-1 (sold separately) • Connect the Black wire with a ring terminal to chassis ground.
- Page 3 • Connect the NITO-01 harness to the wiring harness in the vehicle. • Once at the desired level, audio level adjustment is complete. Note: If using the ASWC-1, connect it after you program and test the NITO-01, with the key in the off position.
- Page 4 The SOURCE button will not function while in this screen. Metra/Axxess Tech Support. Reverse camera operation • While the vehicle in reverse, the backup camera and 360-view will both be displayed on the radio screen. This is generated by the vehicle itself;...
- Page 5 COMPONENTES DE LA INTERFASE ¡Atención! Deje que el vehículo se asiente con la llave fuera del encendido durante unos • Interfase NITO-01 minutos antes de retirar la radio de fábrica. Al • Arnés NITO-01 probar el equipo de posventa, asegúrese de que • Arnés de 16 pins con conectores pelados todo el equipo de fábrica esté...
- Page 6 • Si se retiene la cámara de reversa de fábrica, conecte el conector RCA amarillo a la entrada de cámara de reversa. Por favor, consulte “Operación de cámara reversa” en la página 4 si Desde el arnés NITO-01 en el radio de mercado secundario: retiene la cámara • Conecte el cable negro con una terminal de aro al chasís.
- Page 7 • Una vez que haya llegado al nivel deseado, el ajuste del nivel de audio está completo. Nota: Si va a utilizar el ASWC-1, conéctelo después de programa y probar el NITO-01 con la llave en la posición de apagado.
- Page 8 • Mientras el vehículo está en reversa, la cámara de reversa y la vista en 360 se mostrarán en la pantalla de la radio. Esto es generado por el con el soporte técnico de Metra / Axxess. propio vehículo; Un módulo de fábrica independiente controla la vista.
