Westin 21-23240 Installation Instructions

AUTOMOTIVE PRODUCTS,
ITEM QUANTITY
1 2
2 2
3 2
4 2
5 12
6 12
7 12
8 12
9 12
10 12
11 12
12 24
13 12
14 6
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Pro Traxx 4
Pro Traxx 5
brackets similar
ITEM 2
Care Instructions

REGULAR WAXING IS RECOMMENDED. DO NOT USE ANY TYPE OF POLISH OR WAX THAT MAY CONTAIN ABRASIVES.

STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES.

GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER.
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
ECO #: W16-0113
P.N.: 75-3032-RevD

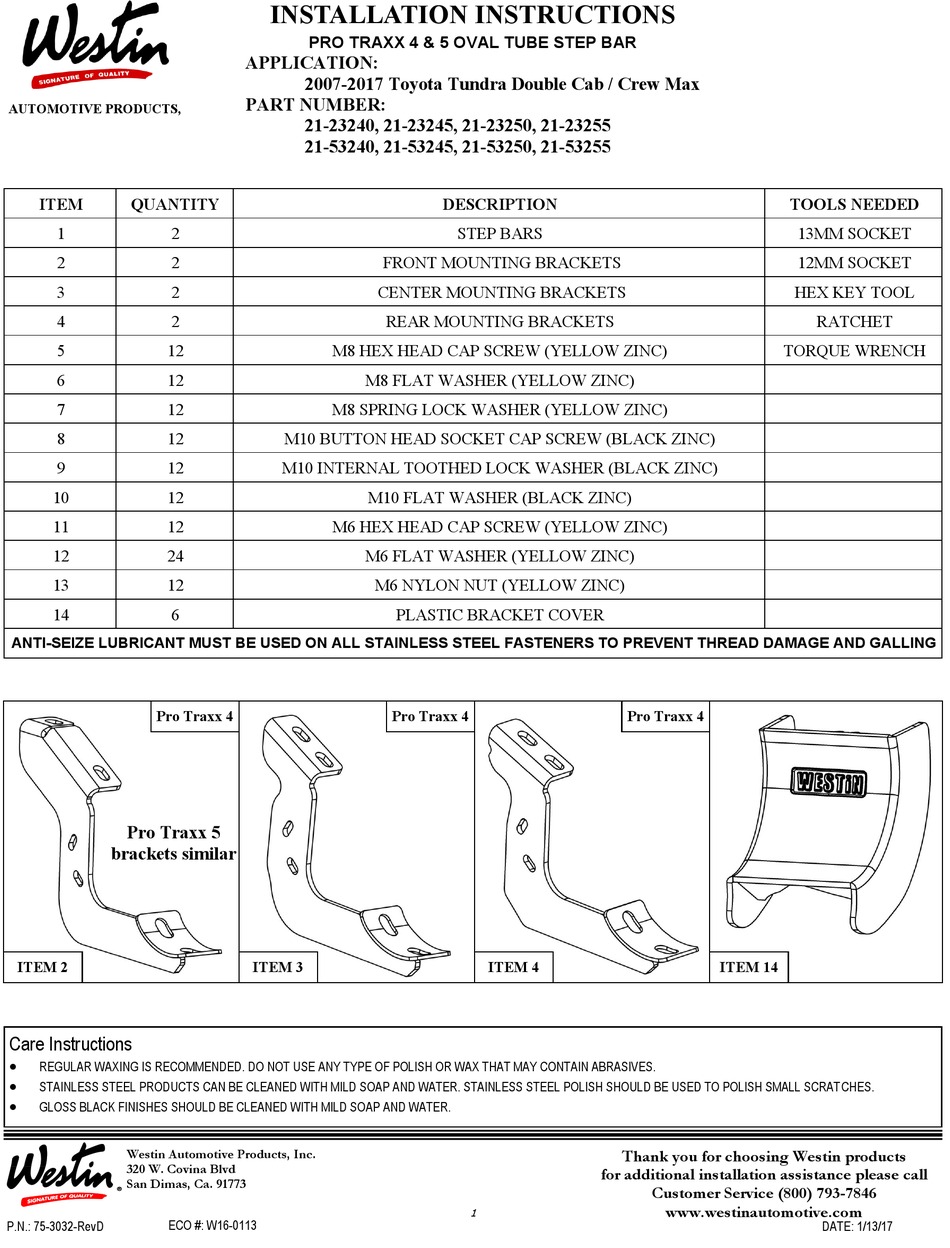

INSTALLATION INSTRUCTIONS

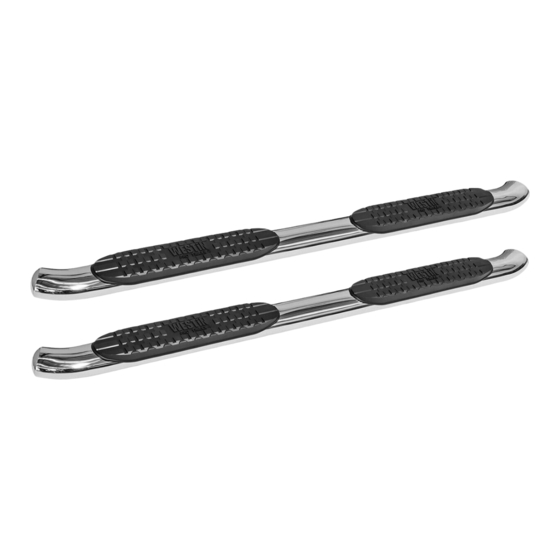

PRO TRAXX 4 & 5 OVAL TUBE STEP BAR
APPLICATION:
2007-2017 Toyota Tundra Double Cab / Crew Max
PART NUMBER:
21-23240, 21-23245, 21-23250, 21-23255
21-53240, 21-53245, 21-53250, 21-53255
FRONT MOUNTING BRACKETS
CENTER MOUNTING BRACKETS
REAR MOUNTING BRACKETS
M8 HEX HEAD CAP SCREW (YELLOW ZINC)
M8 FLAT WASHER (YELLOW ZINC)
M8 SPRING LOCK WASHER (YELLOW ZINC)
M10 BUTTON HEAD SOCKET CAP SCREW (BLACK ZINC)
M10 INTERNAL TOOTHED LOCK WASHER (BLACK ZINC)
M10 FLAT WASHER (BLACK ZINC)
M6 HEX HEAD CAP SCREW (YELLOW ZINC)
M6 FLAT WASHER (YELLOW ZINC)
M6 NYLON NUT (YELLOW ZINC)
PLASTIC BRACKET COVER
Pro Traxx 4
ITEM 3
DESCRIPTION
STEP BARS
ITEM 4
Thank you for choosing Westin products
for additional installation assistance please call
1
TOOLS NEEDED
13MM SOCKET
12MM SOCKET
HEX KEY TOOL
TORQUE WRENCH
Pro Traxx 4
ITEM 14
Customer Service (800) 793-7846
www.westinautomotive.com
RATCHET
DATE: 1/13/17
