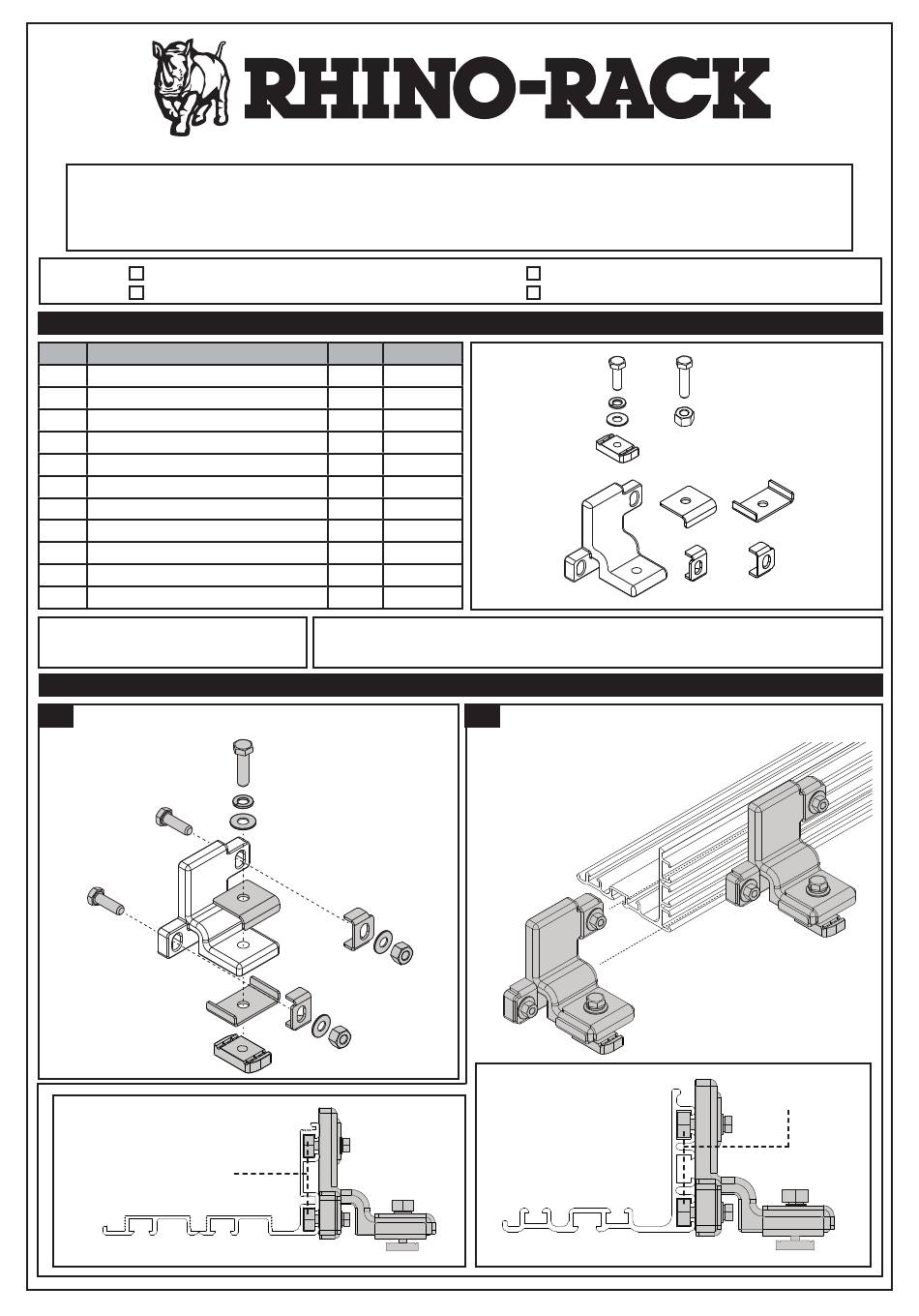

Rhino-Rack RLRM Instructions

Important:

Please read these instructions carefully prior to installation.
Please refer to your fi tting instruction to ensure that the Roof Rack System is installed in the
correct location.
Check the contents of kit before commencing fi tment and report any discrepancies.
Place these instructions in the vehicle's glove box after installation is complete.
1. Check Part No./Kit is correct
3. Fit roof rack accessory
Item Components
1 M8 x 25mm Hex Bolt
2 M8 x 35 Hex Bolt
3 M8 Spring Washer
4 M8 x 17mm Flat Washer
5 M8 Channel Nut
6 M8 Nyloc Nut
7 Flexible Crossbar Mount Top Plate
8 Multi-slide Flexible Crossbar Mount
9 Flexible Crossbar Mount Bottom Plate
10 Flexible Crossbar Mount Oval Plate
11 Instructions

Tools Required:

1. 13mm Socket Wrench.
1
Assemble the Rubber Mounts as shown. Finger tighten
only at this stage.
1.
1.
8.
9.
5.
Side View: The M8 x
25mm Hex Bolts will slide
into the CSL Ladder Rack
Extrusion as shown.
RLRM Rubber Ladder Mount

Parts List:

Qty Part No.
4 B101
2 B102
2 W019
6 W020
2 N003
4 N028
2 CA1583
2 M826
2 CA1582
4 CA1581
1 R1083
Note:
For use with the Rhino Multi-slide & CSL Kits. Kits are sold as separate.
Instructions
2.
3.
4.
10.
7.
4.
6.
10.
4.
6.
2. Read through instruction before installing
4. Check and recheck all fasteners are secure
1.
3.
4.
5.
8.
2
Slide the Rubber Mount
Assembly into either side of
the front of the side of the
Slide Ladder Rack. Do not
tighten in place at this stage.
Side View: The M8 x
25mm Hex Bolts will slide
into the Slide Ladder Rack
Extrusion as shown.
CONTROLLED
2.
6.
7. 9.
10. 10.
M8 x 25mm Hex
Bolt.
