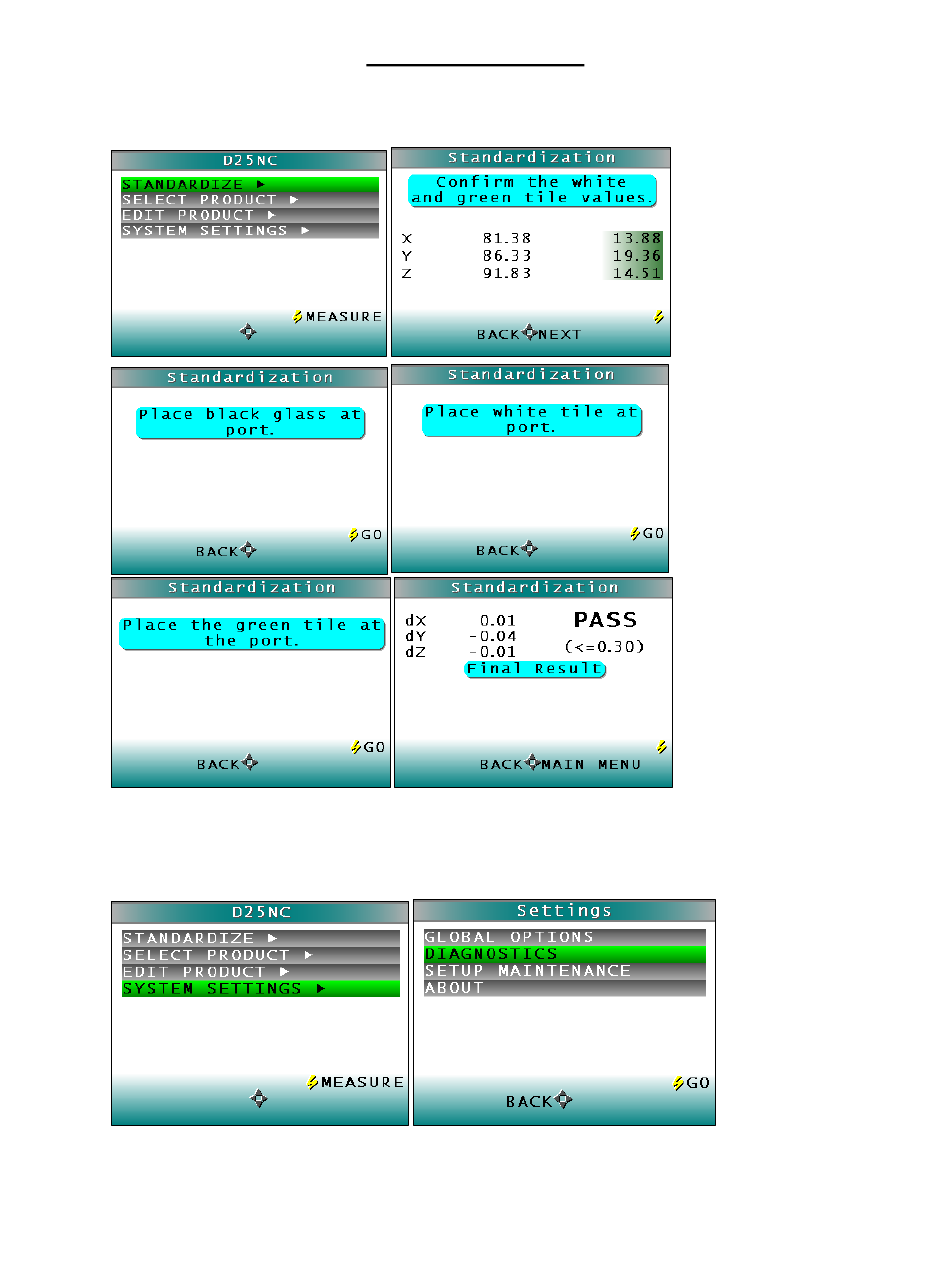

- Page 1 Initial Setup of D25 NC 1) Connect AC power and turn on power using switch on back of turntable 2) Standardize the sensor 3) Place Product in Tray on Turntable. Raise/Lower sensor height until Distance Sensor reads about 90 mm.
- Page 2 4) Remove Tray and Record Distance without Product as in Step 3. This will be your belt distance. 5) Edit Product settings for desired output on screen 6) Configure Parameters for Sampling...
- Page 3 Read Mode: Time = Average Readings for Selected Time Interval. (5 seconds = 1 Revolution of Turntable) Piece Mode = Average Readings over entire Individual Piece. Note sample must be under sensor for a minimum of 1 second. Interval: Set the number of seconds for Time Mode. (Each rotation is 5 seconds). Belt Distance: Distance from Sensor Window to Bottom of Tray as determined by Distance Sensor Min Height = Minimum Product Thickness to Measure (Typically ½...
