Summary of Contents for HunterLab EasyMatch QC

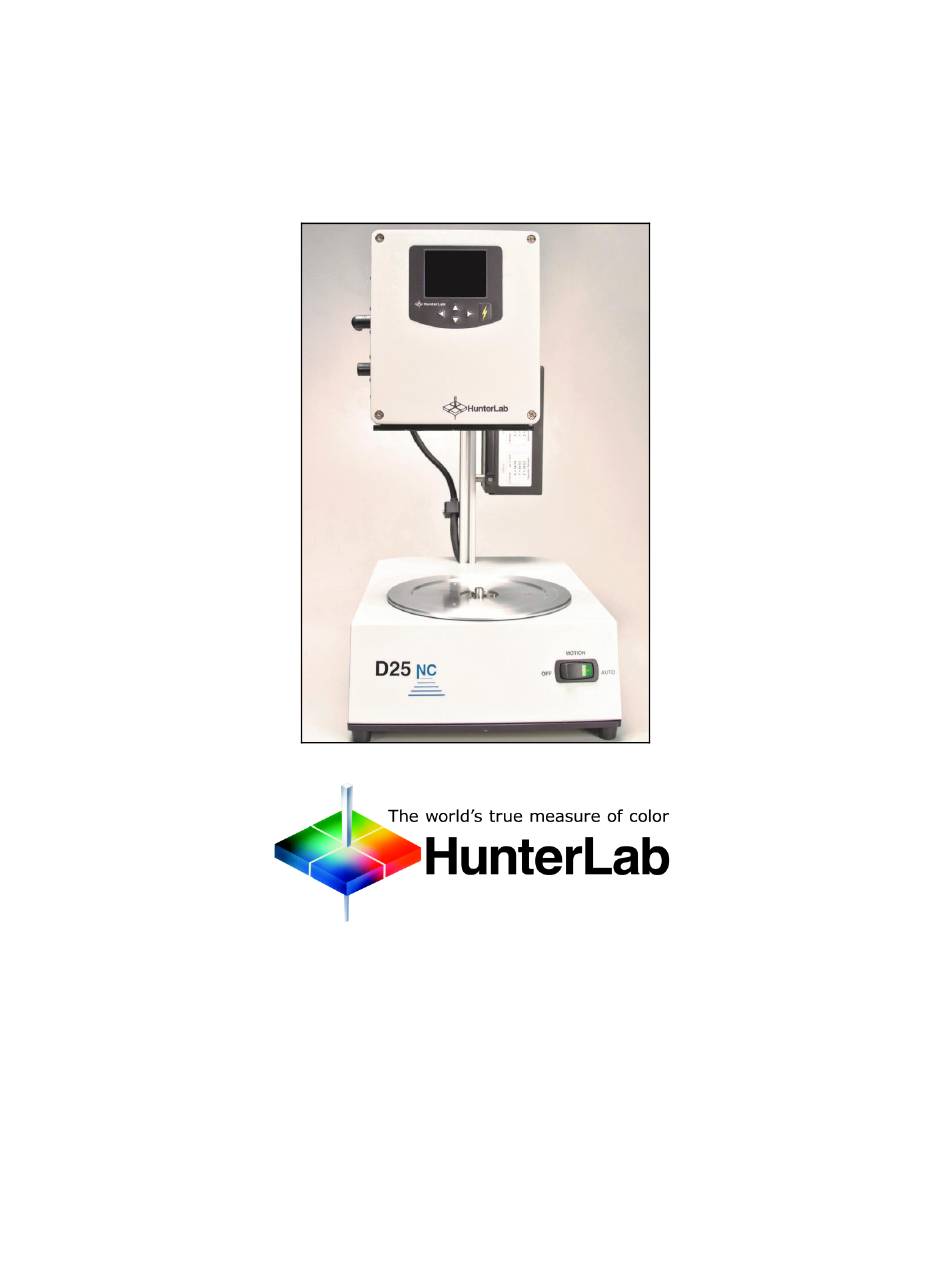

- Page 1 ® Supplemental Manual for EasyMatch ® Hunter Associates Laboratory 11491 Sunset Hills Road Reston, Virginia 20190 USA www.hunterlab.com A60-1018-095 Manual Version 1.0...
- Page 2 Teflon and Lucite are registered trademarks of DuPont Company. Caution: If the equipment is used in a manner not specified by the HunterLab, the overall safety may be impaired. - The instrument is for indoor use only and not suitable for a wet location.
-
Page 3: Table Of Contents
D25 NC Supplemental Manual for EasyMatch QC Contents D25 NC FEATURES ......................5 Standard Accessories: ........................5 D25 NC Options and Sample Devices ....................6 D25 NC INSTALLATION ....................7 Install EasyMatch® QC Software ....................... 8 Activate the SoftKey License ......................9 Connecting D25 NC to EasyMatch®... - Page 4 D25 NC Supplemental Manual for EasyMatch QC...
-
Page 5: D25 Nc Features
This instrument is designed to work as a stand-alone unit with an easy-to-read display or connected to EasyMatch QC software on a personal computer. -
Page 6: D25 Nc Options And Sample Devices
Danger of electric shock if liquids are spilled and fire if volatile or flammable liquids are spilled. Use care when measuring liquid samples. D25 NC Options and Sample Devices For the latest information, please refer to support.hunterlab.com and D25 NC. -
Page 7: D25 Nc Installation
1. Unpack all cartons and remove wrappings and cable ties. Inspect for damage and notify the carrier and HunterLab immediately if any is discovered. Save the packing material in case it becomes necessary to return the instrument to the factory. -
Page 8: Install Easymatch® Qc Software
5. Select ‘SoftKey License’ as the type of key to use with the software. Figure 3. Software Key License 6. When the EasyMatch QC installation is finished, select the Option Button next to ‘Yes, I want to restart my computer now’ and then Finish to restart the computer and log back in. -
Page 9: Activate The Softkey License
7. The CD can now be removed. Activate the SoftKey License 1. From the Desktop, select the EasyMatch QC Icon or from the Windows Start menu, choose the following to open the software: Start > Programs > HunterLab > EasyMatch QC 2. - Page 10 Option #3: Sentinel Key iii. a. If the user has a HunterLab USB hardware key, then it can be used with a new sensor on the same computer. Return to Install the Software, Step 5 (Figure 3) and select the Sentinel Key to continue.
-
Page 11: Connecting D25 Nc To Easymatch® Qc And A Computer
EasyMatch QC and EasyMatch QC-ER Version can connect with D25 NC through a USB printer cable. Connect D25 NC to the computer via a USB cable. 1. Connect both the D25 NC and the computer with EasyMatch QC via a USB cable 2.0 (A male to B male). - Page 12 Figure 9. Add D25 NC Sensor Select D25 NC as the Sensor Type and use the USB (selected as default) to connect D25 NC with EasyMatch QC. Click Next to search available D25 NC. Figure 10. Setup Sensor in EasyMatch QC If there are multiple D25 NC units, then a list of available sensors and ports are shown.
-
Page 13: Standardization Mode
D25 NC Supplemental Manual for EasyMatch QC 7. Select Next to standardize. 8. You are now ready to use EasyMatch QC with the D25 NC. Standardization Mode Only reflectance is available on the D25 NC. The instrument can be standardized at any time by selecting Sensor Menu > or by clicking the Standardize button on the default toolbar. - Page 14 D25 NC Supplemental Manual for EasyMatch QC Figure 14. Read Green Tile...
-
Page 15: D25 Nc Maintenance And Testing
D25 NC Supplemental Manual for EasyMatch QC D25 NC Maintenance and Testing The D25 NC is engineered to be virtually maintenance free. This section outlines the few parts of the sensor that are to be maintained for the instrument to function properly. -
Page 16: Cleaning The Viewing Window
To replace a fuse: • Turn off the power and disconnect it from the power source. • The fuse is a pair of 2 Amp Slow Blow fuses (HL# S2338) supplied by HunterLab or equivalent. • Flip up the plastic fuse holder and open the cover panel. -
Page 17: Diagnostics On The D25 Nc
D25 NC Supplemental Manual for EasyMatch QC • Order additional spare fuses for potential future use. Diagnostics on the D25 NC Diagnostics are included with the D25 NC Easy Match QC. To initiate, select Diagnostics from the Sensor Menu. The Green Tile Test, Repeatability Test and Hardware checks are the available tests. -
Page 18: Repeatability Test
D25 NC Supplemental Manual for EasyMatch QC Repeatability Test The repeatability test is initiated by standardizing and leaving the white tile in view. Each white tile reading is reported along with a pass/fail evaluation. Figure 18. Repeatability Readings When the test is complete, results are shown in several screens. -
Page 19: Hardware Check
D25 NC Supplemental Manual for EasyMatch QC Figure 20. Repeatability Report Hardware Check This tests the signal level values for the sample and monitor as shown in the figure below. Figure 21. Signal Level Test... - Page 20 D25 NC Supplemental Manual for EasyMatch QC...
-
Page 21: D25 Nc Specifications
If this happens, restandardize the instrument before making measurements. HunterLab recommends using a line conditioner with a minimum 600 VA rating and a battery back-up system. -
Page 22: Instrument Performance
D25 NC Supplemental Manual for EasyMatch QC Instrument Performance Measurement Principle Dual-beam spectrophotometer Spectral Range 400 nm – 700 nm Spectral Resolution < 3 nm Effective Bandwidth 10 nm equivalent triangular Reporting Interval 10 nm Photometric Range 0 to 150%... - Page 23 D25 NC Supplemental Manual for EasyMatch QC...
- Page 24 D25 NC Supplemental Manual for EasyMatch QC...
-
Page 25: Instrument Replacement, Repair, Problems, And Questions
The HunterLab warranty does not cover consumable items such as lamps, fuses, batteries, etc. An instrument registration card is shipped with each HunterLab instrument. It is important that the instrument owner returns this card promptly upon receipt of equipment. -
Page 26: Shortage
4. Advise HunterLab regarding replacement. Parcel Post Shipment 1. Notify HunterLab at once in writing, giving details of the loss or damage. This information is required for filing a claim. 2. Hold the damaged goods with their container and packaging for possible inspection by postal authorities. -
Page 27: Returns
D25 NC Supplemental Manual for EasyMatch QC Returns A service request order (SRO) number is required before any items can be returned to HunterLab. Contact HunterLab's Order Processing Department to obtain an SRO for damaged or incorrect parts, or the HunterLab Service Department to obtain an SRO to return an instrument for service. -
Page 28: When You Need Assistance
2. The serial number of the instrument (usually found on a tag on the back or bottom of the sensor, or inside the transmission compartment). 3. The type of software you use to access the sensor output (EasyMatch QC), the version of the software (seen after choosing About from the Help menu), the operating system, and the brand and type of computer. - Page 29 D25 NC Supplemental Manual for EasyMatch QC HunterLab for service, or to ask questions about the servicing or recalibration of instruments, ask for HunterLab Service Department. To speak with HunterLab, please call 703-471-6870. The mailing address for HunterLab headquarters is given below. Customers outside the United States should contact their HunterLab distributor for initial assistance.
- Page 30 D25 NC Supplemental Manual for EasyMatch QC...
-
Page 31: Index
D25 NC Supplemental Manual for EasyMatch QC Index Broken instruments, 25 Regulatory notice, 22 Claims, 25 Repair, 25 Cleaning Replacement, 25 Instrument Standard, 16 Replacing Fuses, 16 Cleaning the Viewing Window, 16 Returns, 27 Damaged instruments, 25 Service Department, 29...
