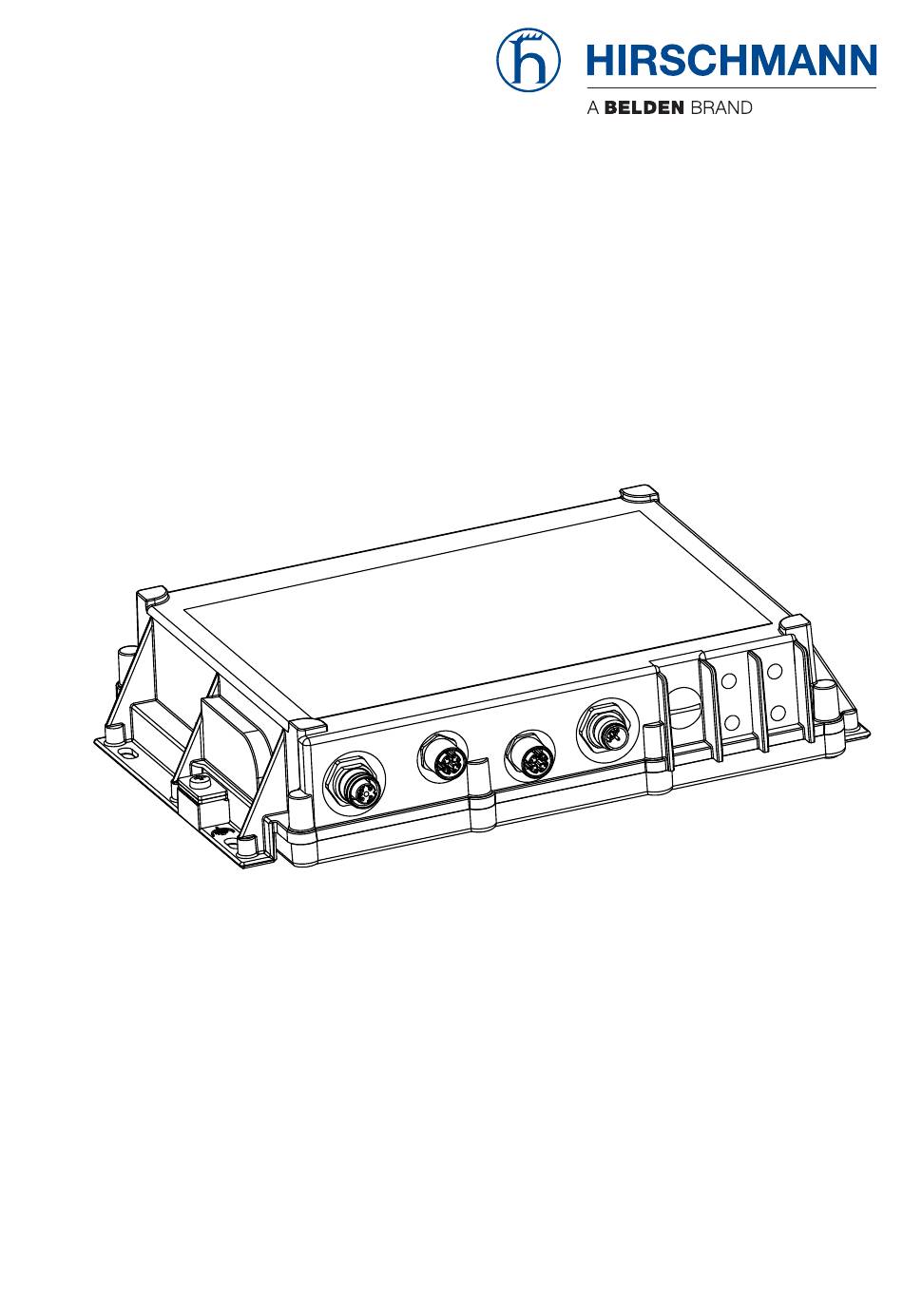

User Manual
Installation
Industrial Access Point / Client / Access Bridge
BAT450-F
Installation BAT450-F
Technical support
Release 12 07/2020
https://hirschmann-support.belden.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIRSCHMANN BAT450-F and is the answer not in the manual?

Questions and answers

Related Manuals for Belden HIRSCHMANN BAT450-F

Summary of Contents for Belden HIRSCHMANN BAT450-F

  • Page 1 User Manual Installation Industrial Access Point / Client / Access Bridge BAT450-F Installation BAT450-F Technical support Release 12 07/2020 https://hirschmann-support.belden.com...
  • Page 2 The naming of copyrighted trademarks in this manual, even when not specially indicated, should not be taken to mean that these names may be considered as free in the sense of the trademark and tradename protection law and hence that they may be freely used by anyone. ©...

  • Page 3: Table Of Contents

    Contents Safety instructions About this manual Description General device description Device name and product code Device view 11n device variants (non-LTE) Device view 11ac device variants (non-LTE) Device view LTE device variants Power supply 1.6.1 Supply voltage with the characteristic value W (24 V DC) 1.6.2 Supply voltage with the characteristic value N (110 V DC)
  • Page 4 Checking the package contents Installing and grounding the device 2.2.1 Installing the device onto or on a flat surface 2.2.2 Installing the device on a pole 2.2.3 Grounding the device Installing the antennas Connecting the power supply 2.4.1 Supply voltage with the characteristic value W (24 V DC) 2.4.2 Supply voltage with the characteristic value N (110 V DC)
  • Page 5 13.1 General technical data 13.2 Dimension drawings 13.3 11n WLAN module specifications 13.3.1 Radio technology 13.3.2 Roaming 13.3.3 Receiving sensitivity, transmit power, and data rate of the WLAN module version EWLAN1 (Approvals 2, characteristic value M or 9) 13.3.4 Receiving sensitivity, transmit power, and data rate of the WLAN module version EWLAN1 for device variants with approval for the 4.9 GHz band (Approvals 2, characteristic value P)
  • Page 6 Accessories 11ac device variants (non-LTE) Accessories LTE device variants Underlying technical standards Further support Installation BAT450-F Release 12 07/2020...

  • Page 7: Safety Instructions

    Safety instructions WARNING UNCONTROLLED MACHINE ACTIONS To avoid uncontrolled machine actions caused by data loss, configure all the data transmission devices individually. Before you start any machine which is controlled via data transmission, be sure to complete the configuration of all data transmission devices. Failure to follow this instruction can result in death, serious injury, or equipment damage.
  • Page 8 Installation site requirements   During the installation, make sure that you adhere to the regulations of the country in which you are operating the device.  In ambient temperatures under +14 °F (-10 °C), use cabling designed for minimum temperatures. ...
  • Page 9 The overall shield of a connected shielded twisted pair cable is connected to the ground connection on the metal housing as a conductor. Requirements for connecting electrical wires  Before connecting the electrical wires, always verify that the requirements listed are complied with. The following requirements apply without restrictions: ...
  • Page 10 Lightning protection   The installation of the device occurs in accordance with valid standards (such as IEC 62305 / DIN EN 62305 (VDE 0185-305)), and in accordance with the lightning protection procedures recognized and proven for the application and the environment. ...
  • Page 11 In accordance with the above-named EU directive(s), the EU conformity declaration will be available to the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany www.hirschmann.com The product can be used in residential areas (residential, commercial and light-industrial environments) and in industrial areas.
  • Page 12 Notes for countries with the following country codes: AT BE BG CH CY CZ DE DK EE HR HU EL ES LV MT NL NO PL PT RO RS SE TR UK  The RED compliance requires compliant operation of the device in the 5 GHz band channels.
  • Page 13 Notes for Germany (DE), Ireland (IE), and the United Kingdom (UK): DE IE Operation in the 5.8 GHz band at a radiated power (EIRP) >25 mW is subject to meeting the following conditions:  Germany (DE) Frequency range: 5725 MHz to 5875 MHz Condition: The usage of this band is restricted to commercial public telecommunication services.
  • Page 14 Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information BAT450-F U.S. Contact Information Belden – St. Louis 1 N. Brentwood Blvd. 15th Floor St. Louis, Missouri 63105, United States Phone: 314.854.8000 This device complies with part 15 of the FCC rules.
  • Page 15 EWLAN1 Module Note for the use in the USA and in Canada The following section applies to device variants with characteristic value US (USA/Canada) for country approvals, which are labeled as follows: Contains Transmitter Module FCC ID: U99EWLAN1 IC: 4019A-EWLAN1 This equipment complies with FCC and IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.
  • Page 16 Applies exclusively to device variants with approval for the 4.9 GHz band (Approvals 2, characteristic value P) according to FCC 47CFR Part 90 Subpart Y:  Operation of the device in the 4.9 GHz band requires trained personnel familiar with the regulatory requirements for operation according to FCC 47CFR Part 90 Subpart Y.
  • Page 17 Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information BAT450-F U.S. Contact Information Belden – St. Louis 1 N. Brentwood Blvd. 15th Floor St. Louis, Missouri 63105, United States Phone: 314.854.8000 This device complies with part 15 of the FCC rules.
  • Page 18 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 19 To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that permitted for successful communication. Antenna(s) for operation with this Permitted band of operation device: 2.4 GHz band 5 GHz band...

  • Page 20: About This Manual

    About this manual The “Installation” user manual contains a device description, safety instructions, a description of the display, and the other information that you need to install the device. Documentation mentioned in the “User Manual Installation” that is not supplied with your device as a printout can be found as PDF files for downloading on the Internet at: https://www.doc.hirschmann.com Legend...

  • Page 21: Description

    11ac device variants are especially suitable for use in onboard railway applications. You have numerous options of combining the device characteristics. You can determine the possible combinations using the configurator which is available in the Belden Online Catalog https://catalog.belden.com on the web page of the device.

  • Page 22: Device Name And Product Code

    1 ... 8 Product BAT450-F IP65/67 housing 9 ... 10 Country approvals You can determine the current country approvals using the configurator (https://catalog.belden.com) Example: Example: Singapore Slot 1 WLAN module 11n WLAN module 11ac Slot 2 WLAN module 11n...
  • Page 23 Item Characteristic Characteristic Description value 22 ... 23 Optional: 8-pin, “X”-coded M12 socket for 10/ Ethernet port 2 or interface 100/1000 Mbit/s twisted pair connections  8-pin, “X”-coded M12 socket for 10/100/1000 Mbit/s twisted pair connections  V.24/ACA11 V.24/ACA11 Not assembled Temperature range Extended with Conformal Coating -40 °F ...

  • Page 24: Device View 11N Device Variants (Non-Lte)

    Device view 11n device variants (non-LTE) Figure 1: Device view 11n device variants (non-LTE) Optional: 1 × Antenna connection WLAN 2 WLAN 1 1 × Antenna connection Optional: 1 × Antenna connection WLAN 2 WLAN 1 1 × Antenna connection Optional: 1 ×...
  • Page 25 Ethernet port 1 Applies to device variants featuring supply voltage with characteristic value W (24 V DC): 8-pin, “X”-coded M12 plug for 10/100/1000 Mbit/s PoE port Applies to device variants featuring supply voltage with characteristic value N (110 V DC): 8-pin, “X”-coded M12 socket for 10/100/1000 Mbit/s twisted pair connections Optional:...

  • Page 26: Device View 11Ac Device Variants (Non-Lte)

    Device view 11ac device variants (non-LTE) Figure 2: Device view 11ac device variants (non-LTE) WLAN 11ac 1 × Antenna connection WLAN 11ac 1 × Antenna connection WLAN 11ac 1 × Antenna connection LED display elements Reset button behind a screwable IP65/67 protection cap Supply voltage connection Applies to device variants featuring supply voltage with characteristic value W (24 V DC):...

  • Page 27: Device View Lte Device Variants

    Applies to device variants featuring Connection for functional ground supply voltage with characteristic value W (24 V DC): Applies to device variants featuring Connection for protective ground supply voltage with characteristic value N (110 V DC): Device view LTE device variants Figure 3: Device view LTE device variants LTE AUX 1 ×...

  • Page 28: Power Supply

    Supply voltage connection Applies to device variants featuring supply voltage with characteristic value W (24 V DC): 5-pin, “A”-coded M12 socket Applies to device variants featuring supply voltage with characteristic value N (110 V DC): 4-pin, “A”-coded M12 socket Ethernet port 1 Applies to device variants featuring supply voltage with characteristic value W (24 V DC): 8-pin, “X”-coded M12 plug for 10/100/1000 Mbit/s...

  • Page 29: Supply Voltage With The Characteristic Value N (110 V Dc)

    1.6.2 Supply voltage with the characteristic value N (110 V DC) For the power supply of the device, a 4-pin, “A”-coded M12 plug is available. Ethernet ports You have the option to connect end devices or other segments to the ports of the device via twisted pair cables.

  • Page 30: Pin Assignments

    The socket housing is electrically connected with the device housing. 1.7.3 Pin assignments M12 8-pin 10/100 Mbit/s 1000 Mbit/s (“X”-coded) (applies to Twisted Pair port) (applies to PoE port) BI_DB+ Negative V RX− BI_DB− Negative V BI_DA+ Positive V TX− BI_DA−...

  • Page 31: Ls/Da

    WLAN 1, WLAN 2 Color Activity Meaning —  No WLAN network specified  WLAN module deactivated  WLAN module does not send any beacons  green flashing At least one WLAN network defined  WLAN module activated green inverse flashing Number of flashes corresponds to number of connected WLAN stations and P2P radio lines.

  • Page 32: Ls/Da

    Power Color Activity Meaning green lights up LED lights up after the configuration flashing Device has detected at least one hardware error. green/red Short flashing No password or the default password is set green/red Long flashing Charge lock active WLAN 1 Color Activity Meaning...

  • Page 33: Ls/Da

    Power LS/DA WLAN 1 Power Color Activity Meaning green lights up LED lights up after the configuration flashing Device has detected at least one hardware error. green/red Short flashing No password or the default password is set green/red Long flashing Charge lock active WLAN Color...
  • Page 34 This interface is serial and enables the local connection of an external management station (VT100 terminal or PC with corresponding terminal emulation). This enables you to set up a connection to the Command Line Interface CLI and to the System Monitor. VT100 terminal settings Speed 115200 bit/s...

  • Page 35: Reset Button

    1.11.2 Reset button The device has a reset button. The reset button is located behind a screwable IP65/67 protection cap. The tightening torque is 4.42 lb-in to 8.85 lb-in (0.5 Nm to 1.0 Nm). Prerequisite: Keep the working area dry and clean when you are carrying out a reset.

  • Page 36: Sim Card Reader (Exclusively For Lte Device Variants)

    1.12 SIM card reader (exclusively for LTE device variants) There are 2 SIM card readers for 3.3 V SIM cards located on the left side of the casing. In order for the device to function properly, insert an activated SIM card with the PIN code unblocked into the SIM card holder.

  • Page 37: Installation

    Installation On delivery, the device is ready for operation. To protect the exposed uninstalled contacts of the components from dirt, connect the individual system components in a dry and clean working area. The device fulfills the protection class IP65/67 under the following conditions, exclusively: ...

  • Page 38: Installing The Device Onto Or On A Flat Surface

    Installing and grounding the device 2.2.1 Installing the device onto or on a flat surface You have the option of attaching the device with suitable hardware to a vertical flat surface.  The diameter of the mounting hardware is maximum 0.20 in (5 mm). ...

  • Page 39: Installing The Device On A Pole

    2.2.2 Installing the device on a pole The devices are suitable for pole mounting with the additional BAT450-F pole mounting set: See “Accessories 11n device variants (non-LTE)” on page 89. See “Accessories 11ac device variants (non-LTE)” on page 90. See “Accessories LTE device variants” on page 91. The BAT450-F pole mounting set with enclosed U-bolts is designed for the following pole diameter range: ...

  • Page 40: Grounding The Device

    Figure 5: BAT450-F pole mounting set with tightening straps 2.2.3 Grounding the device WARNING ELECTRIC SHOCK Ground the device before connecting any other cables. Failure to follow this instruction can result in death, serious injury, or equipment damage. The device is grounded via the separate ground screw. The device variants featuring supply voltage with characteristic value N (110 V DC) have a connection for protective ground The device variants featuring supply voltage with characteristic value W...

  • Page 41: Installing The Antennas

    Installing the antennas The device has connections for external antennas. These connections are N sockets. Note: Applies exclusively to LTE device variants with the antenna WWAN-A- I-41-S-O: You need the adapter WWAN-N-O-N-S (N plug to SMA socket). The adapter is included in the scope of delivery for device variants with the Configuration characteristic value "Z"...

  • Page 42: Supply Voltage With The Characteristic Value W (24 V Dc)

    2.4.1 Supply voltage with the characteristic value W (24 V DC) Type and specification of the supply Pin assignment on the device voltage Rated voltage DC: 1 +24 V DC 24 V DC Voltage range DC incl. maximum 2 0 V DC tolerances: 3 0 V DC 16.8 V DC ...

  • Page 43: Operating The Device

    Operating the device WARNING ELECTRIC SHOCK Before connecting the electrical wires, always verify that the requirements listed are complied with. See “Requirements for connecting electrical wires” on page 9. See “Requirements for connecting the supply voltage” on page 9. Failure to follow this instruction can result in death, serious injury, or equipment damage.

  • Page 44: Defining Ip Parameters

    Defining IP parameters The IP parameters must be entered when the device is installed for the first time. The device offers the following options for assigning the IP parameters:  via DHCP (Option 82)  via BOOTP  via the HiDiscovery or Industrial HiVision application ...

  • Page 45: First Login (Password Change)

     Type in your new password. Choose a password that contains at least 8 characters which includes upper-case characters, lower-case characters, numerical digits and special characters.  Confirm your new password. For further information see: https://hirschmann-support.belden.com/en/kb/required-password-change- new-procedure-for-first-time-login Installation BAT450-F Release 12 07/2020...

  • Page 46: Defining Wlan Basic Settings

    Defining WLAN basic settings You have the following options to define the WLAN basic settings:  via the wired local network (LAN)  via the wireless network (WLAN), if the WLAN encryption (for example WPA2) is set accordingly in a device with a wireless interface and in the configuration computer.

  • Page 47: Defining Wwan Basic Settings (Exclusively For Lte Device Variants)

    Defining WWAN basic settings (exclusively for LTE device variants) You will find more information in the “User Manual Configuration Guide”, in the chapter “Configuring WWAN access”. The manual is available for download on the Internet: https:// www.doc.hirschmann.com Installation BAT450-F Release 12 07/2020...

  • Page 48: Obtaining Compliance For Operation In The European Union

    Obtaining compliance for operation in the European Union For operation in the European Union, the device must comply with the Radio Equipment Directive (RED) 2014/53/EU. The RED compliance requires compliant operation of the device in the 5 GHz band channels. Compliant operation of the device is achieved by an unchangeable determination of the country setting.
  • Page 49 Note: To check the country setting and correct it, type no. Then check the country setting with the following command: ls Setup/WLAN/ Country.  To obtain RED compliance, type yes. This makes the country setting unchangeable. Subsequently, the device restarts. Graphical user interface ...
  • Page 50  To confirm your choice, click the “OK” button.  In the LANconfig device overview, highlight the row containing the desired device.  In the menu bar, select Device > RED compliance. Note: To check the country setting and correct it, click the “No” button. Then open the Configuration >...

  • Page 51: Configuring The Transmit Power

    Configuring the transmit power Note: This chapter does NOT apply to device variants with approval for the 4.9 GHz band (Approvals 2, characteristic value P). For device variants with approval for the 4.9 GHz band see “Configuring the transmit power for the 4.9 GHz band”...
  • Page 52  Subtract the cable and installed overvoltage protector attenuation from the antenna gain. Enter the calculated value in the “Antenna gain” field.  Click the “Set” button to save the value. Installation BAT450-F Release 12 07/2020...

  • Page 53: Configuring The Transmit Power For The 4.9 Ghz Band

    Configuring the transmit power for the 4.9 GHz band Note: This chapter exclusively applies to device variants with approval for the 4.9 GHz band (Approvals 2, characteristic value P). Note: The operator of a WLAN radio installation must adhere to the applicable transmission threshold values.
  • Page 54  To save the value, click the “Send” button. Installation BAT450-F Release 12 07/2020...

  • Page 55: 10 Monitoring The Ambient Air Temperature

    10 Monitoring the ambient air temperature Operate the device below the specified maximum ambient air temperature exclusively. See “General technical data” on page 58. The ambient air temperature is the temperature of the air at a distance of 2 in (5 cm) from the device.

  • Page 56: 11 Maintenance And Service

    11 Maintenance and service  When designing this device, Hirschmann largely avoided using high-wear parts. The parts subject to wear and tear are dimensioned to last longer than the lifetime of the product when it is operated normally. Operate this device according to the specifications.

  • Page 57: 12 Disassembly

    12 Disassembly  Disconnect the data cables.  Disable the supply voltage.  Disconnect the power supply cable.  Remove the antennas.  Disconnect the grounding. Installation BAT450-F Release 12 07/2020...

  • Page 58: 13 Technical Data

    13 Technical data 13.1 General technical data Dimensions BAT450-F See “Dimension drawings” on page 60. W × H × D Weight ≥4.41 lb (2.0 kg) (depending on the device variant) Supply voltage Connection type 8-pin, “X”-coded M12 socket for PoE port or with the a 5-pin, “A”-coded M12 plug characteristic...
  • Page 59 Climatic Ambient air temperature -40 °F ... +185 °F (-40 °C ... +85 °C) conditions during Humidity 10 % ... 95 % (non-condensing) storage Air pressure min. 700 hPa (+9842 ft; +3000 m) max. 1060 hPa (-1312 ft; -400 m) Pollution degree Protection classes Laser protection Class 1 in compliance with IEC 60825-1...

  • Page 60: Dimension Drawings

    13.2 Dimension drawings inch 10.2 Installation BAT450-F Release 12 07/2020...

  • Page 61: Wlan Module Specifications

    13.3 11n WLAN module specifications 13.3.1 Radio technology Antenna connection For each WLAN module: 3 × N socket Range Depending on the antenna used, frequency range and data rate  Encryption IEEE 802.11i/WPA2 with passphrase or IEEE 802.1x and hardware-accelerated AES ...

  • Page 62: Receiving Sensitivity, Transmit Power, And Data Rate Of The Wlan Module Version Ewlan1 (Approvals 2, Characteristic Value M Or 9)

    13.3.3 Receiving sensitivity, transmit power, and data rate of the WLAN module version EWLAN1 (Approvals 2, characteristic value M or 9) The values shown in the following tables are the maximum values of the WLAN module version EWLAN1. The values are in no case to be perceived as a guaranteed property of the overall product.
  • Page 63 IEEE 802.11a Frequency range 5.180 GHz to 5.825 GHz (for FCC: 5.180 GHz to 5.240 GHz and 5.745 GHz to 5.825 GHz) Data rate Typical transmit power Typical receiving sensitivity 12 Mbit/s 16 dBm -93 dBm 18 Mbit/s 16 dBm -91 dBm 24 Mbit/s 16 dBm...
  • Page 64 IEEE 802.11n Frequency range 2.412 GHz to 2.472 GHz (for FCC: 2.412 GHz to 2.462 GHz) Coding Typical transmit power Typical receiving sensitivity MCS 17 23 dBm -90 dBm MCS 18 23 dBm -86 dBm MCS 19 23 dBm -82 dBm MCS 20 16 dBm -79 dBm...
  • Page 65 IEEE 802.11n Frequency range 5.180 GHz to 5.825 GHz (for FCC: 5.180 GHz to 5.240 GHz and 5.745 GHz to 5.825 GHz) Coding Typical transmit power Typical receiving sensitivity MCS 19 21 dBm -84 dBm MCS 20 16 dBm -81 dBm MCS 21 15 dBm -77 dBm...

  • Page 66: Receiving Sensitivity, Transmit Power, And Data Rate Of The Wlan Module Version Ewlan1 For Device Variants With Approval For The 4.9 Ghz Band (Approvals 2, Characteristic Value P)

    13.3.4 Receiving sensitivity, transmit power, and data rate of the WLAN module version EWLAN1 for device variants with approval for the 4.9 GHz band (Approvals 2, characteristic value P) Applies exclusively to WLAN module version EWLAN1 for device variants with approval for the 4.9 GHz band (Approvals 2, characteristic value P) according to FCC 47CFR Part 90 Subpart Y.
  • Page 67 IEEE 802.11a Frequency range 4.940 GHz to 4.990 GHz Bandwidth 10 MHz Data rate Typical transmit power 18 Mbit/s 13 dBm 24 Mbit/s 12 dBm 27 Mbit/s 11 dBm Table 14: IEEE 802.11a, Frequency range 4.940 GHz to 4.990 GHz, Bandwidth 10 MHz, Channels 19-27 IEEE 802.11a, Bandwidth 20 MHz ...

  • Page 68: Receiving Sensitivity, Transmit Power, And Data Rate Of The Wlan Module Version Ewlan2 For High-Gain Antennas (Approvals 2, Characteristic Value H)

    13.3.5 Receiving sensitivity, transmit power, and data rate of the WLAN module version EWLAN2 for high-gain antennas (Approvals 2, characteristic value H) The values shown in the following tables are the maximum values of the WLAN module version EWLAN2 for high-gain antennas. The values are in no case to be perceived as a guaranteed property of the overall product.
  • Page 69 IEEE 802.11a Frequency range 5.180 GHz to 5.825 GHz (for FCC: 5.180 GHz to 5.240 GHz and 5.745 GHz to 5.825 GHz) Data rate Typical transmit power Typical receiving sensitivity 12 Mbit/s 10 dBm -93 dBm 18 Mbit/s 10 dBm -91 dBm 24 Mbit/s 10 dBm...
  • Page 70 IEEE 802.11n Frequency range 2.412 GHz to 2.472 GHz (for FCC: 2.412 GHz to 2.462 GHz) Coding Typical transmit power Typical receiving sensitivity MCS 19 23 dBm -82 dBm MCS 20 16 dBm -79 dBm MCS 21 17 dBm -75 dBm MCS 22 17 dBm -73 dBm...
  • Page 71 IEEE 802.11n Frequency range 5.180 GHz to 5.825 GHz (for FCC: 5.180 GHz to 5.240 GHz and 5.745 GHz to 5.825 GHz) Coding Typical transmit power Typical receiving sensitivity MCS 20 3 dBm -81 dBm MCS 21 2 dBm -77 dBm MCS 22 1 dBm -75 dBm...

  • Page 72: 11Ac Wlan Module Specifications (Exclusively For 11Ac Device Variants)

    13.4 11ac WLAN module specifications (exclusively for 11ac device variants) 13.4.1 Radio technology Antenna connection 3 × N sockets for WLAN module Range Depending on the antenna used, frequency range and data rate Encryption  IEEE 802.11i/WPA2 with passphrase or IEEE 802.1x and hardware-accelerated AES ...

  • Page 73: Receiving Sensitivity, Transmit Power And Data Rate

    13.4.3 Receiving sensitivity, transmit power and data rate The values of the WLAN module shown in the following tables are subject to a tolerance of ±2 dB. If you use only 1 antenna, the transmit power is reduced by 5 dB. The values are in no case to be perceived as a guaranteed property of the overall product.
  • Page 74 IEEE 802.11a  IEEE 802.11a Frequency range 5.180 GHz to 5.825 GHz (for FCC: 5.180 GHz to 5.240 GHz / 5.260 GHz to 5.320 GHz / 5.500 GHz to 5.720 GHz / 5.745 GHz to 5.825 GHz) Bandwidth 20 MHz Data rate Transmit power Receiving sensitivity...
  • Page 75 IEEE 802.11n Frequency range 2.412 GHz to 2.472 GHz (for FCC: 2.412 GHz to 2.462 GHz) Bandwidth 40 MHz Coding Transmit power Receiving sensitivity MCS 0 / 8 / 16 25 dBm -92 dBm MCS 1 / 9 / 17 25 dBm -88 dBm MCS 2 / 10 / 18...
  • Page 76 IEEE 802.11n Frequency range 5.180 GHz to 5.825 GHz (for FCC: 5.180 GHz to 5.240 GHz / 5.260 GHz to 5.320 GHz / 5.500 GHz to 5.720 GHz / 5.745 GHz to 5.825 GHz) Bandwidth 40 MHz Coding Transmit power Receiving sensitivity MCS 0 / 8 / 16 23 dBm...
  • Page 77 IEEE 802.11ac Frequency range 5.180 GHz to 5.825 GHz (for FCC: 5.180 GHz to 5.240 GHz / 5.260 GHz to 5.320 GHz / 5.500 GHz to 5.720 GHz / 5.745 GHz to 5.825 GHz) Bandwidth 40 MHz Coding Transmit power Receiving sensitivity MCS 0 23 dBm...

  • Page 78: Lte Specifications (Exclusively For Lte Device Variants)

    13.5 LTE specifications (exclusively for LTE device variants) 13.5.1 LTE module Parameter Description LTE parameters Data rate 100 Mbit/s (DL) 50 Mbit/s (UL) 3GPP Release 9 Supported Band 1: bandwidths 5 MHz, 10 MHz, 15 MHz, 20 MHz Band 3: 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz, 20 MHz Band 7: 5 MHz, 10 MHz, 15 MHz, 20 MHz...

  • Page 79: Gnss (Global Navigation Satellite System)

    13.5.2 GNSS (Global Navigation Satellite System) Parameter Description Satellite channels 12 channels, continuous tracking Frequency Narrow-band GPS: 1575.42 MHz Wide-band GPS and GLONASS: 1565 MHz ... 1606 MHz recommended Protocols NMEA 0183 V3.0 Acquisition time Hot start: 1 s Warm start: 29 s Cold start: 32 s Accuracy Horizontal: <2 m (50%);...

  • Page 80: Conducted Rx Sensitivity (Umts Bands)

    13.5.4 Conducted RX sensitivity (UMTS Bands) UMTS Bands Conducted RX (Receive) sensitivity (dBm) Primary (Typical) Secondary Primary / (Typical) Secondary (Worst Case) Band 1 0.1 % BER -111.4 -109.8 -106.7 (UMTS 2100) 12.2 kbit/s Band 8 0.1 % BER -111.8 -111.0 -103.7 (UMTS 900)

  • Page 81: Emc

    Parameter Conducted TX Notes (Transmit) power tolerances EGSM 900 CS +32 dBm ±1 dB GMSK mode, connectorized (Class 4; 2 W, 33 dBm) +27 dBm ±1 dB 8PSK mode, connectorized (Class E2; 0.5 W, 27 dBm) Table 36: Conducted TX power tolerances 13.6 EMC interference immunity...

  • Page 82: Network Range

    13.8 Network range 10/100/1000 Mbit/s twisted pair port Length of a twisted pair segment max. 328 ft (100 m) (for Cat5e cable) Table 37: Network range: 10/100/1000 Mbit/s twisted pair port 13.9 Power consumption/power output Device Power consumption Power output BAT450-F 1 ×...

  • Page 83: Scope Of Delivery 11N Device Variants (Non-Lte)

    14 Scope of delivery 11n device variants (non-LTE) Scope of delivery device variants featuring Configuration with characteristic value “9”  Number Article 1 × WLAN module 2 × WLAN module 1 × Device 1 × Safety and general information sheet 1 ×...
  • Page 84 Scope of delivery device variants featuring Configuration with characteristic value “Z”  Number Article 1 × WLAN module 2 × WLAN module 1 × Device 1 × Safety and general information sheet 1 × EU Declaration of Conformity 1 ×, 2 × or 3 × Protection cap (M12, plastic) for Ethernet port 1, Ethernet port 2 or V.24 premounted interface...

  • Page 85: Scope Of Delivery 11Ac Device Variants (Non-Lte)

    15 Scope of delivery 11ac device variants (non-LTE) Scope of delivery device variants featuring Configuration  with characteristic value “9” Number Article 1 × Device 1 × Safety and general information sheet 1 × EU Declaration of Conformity 1 ×, 2 × or 3 × Protection cap (M12, plastic) for Ethernet port 1, Ethernet port 2 or premounted V.24 interface...
  • Page 86 Scope of delivery device variants featuring Configuration  with characteristic value “Z” Number Article 1 × Device 1 × Safety and general information sheet 1 × EU Declaration of Conformity 1 ×, 2 × or 3 × Protection cap (M12, plastic) for Ethernet port 1, Ethernet port 2 or V.24 premounted interface 1 ×...

  • Page 87: 16 Scope Of Delivery Lte Device Variants

    16 Scope of delivery LTE device variants Scope of delivery device variants featuring Configuration  with characteristic value “9” Number Article 1 × Device 1 × Safety and general information sheet 1 × EU Declaration of Conformity 1 ×, 2 × or 3 × Protection cap (M12, plastic) for Ethernet port 1, Ethernet port 2 or premounted V.24 interface...
  • Page 88 Scope of delivery device variants featuring Configuration  with characteristic value “Z” Number Article 1 × Device 1 × Safety and general information sheet 1 × EU Declaration of Conformity 1 ×, 2 × or 3 × Protection cap (M12, plastic) for Ethernet port 1, Ethernet port 2 or V.24 premounted interface 1 ×...

  • Page 89: Accessories 11N Device Variants (Non-Lte)

    17 Accessories 11n device variants (non- LTE) Designation Order number BAT-ANT-N-3AGN-IP67 for N socket 942-110-001 (10 pieces) BAT-ANT-N-3AGN-F for N socket 942 047-001 (10 pieces) 50 Ω terminating resistors for closing unused antenna connections 942 118-001 (10 pieces) BAT450-F pole mounting For fastening the device to a pole.
  • Page 90 18 Accessories 11ac device variants (non- LTE) Designation Order number BAT-ANT-N-3AGN-IP67 for N socket 942-110-001 (10 pieces) BAT-ANT-N-3AGN-F for N socket 942 047-001 (10 pieces) 50 Ω terminating resistors for closing unused antenna connections 942 118-001 (10 pieces) BAT450-F pole mounting For fastening the device to a pole.
  • Page 91 19 Accessories LTE device variants Designation Order number BAT-ANT-N-3AGN-F for N socket 942 047-001 (10 pieces) LTE antenna 942 042-105 WWAN-A-I-41-S-O GNSS antenna 942 042-108 GNSS-A-O-90-S-P N to SMA adapter 942 042-106 WWAN-N-O-N-S 50 Ω terminating resistors for closing unused antenna connections 942 118-001 (10 pieces) BAT450-F pole mounting set For fastening the device to a pole.
  • Page 92 20 Underlying technical standards Name ECE No. 10 E type approval for use in vehicles EN 300 328 Electromagnetic compatibility and radio spectrum matters (ERM) - bandwidth transfer systems - data transmission equipment operating in 2.4 GHz ISM band and using spread spectrum modulation technology EN 301 893 Broadband radio access networks (BRAN) –...
  • Page 93 Name IEEE 802.3af Power over Ethernet IEEE 802.1D Switching, GARP, GMRP, Spanning Tree IEEE 802.1D Media access control (MAC) bridges (includes IEEE 802.1p Priority and Dynamic Multicast Filtering, GARP, GMRP) IEEE 802.1Q Virtual LANs (VLANs, MRP, Spanning Tree) IEEE 802.1Q Virtual Bridged Local Area Networks (VLAN Tagging, GVRP) IEEE 802.1w Rapid Reconfiguration...
  • Page 94 A list of local telephone numbers and email addresses for technical support directly from Hirschmann is available at https:// hirschmann-support.belden.com. This site also includes a free of charge knowledge base and a software download section. Hirschmann Competence Center The Hirschmann Competence Center is ahead of its competitors on three counts with its complete range of innovative services: ...
