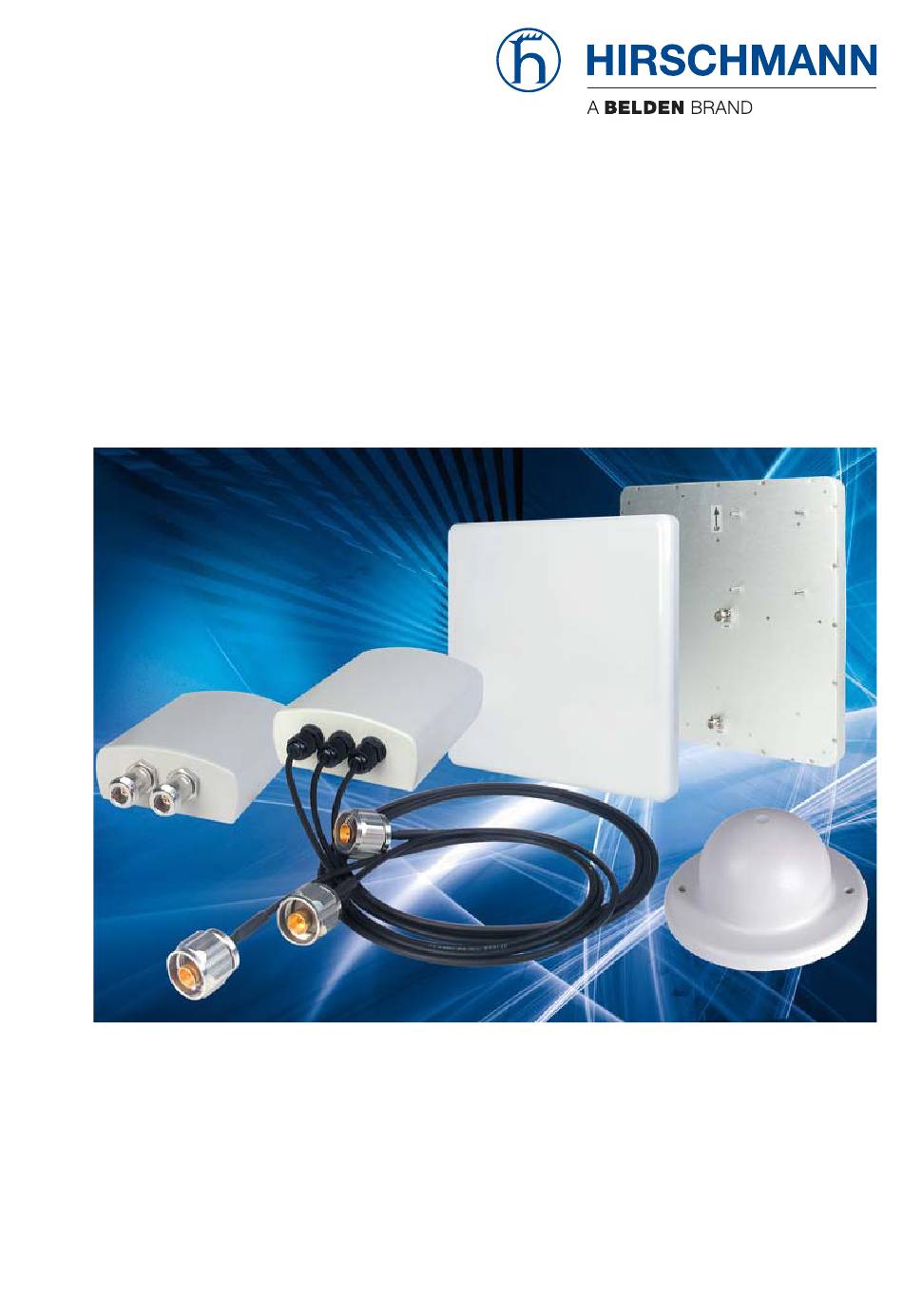

Antenna Guide
Wireless LAN
Antennas of the BAT family
BAT Antenna Guide BAT
Technical Support
Release 09 05/2015
https://hirschmann-support.belden.eu.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hirschmann BAT300 and is the answer not in the manual?

Questions and answers

Related Manuals for Belden Hirschmann BAT300

Summary of Contents for Belden Hirschmann BAT300

  • Page 1 Antenna Guide Wireless LAN Antennas of the BAT family BAT Antenna Guide BAT Technical Support Release 09 05/2015 https://hirschmann-support.belden.eu.com...
  • Page 2 The naming of copyrighted trademarks in this manual, even when not specially indicated, should not be taken to mean that these names may be considered as free in the sense of the trademark and tradename protection law and hence that they may be freely used by anyone. ©...

  • Page 3: Table Of Contents

    Contents Introduction Current BAT portfolio AP / Cable / Antenna assembly Antenna Selection Criteria External antennas Legal regulations for operation external antennas 4.1.1 Relevant for use in the USA and in Canada:FCC compliant antennas 4.1.2 Relevant for use in Japan: Omni-Directional Antennas 4.2.1 Omni-Directional Antenna for 2.4 GHz band 4.2.2 Omnidirectional antenna for 5 GHz band...
  • Page 4 Cables/Adapter Explanation of passive antennas in explosive hazard areas Antenna diagrams Index Further Support BAT Antenna Guide BAT Release 09 05/2015...

  • Page 5: Introduction

    Introduction Since 2004, Hirschmann Automation and Control GmbH has provided a continually expanding product portfolio relating to WLAN. Our product portfolio comprises the following integral WLAN network elements:  active devices such as access points, and clients  passive components such as cables, antennas, and overvoltage protectors With our product portfolio, we focus on a high industrial suitability.

  • Page 6: Current Bat Portfolio

    Current BAT portfolio In the following you get an overview of our devices. You also obtain information on which WLAN standards the devices support.  The products of the BAT300 family support the WLAN standards IEEE 802.11a/b/g/h and 802.11n and can be operated with a gross data rate of up to 300 MBit/s.
  • Page 7 BAT300-Rail BAT300-F BAT-F X2 BAT-F BAT-R BAT-C The devices are The devices are The devices are The devices are The devices are The devices are supplied in metal supplied in IP65/67 supplied with stainless supplied in a metal supplied in a metal supplied with an IP67 enclosures for mounting metal housings.

  • Page 8: Ap / Cable / Antenna Assembly

    AP / Cable / Antenna assembly Pigtail Optional Cable Access Point Optional Cable Protector (2 m, 5 m, 15 m / 6.56. ft, 16.4 ft, 49.2 ft) Linear 1 × – 3 × 1 × – 3 × 1 × – 3 × antenna BAT300-F / BAT-F /...

  • Page 9: Antenna Selection Criteria

    Antenna Selection Criteria  Take into account the national regulations that apply to the operation of antennas before considering any other criteria. See “Legal regulations for operation external antennas” on page 14. Note: Hirschmann recommends that you perform an on-site inspection and an analysis to prepare for the installation of a WLAN.
  • Page 10 BAT300 family OpenBAT family Art.-No Antenna Description BAT-C BAT300- BAT300-F BAT-R BAT-F Rail 943 981-002 BAT-ANT-N-6G-IP65 Omnidirectional antenna for 2.4 GHz band 943 981-003 BAT-ANT-N-5A-IP65 Omnidirectional antenna for 5 GHz band 942 110-001 BAT-ANT-N-3AGN-IP67 Omnidirectional antenna for 2.4 GHz band and 5 GHz band 942 047-001 BAT-ANT-N-3AGN-F...
  • Page 11 BAT300 family OpenBAT family Art.-No Antenna Description BAT-C BAT300- BAT300-F BAT-R BAT-F Rail 942 046-001 BAT-ANT-RSMA-2AGN- Omnidirectional antenna for 2.4 GHz band and 5 GHz band 943 981-004 BAT-ANT-N-6ABG-IP65 Hemispherical antenna for 2.4 GHz band and 5 GHz band 943 981-005 BAT-ANT-N-14G-IP23 Directional antenna for 2.4 GHz band...
  • Page 12 BAT300 family OpenBAT family Art.-No Antenna Description BAT-C BAT300- BAT300-F BAT-R BAT-F Rail 943 981-014 BAT-ANT-N-MiMo-18N- Directional antenna IP65 for 5 GHz band with 18 dBi gain 943 981-009 BAT-ANT-N-8G-DS-IP65 Polarization- diversity antenna for 2.4 GHz band, linear 943 981-010 BAT-ANT-N-9A-DS-IP65 Polarization- diversity antenna...
  • Page 13 BAT300 family OpenBAT family Art.-No Antenna Description BAT-C BAT300- BAT300-F BAT-R BAT-F Rail 943 981-101 BAT-ANT-N-LC-G-100m- Leaky wave IP65 conductor for 2.4 GHz, black, 100m 943 903-373 BAT-ANT-Protector m-f Overvoltage Protector 943 903-374 BAT-LAN-Protector IP68 Surge Arrestor LAN/PoE 943 903-360 BAT-Pigtail Adapter cable (N socket/RP-SMA...

  • Page 14: External Antennas

    External antennas This chapter is structured as follows:  “Legal regulations for operation external antennas” on page 14  “Omni-Directional Antennas” on page 21  “Sector Antennas” on page 34  “Directional Antennas” on page 40  “Radiating Cable Antennas (Leaky Cable)” on page 51 Legal regulations for operation external antennas You find additional information on approvals, certifications, and self-...
  • Page 15 Permitted band of operation Art.-No Antennas operating with this Description 2.4 GHz band 5.15 GHz ... 5.725 GHz ... device model: 5.25 GHz band 5.825 GHz band 942 046- BAT-ANT-RSMA-2AGN-R Omnidirectional antenna for 2.4 GHz band and 5 GHz band 942 110- BAT-ANT-N-3AGN-IP67 Omnidirectional...
  • Page 16 Permitted band of operation Art.-No Antennas operating with this Description 2.4 GHz band 5.15 GHz ... 5.725 GHz ... device model: 5.25 GHz band 5.825 GHz band 943 981- BAT-ANT-N-MiMo5-9N-IP65 Sectoral MiMoantenna for 5 GHz band 943 981- BAT-ANT-N-8G-DS-IP65 Polarization- diversity antenna for 2.4 GHz band, linear...
  • Page 17 Permitted band of operation Art.-No Antennas operating with Description 2.4 GHz band 5.15 GHz ... 5.725 GHz ... 5.825 this device model: 5.25 GHz band GHz band 942 046-001 BAT-ANT-RSMA-2AGN-R Omnidirectional antenna for 2.4 GHz band and 5 GHz band 942 110-001 BAT-ANT-N-3AGN-IP67 Omnidirectional...
  • Page 18 Permitted band of operation Art.-No Antennas operating with Description 2.4 GHz band 5.15 GHz ... 5.725 GHz ... 5.825 this device model: 5.25 GHz band GHz band 943 981-009 BAT-ANT-N-8G-DS-IP65 Polarization- diversity antenna for 2.4 GHz band, linear 943 981-014 BAT-ANT-N-MiMo-18N-IP65 Directional antenna for 5 GHz band with...

  • Page 19: Relevant For Use In Japan

    4.1.2 Relevant for use in Japan: The following table applies to OpenBAT variants with the characteristic value JP (Japan) that are labeled as follows:  "Contains MIC ID: 204-310014" "5GHz band: この製品は屋内においてのみ使用可能です "  Permitted band of operation Art.-No Antennas Description 2.4 GHz 5 GHz...
  • Page 20 Permitted band of operation Art.-No Antennas Description 2.4 GHz 5 GHz operating band band with this device model: 943 981- BAT-ANT-N- Omnidirectional Nein 5A-IP65 antenna for 5 GHz band 943 981- BAT-ANT-N- Sectoral Nein MiMo5-9N- MiMoantenna for IP65 5 GHz band Using antennas that are not on this list is prohibited.

  • Page 21: Omni-Directional Antennas

    Omni-Directional Antennas 4.2.1 Omni-Directional Antenna for 2.4 GHz band BAT-ANT-N-6G-IP65  Order Number: 943 981-002 Radiation Pattern Horizontal 2,400 MHz Vertical 2,400 MHz -120 -120 -150 -150 -120 -120 -150 -150 Frequency range 2400 MHz ... 2500 MHz Gain 6.0 dBi VSWR (voltage standing wave ratio) <...

  • Page 22: Omnidirectional Antenna For 5 Ghz Band

    Temperature −40 °F ... 176 °F (−40 °C ... +80 °C) Radome color Grey-white Radome material Fiber glass Weight 0.75 lb (0.34 kg) Dimensions ø 0.87 in × 9.84 in (ø 22 mm × 250 mm) Protection class IP65 Table 6: Environmental &...
  • Page 23 Frequency range 5150 MHz ... 5875 MHz Gain 5 dBi VSWR (voltage standing wave ratio) Polarization Linear, vertical HPBW (half power bandwidth) horizontal 360° HPBW (half power bandwidth) vertical 25° Max. Power Impedance 50 Ω Connector N female Table 8: Electrical Specification Temperature −49 °F ...

  • Page 24: Omnidirectional Antenna For 2.4 And 5 Ghz Band

    4.2.3 Omnidirectional Antenna for 2.4 and 5 GHz band BAT-ANT-N-3AGN-IP67  Order number: 942 110-001 (10 pcs.) inch Ø 12.9 Ø 0.50 Ø 12.9 Ø 0.50 Ø 20 Ø 0.79 Radiation Pattern horizontal horizontal 2.4 GHz 5 GHz H_Plane H_Plane 5150 2400 5250...
  • Page 25 vertical vertical 2.4 GHz 5 GHz E_Plane E_Plane 5150 2400 5250 2450 5350 2500 5450 5550 5650 5750 5850 Frequency range 2400 MHz ... 2485 MHz 5150 MHz ... 5850 MHz Gain 2.0 dBi 2.0 dBi VSWR (voltage standing wave ≤2.0 ratio) Polarization...
  • Page 26 BAT-ANT-N-3AGN-F  Order Number: 942 047-001 (10 pcs.) The antenna is supplied with all BAT-F and BAT-C devices. inch 0.87 The antenna is directly screwed on the BAT. Radiation Pattern Horizontal 2,400 MHz Horizontal 5,000 MHz BAT Antenna Guide BAT Release 09 05/2015...
  • Page 27 Vertical 2,400 MHz Vertical 5,000 MHz Frequency range 2400 MHz - 2500 MHz 5150 MHz ... 5875 MHz Gain 2.5 dBi 5.0 dBi VSWR (voltage standing wave ratio) Polarization Linear, vertical HPBW (half power bandwidth) horizontal 360° HPBW (half power bandwidth) vertical 30°...
  • Page 28 BAT-ANT-RSMA-2AGN-R  Order Number: 942 046-001 (10 pcs.) inch Radiation Pattern horizontal 2450 MHz vertical 2450 MHz horizontal 5250 MHz vertical 5250 MHz BAT Antenna Guide BAT Release 09 05/2015...
  • Page 29 horizontal 5750 MHz vertical 5750 MHz Frequency range 2400 MHz 5250 MHz and 5750 MHz Gain 3 dBi 5 dBi VSWR (voltage standing wave ratio) Polarization Linear, vertical HPBW (half power bandwidth) horizontal 360° HPBW (half power bandwidth) vertical 30° vertical 15°...

  • Page 30: Omni-Directional Dual-Band Antennae For Mimo For The 2.4 Ghz And 5 Ghz Bands

    4.2.4 Omni-directional dual-band antennae for MiMo for the 2.4 GHz and 5 GHz bands BAT-ANT-N-MiMoDB-5N-IP65  Order Number: 943 981-012 Radiation Pattern Horizontal 2,400 MHz Vertical 2,400 MHz port 1 port 1 port 2 port 2 -150 -150 port 3 port 3 -120 -120...

  • Page 31: Dual Band Hemispherical Antenna For 2.4 And 5 Ghz Band

    Frequency range 2400 MHz ... 2500 MHz 5150 MHz ... 5875 MHz Gain 3.5 dBi / 5.5 dBi VSWR (voltage standing wave ratio) Polarization 3 × Linear, vertical HPBW (half power bandwidth) horizontal 360° Downtilt 0° Max. Power Impedance 50 Ω Connector 3 ×...
  • Page 32 -120 -120 -120 -120 -150 -150 -150 -150 horizontal 5470 MHz vertical 5470 MHz -120 -120 -120 -120 -150 -150 -150 -150 17.7 Ø 86 Ø 3.39 inch 42.89 1.69 BAT Antenna Guide BAT Release 09 05/2015...
  • Page 33 Frequency range 2300 MHz ... 2500 MHz 4900 MHz ... 5935 MHz Impedance 50 Ω VSWR (voltage standing wave ratio) Polarization Linear, vertical Gain 6 dBi at 2.4 GHz 8 dBi at 5 GHz 3 dB beamwidth horizontal at 2.4 GHz 360° 3 dB beamwidth horizontal at 5 GHz 173°...

  • Page 34: Sector Antennas

    Sector Antennas 4.3.1 Directional antenna for the 2.4 GHz band with 8 dBi gain BAT-ANT-N-8G-DS-IP65  Order Number: 943 981-009 Radiation Pattern Horizontal 2,400 MHz Vertical 2,400 MHz -120 -120 -150 -150 -150 -150 -120 -120 Table 22: Directional characteristic Frequency range 2400 MHz ...
  • Page 35 Max. Power 10 W (CW) at 77 °F (25 °C) Connector 2 × N female Table 23: Electrical Specification Dimensions 3.98 in × 3.15 in × 1.38 in (101 mm × 80 mm × 35 mm) Weight 0.24 lb (0.11 kg) Radome material LEXAN EXL 9330 Radome color...

  • Page 36: Polarization-Diversity Antenna For 5 Ghz Band, Linear

    4.3.2 Polarization-diversity antenna for 5 GHz band, linear BAT-ANT-N-9A-DS-IP65  Order Number: 943 981-010 Radiation Pattern horizontal 5470 MHz vertical 5470 MHz -120 -120 -150 -150 -150 -150 -120 -120 3.19 inch Frequency range 5150 MHz ... 5925 MHz Impedance 50 Ω...
  • Page 37 VSWR (voltage standing wave ratio) Polarization dual linear, ± 45° slant Gain 9 dBi 3 dB beamwidth horizontal 70° 3 dB beamwidth vertical 60° Downtilt 0° Isolation between ports 20 dB Front to back ratio 20 dB Max. Power 10 W (CW) at 77 °F (25 °C) Connector 2 ×...

  • Page 38: Sectoral Mimoantenna For 5 Ghz Band

    4.3.3 Sectoral MiMoantenna for 5 GHz band BAT-ANT-N-MiMo5-9N-IP65  Order Number: 943 981-013 Radiation Pattern horizontal – connection 1 vertical – connection 1 -120 -120 -150 -150 -150 -150 -120 -120 horizontal – connection 2 vertical – connection 2 -120 -120 -150 -150...
  • Page 39 horizontal – connection 3 vertical – connection 3 -120 -120 -150 -150 -150 -150 -120 -120 Frequency range 5150 MHz ... 5875 MHz Impedance 50 Ω VSWR (voltage standing wave ratio) Polarization 3 × linear vertical / horizontal / +45° Gain 9 dBi 3 dB beamwidth horizontal...

  • Page 40: Directional Antennas

    Directional Antennas 4.4.1 Directional antenna for the 2.4 GHz band with 14 dBi gain BAT-ANT-N-14G-IP23  Order Number: 943 981-005 Radiation Pattern Horizontal 2,400 MHz Vertical 2,400 MHz -120 -120 -150 -150 -150 -150 -120 -120 BAT Antenna Guide BAT Release 09 05/2015...
  • Page 41 inch 7,87 1,57 252,99 9,96 Frequency range 2300 MHz ... 2500 MHz Impedance 50 Ω VSWR (voltage standing wave ratio) Polarization vertical Gain 14 dBi 3 dB beamwidth horizontal 35° 3 dB beamwidth vertical 30° Downtilt 0° Front to back ratio 20 dB Max.
  • Page 42 3.28 ft (1 m ) with N male connectors at both ends. Pigtail, R-SMA male to N female Mounting material Table 34: Cable and Accessories Note: Applies for use in the EU: If you use the antenna BAT-ANT-N-14G- IP23 in combination with OpenBAT family devices, use the supplied 1 m (3.28ft) antenna cable in combination with BAT-CLB-2 N m-f cable.

  • Page 43: Directional Antenna For 5 Ghz Band With 18 Dbi Gain

    4.4.2 Directional antenna for 5 GHz band with 18 dBi gain BAT-ANT-N-18A-V-IP65  Order Number: 943 981-006 Due to their compact design, several of these antennas can be mounted on a single post. For better separation of the spatial streams with MiMo, you mount the antennas with different alignments (polarizations).
  • Page 44 Polarization Linear, vertical HPBW / horizontal 18° HPBW / vertical 18° Front to back ratio > 30 dB Power handling 6 W (CW) Impedance 50 Ω Connector N Jack Table 35: Electrical Specification Windload @ wind speed 23.4 lbf at 64 m/h (104 N at 216 km/h) Temperature −49 °F ...
  • Page 45 1st antenna: vertical 2nd antenna: horizontal 3rd antenna: 45° horizontal Radiation Pattern horizontal 5470 MHz vertical 5470 MHz -120 -120 -150 -150 -150 -150 -120 -120 Frequency range 5150 MHz ... 5350 MHz 5470 MHz ... 5875 MHz Gain 23 dBi VSWR (voltage standing wave ratio) <...

  • Page 46: Directional Antenna For 5 Ghz Band With A Gain Of 23 Dbi

    3.28 ft (1 m ) with N male connectors at both ends. Pigtail, R-SMA male to N female Mounting material for wall and mast mount Table 40: Cable and Accessories 4.4.3 Directional antenna for 5 GHz band with a gain of 23 dBi BAT-ANT-N-23A-VH-IP65 ...
  • Page 47 Connection: vertical / polarization: horizontal Connection: vertical / polarization: vertical (5,470 MHz) (5,470 MHz) -120 -120 -150 -150 -150 -150 -120 -120 Frequency range 5150 MHz ... 5875 MHz Gain 23 dBi VSWR (voltage standing wave ratio) < 1.7 Polarization dual Linear, vertical and horizontal HPBW / horizontal 9°...

  • Page 48: Directional Antenna For 5 Ghz Band With 18 Dbi Gain

    4.4.4 Directional antenna for 5 GHz band with 18 dBi gain BAT-ANT-N-MiMo-18N-IP65  Order Number: 943 981-014 MiMo is achieved via polarization diversity. Relevant for North America: See “Legal regulations for operation external antennas” on page 14. 0.55 2.60 inch +45°...
  • Page 49 Radiation Pattern Radiation Pattern Amplitude [dB] Amplitude [dB] Azimuth [deg] -120 -120 -150 -150 -150 -150 -120 -120 Elevation [deg] Horizontal-Plane: Copolar Vertical-Plane: Copolar horizontal - connection on the left (–45°) vertical - connection on the left (–45°) Radiation Pattern Radiation Pattern Amplitude [dB] Amplitude [dB]...
  • Page 50 Band 1 Band 2 Band 3 Frequency range 4900 MHz ... 5150 MHz 5150 MHz ... 6000 MHz 6000 MHz ... 6100 MHz VSWR (voltage standing wave ratio) Gain 17 dBi 18 dBi 16 dBi HPBW / vertical 20° 15° Table 44: Electrical Specification Polarization 0°, +/−45°...

  • Page 51: Radiating Cable Antennas (Leaky Cable)

    Radiating Cable Antennas (Leaky Cable) 4.5.1 Leaky Cable for 2.4 GHz; black Radiating cables are coaxial cables that are equipped with small slots in their shields at regular intervals that operate as antennas. This leads to a homogeneous field around the cable. 100 m;...
  • Page 52 Halogen free and flame retardant outer sheath Low corrosive gas emission according to IEC 60754-2 Flame retardant according to IEC 60332-1 and IEC 60332-3 cat. C Low smoke emission according to IEC 61034 Table 51: Flammability Characteristics Leaky Cable 2 × N-connector, preassembled 1 ×...
  • Page 53 BAT-ANT-N-LC-G-100m-IP65  Order Number: 943 981-101 Cable length 100 m, 328 ft Cable specification 2 × N male connectors; 0.15 dB at 2.4 GHz Table 53: Specification Frequency band 2000 MHz - 2900 MHz Antenna connector N-type male Table 54: Radio technology Operating temperature −40 ºF ...
  • Page 54 Figure 1: Mounting a leaky wave conductor in the tunnel. Fastening clips are included in the delivery. BAT Antenna Guide BAT Release 09 05/2015...
  • Page 55 Cables/Adapter All antennas are supplied with 1 m cable / N-plug to N-jack and pigtail. BAT-CLB-2 N m-f, BAT-CLB-2 N f-f  Order Number: m-m: 943 903-513 m-f: 943 903-514 Length 6.56 ft (2 m) Diameter 6 mm Attenuation 1.4 dB / 2.4 GHz 3 dB / 5 GHz Connector N male to female...
  • Page 56 BAT-CLB-5 N m-f  Order Number: 943 903-516 Length 16.4 ft (5 m) Diameter 13 mm Attenuation 1.3 dB / 2.4 GHz 2.3 dB / 5 GHz Connector N male/ N female Table 61: Characteristics Temperature range −40 ºF ... +185 ºF (−40 ºC ... +85 ºC) Installation temperature range −20 °C ...
  • Page 57 BAT-CLB-15 N m-f  Order Number: 943 903-515 Length 49,2 ft (15 m) Diameter 13 mm Attenuation 3 dB / 2.4 GHz 4 dB / 5 GHz Connector N male/ N female Table 63: Characteristics Temperature range −40 ºF ... +185 ºF (−40 ºC ... +85 ºC) Installation temperature range −20 °C ...
  • Page 58 BAT-Pigtail  Order Number: 943 903-360 Length 0.66 ft (0.2 m) Diameter 6 mm Attenuation 0.5 dB / 2.4 GHz 1 dB / 5 GHz Connector N female/ RPSMA-Plug Table 65: Characteristics BAT Antenna Guide BAT Release 09 05/2015...
  • Page 59 BAT-ANT-Protector m-f  Order Number: 943 903-373 The BAT-ANT-Protector m-f is a bandpass with electrical insulation. It helps prevent damage due to electrostatic discharging. The BAT-ANT-Protector m-f can enable a watertight connection to the switch cabinet. This device is strongly recommended to be used in- and outdoor wherever electrical discharge, overvoltage or unclear grounding occur.
  • Page 60 BAT-LAN-Protector IP68  Order Number: 943 903-374 Overvoltage protector for the PoE/LAN cable. Please refer to the Outdoor Installation Guide for how to mount and plan the installation. Main path connectors RJ45 jack (female) – RJ45 jack (unprotected side – protected side) Mounting via mounting bracket...
  • Page 61 Explanation of passive antennas in explosive hazard areas Hirschmann BAT antennas are passive devices which are not able to increase the power by themselves. Devices which are specified in accordance with the ATEX directive complying with the technical standards EN 60079-0 and EN 60079-15 can be operated with all associated Hirschmann BAT antennas.
  • Page 62 Antenna diagrams This chapter was produced with the generous support of Huber+Suhner GmbH. Polarization and transmission  The following section explains the vertical and horizontal polarization:  Vertical polarization With vertical polarization, the electrical field runs perpendicular to the earth’s surface. The magnetic field runs perpendicular to the electrical field in transmission direction ‘z’...
  • Page 63 Figure 3: Electrical field in transmission direction ‘z’ Interpreting antenna diagrams  The antenna diagrams used in this document show the directional characteristic of the relevant antenna in horizontal and vertical cross- sections. When interpreting antenna diagrams, note the following: ...
  • Page 64 Omni-directional antenna, Omni-directional antenna, vertical cross-section, horizontal cross-section, antenna viewed from the side antenna viewed from above in all angles ca. 0 dB side lobe (~ -12 dB) side lobe (-10 dB) -120 -120 -150 -150 main lobe (0 dB) main lobe (0 dB) -120 -120...
  • Page 65 See “Interpreting antenna diagrams” on page 64. This means that the antenna transmits 1/10 of the maximum output at an angle of −30°. Example: The above antenna diagram shows the output at 150° as −9 decibels. See “Interpreting antenna diagrams” on page 64. This means that the antenna transmits 1/8 of the maximum output at an angle of 150°.
  • Page 66 Index ATEX zone II Radiating cable Technical Questions Training Courses BAT Antenna Guide BAT Release 09 05/2015...
