  • Page 1 USER’S MANUAL RemovablePrinter BTP-P36 Shandong New Beiyang Information Technology Co., Ltd.

  • Page 2: Table Of Contents

    BTP-P36 User’s Manual Contents 1 Introduction..................- 1 - Outline..................- 1 - Main features..................- 2 - 2 Main technical specification............- 3 - 2.1Technical specification................- 3 - 2.2Paper specification.................. - 6 - 2.2.1 Parameters of label paper............. - 6 - 2.2.2 Parameters of black label pape............
  • Page 3 BTP-P36 User’s Manual 5.2 WIFI interface..................- 27 - 6Installation printer................ - 29 - 6.1 The host accessories................- 29 - 6.2 Precautions for using the printer............- 29 - 6.3 Paper roll installation................- 31 - 6.3.1 Confirmation of printing paper............ - 31 - 6.3.2 Install / replace the paper roll............- 32 -...
  • Page 4 Information in this document is subject to change without notice. SHANDONG NEW BEIYANG INFORMATION TECHNOLOGY CO., LTD. (hereinafter referred to as “SNBC”) reserves the right to improve product as new technology, components, software, and firmware become available. If users need further data about this product, please feel free to contact your dealer or the manufacturer.
  • Page 5 OHSAS18001 Occupational Health and Safety Management System Certification IECQ QC 080000 Hazardous Substance Process Management System Certification BTP-P36 has passed the following certifications: Warning This is class A product. The product may cause radio interference in the working environment. Users need to take...
  • Page 6 BTP-P36 User’s Manual General Safety Information Before installing and using the printer, please read the following items carefully.  Safety instructions Warning: Don’t touch the tear bar of printer. Warning:The print head is a thermal element and it is at high temperature during printing or just after operation.Therefore please do...
  • Page 7 BTP-P36 User’s Manual Do not let the water or the electric materials (like metal) go into the printer. If this happen, turn off the power. The printer cannot print in the state without paper, otherwise it will seriously damage the print head.
  • Page 8 BTP-P36 User’s Manual - 7 -...

  • Page 9: Introduction

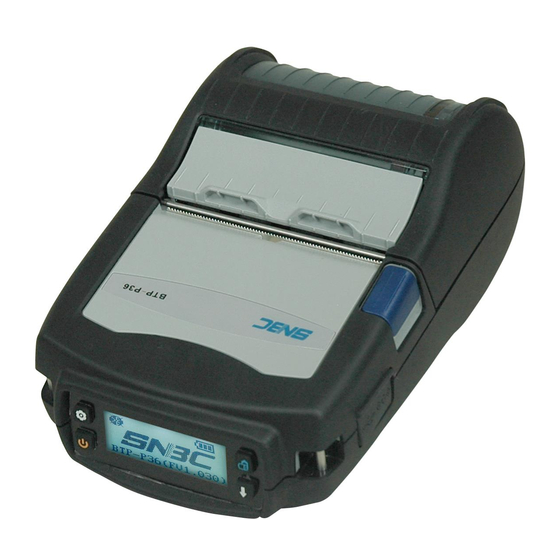

    BTP-P36 User’s Manual 1 Introduction 1.1 Outline BTP-P36 is a thermal removablelabel printer with high quality, fast speed, stable performance, long standby time and small portability. It is widely used in retail, government, law enforcement, insurance, logistics and other fields.

  • Page 10: Main Features

    BTP-P36 User’s Manual other accessories, and optional battery charger, car-mounted charger, IP54 protective cover, shoulder strap, pocket and other accessories. 1.2 Main features The method to load the paper is convenient  Simple operation and easy maintenance  Printing supports label paper and marked paper ...

  • Page 11: Main Technical Specification

    BTP-P36 User’s Manual 2 Main technical specification 2.1 Technical specification The parameters are under the standard test paper conditions. BTP-P36 removable printer Model Print method Thermal, position in the middle Print resolution 203dpi Print width (Max.) 72mm Max102mm/s. Print speed Factory default value is 76.2mm/s...
  • Page 12 BTP-P36 User’s Manual 1D barcode (ESC/POS UPC-A, UPC-E, JAN13 (EAN13), JAN 8 (EAN8), command) CODE39, ITF, CODABAR, CODE93, CODE128 2D barcode (ESC/POS PDF417, QRCODE, MAXICODE, GS1 command) Built-in standard ASCII character (fontA~H,P~V,0,GS); Built-in scalable character set; user-defined dots or scalable character set; Users download...
  • Page 13 BTP-P36 User’s Manual paper roll ID 12.5mm～19.1mm paper roll OD Max 67mm Paper width 25.4-80mm(Continuous and adjustable) Battery 2600mAh, lithium battery capacity Charging Can be charged without take out the battery method Charging time 3.5 hours Battery Continuous 85mins printing time...

  • Page 14: Paper Specification

    BTP-P36 User’s Manual Ratings dropping 1.5 meters resistance Air discharge 10KV, pass Contact discharge 8KV, pass Vibration can work normally under vibration condition (carry-on or resistance vehicle travel may have vibration) Reference 186.5mm×117mm×81.5mm(width x length x height) Size Physical features Reference About 638g（contain battery）...
  • Page 15 BTP-P36 User’s Manual When the  printer leave the factory, sensor position configuration according to the requirement. The mark sensor is located on the left side (paper feed direction) of the paper by default, and is used to detect the mark of paper front with width of 80 mm, Figure 1 shows the position.

  • Page 16: Print And Tear-Off Position

    BTP-P36 User’s Manual reflectivity of the mark part is less or equal to 15%, and the reflectivity of the other part of the paper in the direction of the paper mark width is more than or equal to 85%. There should be noany pattern in the area between the two marks like advertisement.

  • Page 17: Tear Off Position

    BTP-P36 User’s Manual Distance from the print Distance from the print Paper Print content to the left content to the right width (L1) width (L2) edge(L3) edge(L4) 80mm 72mm 25.4mm 25.4mm 2.3.2 Tear off position - 9 -...

  • Page 18: 3Appearance And Components

    BTP-P36 User’s Manual 3Appearance and components 3.1 Apperance and components 1——Bottom cover 2——Top cover of paper 3——Top cover cabinet 4——Liquid crystal button 5——LCD 6——Shoulder strap 7——Communication 8——Paper cabinet 9——Belt clip interface sealed cover button 10——Battery 11——Print platen roller 12——Transmissivesensor1 13——Print channel board 14——Reflective...

  • Page 19: Accessories Introduction

    BTP-P36 User’s Manual 19——Tear-off bar 20——Reflective sensor 21——Mechanism bracket 22——Platen roller pothook 23——Transmissive2 24——Print head Caution: Paper guide centering 25.4mm ~ 80mm continuously adjustableto  adapt to a variety of printer paper width 3.2 Accessories introduction The following contents are introduction and pictures of accessories like battery, power cable, power adapter, battery charger, car charger, IP54 protective cover, shoulder strap.
  • Page 20 BTP-P36 User’s Manual 1.American 2APower Standard area use adapter 2.Charge the (American printer standard) 3.Match lithium battery charging stand to charge single lithium battery 1.British standard 2APower areas use adapter (British 2.Charge the standard) printer 3.Match up a lithium battery...
  • Page 21 BTP-P36 User’s Manual lithium battery Use for charging a lithium battery Lithium battery charging cradle Connect patch cord 5APower and lithium battery adapter charging cradle and charge four lithium battery at the same time 1.Chinese standard AC power cord area use (Chinese 2.
  • Page 22 BTP-P36 User’s Manual 1. British standard AC power cord areas use (British 2. 5A Power standard) adapter AC power cord 1.European AC power cord standard area use (European 2. 5A Power standard) adapter AC power cord One pin Connect 5A power...
  • Page 23 BTP-P36 User’s Manual Pocket This is optional accessory used for BTP-P36 removable printer Shoulder strap This is optional accessory used for BTP-P36 - 15 -...

  • Page 24: System Function And Settings

    BTP-P36 User’s Manual 4 System function and settings 4.1 Explanation of panel 4.1.1 Appearance panel 4.1.2 Button function Button Function Explanation In the power on state, press [Power] button for a long time to turn off the printer. In the power off state, press the [Power] button for a long time to turn on the printer.

  • Page 25: System Menu

    BTP-P36 User’s Manual the current menu operation is selected and executed Press the [paper feed] button in the idle Paper feed state: paper feed Press the [paper feed] button in the Pause printing working state: pause printing Press the [paper feed] button in the pause state: 1.
  • Page 26 BTP-P36 User’s Manual sensor Print 00~30 darkness Print 02~04 IPS speed Paper feed No feeding.Start when start calibration. Fix position to label Close No feeding. Start cover and calibration. Fix feed paper position to label retract POS command paper can be optional.
  • Page 27 BTP-P36 User’s Manual offset Vertical 0~199 offset Tear-off 0~199 position Detect Able; Unable paper when idle Back to previous level Paper 0~255 sensor threshold Mark 0~255 sensor threshold Label light 0~255 Sensor setup strength Code setup Mark light 0~255 strength...
  • Page 28 BTP-P36 User’s Manual Gateway Gateway IP protocol TCP UDP WLAN port WLAN port setup WLAN Port information information BT code information Back to previous level Sleep time Not sleep 10s 20s 30s 60s3min 5min The time of Not power off...

  • Page 29: Main Parameter Setup

    BTP-P36 User’s Manual buzzer USB mode API modeClass mode Back to previous level Factory reset Factory reset Yes/No Save exit Save exit Save /Neglect Print Printer information output self-test Print Calibrate the current light strength of sensor calibration Cancel Cancel caching data of printing...
  • Page 30 BTP-P36 User’s Manual Use the “UP / DOWN” button to select the “SETUP” menu item. Print mode  Set the print mode in the "Setup / Print setup / Print mode Setup" menu item. Use the “Up / Down” button to select the mode. Optional modes are “peel-off mode”, “tear-off mode”, “rewind mode”.
  • Page 31 BTP-P36 User’s Manual Optional speed: 2 IPS~4IPS Paper type selection  In the menu "Setup / Paper setup / Paper type", set the current paper type. The optional type: "label paper", "marked paper" and "punched paper". Wireless configuration  In the "Setup" menu item, select "Setup / Wireless configuration", you can set the printer's network configuration.
  • Page 32 BTP-P36 User’s Manual In the "Configuration / Other Configuration / Language Setup" menu item, set the system language type Command set type selection  In the "Configuration / Other Configuration / Command Language" menu item, set the command language type System sleep time setup ...
  • Page 33 BTP-P36 User’s Manual When the paper roll is loaded in the paper cabinet, a print calibration is made. The paper and sensor calibration are made. Press the "Setup" button to enter the first level menu, and select "print calibration" to set.

  • Page 34: Buzzer Function

    BTP-P36 User’s Manual Paper end status NO print head 4.4 Buzzer function Status Explanation Music when starts up Prompt music of on and off Ring for a long time The printer has a fatal error. 1. The printer has a general error or an alert Ring for a short time 2.

  • Page 35: Printer Communication Interface

    BTP-P36 User’s Manual 5 Printer communication interface This printer can be connected via USB, WIFI interface and other devices. 5.1 USB interface USB interface supports USB2.0 protocol. The interface socket using MINI USB B-type standard socket: Interface signal definition: Cable...
  • Page 36 BTP-P36 User’s Manual 2) Support protocols   ICMP    DHCP  TFTP  HTTP  - 28 -...

  • Page 37: 6Installation Printer

    BTP-P36 User’s Manual 6Installation printer 6.1 The host accessories This product configures with standard power adapter, belt clip, USB cable and other accessories, and optional configuration is battery charger, car charger, IP54 protective cover, shoulder strap and other accessories. When unpacking, check the packing list whether has the missing or damaged items.
  • Page 38 BTP-P36 User’s Manual Remarks The printer fixed with battery.It can execute printing task when  charging. Input voltage: AC100-240VAC / 50 ~ 60Hz;  Charging cradleis as shown below, put the battery into the charging cradle, the plastic buckle on the battery will mate the sub-docking on charging cradle, and when you hear "pop", Indicating that the...

  • Page 39: Paper Roll Installation

    BTP-P36 User’s Manual When install the battery, make sure the battery is connected in place to  prevent the battery from dropping. Should use the manufacturer recommended power adapter or its  equivalents; When plugging the plug of power adapter, you should hold the ...

  • Page 40: Install / Replace The Paper Roll

    BTP-P36 User’s Manual 6.3.2 Install / replace the paper roll 1) Press the [open] button of paper top cover, open the top cover. Put the paper roll into the paper cabinet, close the top cover. When print the label paper, open the paper cabinet and open the peel-off cover.

  • Page 41: Printer Connecting Installation

    BTP-P36 User’s Manual The paper roll should be wrapped tightly. Otherwise, it may cause  paper jam or other errors. The paper roll should be placed in the paper house smoothly, avoid tilt,  otherwise it may affect the printing and paper feeding;...

  • Page 42: Printer Power On And Self-Test

    BTP-P36 User’s Manual 2) Put the sphere parts into the groove. Then put the right belt clip cradle into the groove, refer to ① in figure above. Finally, put the belt clip③ into the groove. 3) Wrest the pan head self-tapping screwinto bottom cover using screwdriver.

  • Page 43: Connect The Communication Interface

    BTP-P36 User’s Manual 4) The printer begins printing the self-test page. 6.6 Connect the communication interface BTP-P36 has two communication modes: Wired communication: USB interface  Wireless communication: WIFI;  6.6.1 USB interface connection 1. Insert the USB interface cable into the match interface;...
  • Page 44 BTP-P36 User’s Manual Afterre-opening the printer, it can connect the router automatically. For WIFI connection, please refer to Appendix C for detailed operation.  Caution: WIFI connection signal is the most strong when ground is open. The used equipment are different such as PDA, mobile phone, tablet and computer, the connection signal will be different;...

  • Page 45: Routine Maintenance

    BTP-P36 User’s Manual 7 Routine maintenance Caution:  Before starting routine maintenance, ensure that the battery of printer is taken out.  Do not use organic solvents like gasoline or acetone.  When cleaning the sensors, do not turn on the printer power until the pure alcohol has completely evaporated.

  • Page 46: Cleaning Marked Sensor

    BTP-P36 User’s Manual 7.2 Cleaning marked sensor When any of the following cases occur, the marked sensor should be cleaned. The printer alarms the paper end during printing. The printer does not alarm when paper end. The printer can not read the mark effectively.
  • Page 47 BTP-P36 User’s Manual Turn off the power. Press the cover open button to open the top cover of printer. Check if there is any jammed paper in the paper path. If it exists, please remove the paper folds, and cut the paper head.

  • Page 48: Troubleshooting

    BTP-P36 User’s Manual 8 Troubleshooting When the printer has any problem, refer to this chapter for solution. If the problem still cannot be solved, please contact your local dealer or manufacturer for assistance. 8.1 Printer doesn’t work Problem Possible causes...

  • Page 49: Problems During Printing

    BTP-P36 User’s Manual 8.3 Problems during printing Possible Problem Solution causes Wrong paper Paper feed Replace with matched paper roll type continuously when Marked Contact your local dealer or manufacturer. printing sensor errors Paper cannot be sent Open the top cover, check the paper Paper jam out normally.

  • Page 50: Appendix

    Windows Vista / Windows Server 2008 / Server 2012/Windows 7 / Windows 8/ Windows10 operating systems drivers. 9.2 WIFI connection 1. Connect the BTP-P36 printer with windows system via WIFI. Turn on the Internet setup tool of windows system: - 42 -...
  • Page 51 BTP-P36 User’s Manual 2. After turning on successfully, read the right parameter of WIFI: 2. Click “on” to set communication mode, such as infrastructure mode. Other information setup: remark: The printer is regarded as terminal device connected with router when the status is infrastructure mode.
  • Page 52 BTP-P36 User’s Manual 3. AD-Hocmode: remark: The printer is regarded as router providing other terminal inserting it when the status is AD-Hocmode: 4. Recover the default value (recover to the factory parameter setup right now) - 44 -...

  • Page 53: Fcc Statement

    BTP-P36 User’s Manual 9.3FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
