Buyers SaltDogg 92451SS Instruction Manual

92451SS

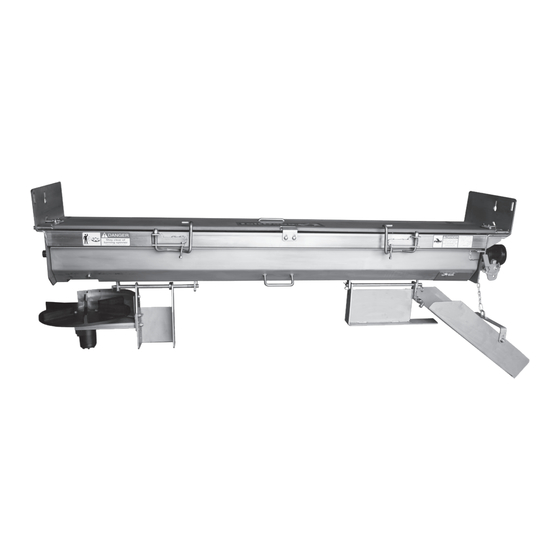

Berm Chute Kit
Installation and Operation
1. Remove the Cover Plate from the Passenger Side
bottom of the Lower Tray and reinstall it on the Driver Side
2. Move Anti-Spill Plate from Driver Side to Passenger Side
3. Install the Berm Chute Hanger Bracket to the Lower
Tray on the Passenger Side
4. Install the Berm Chute to the Hanger Bracket using the
included Hinge and Cotter Pins
5. Install the Support Bar to the Berm Chute using the
included 1/2-13 Hex Head Cap Screws, Washers and
Nylon Locking Nuts
6. Connect the Chain to the Support Bar
7. Connect the other end of the Chain to the Chain Anchor
on the Spreader NOTE: If you are using this kit with a
spreader other than SaltDogg model 92450SSA you will
need to attach (via welding) the additional Chain Anchor in
the hardware kit to your spreader

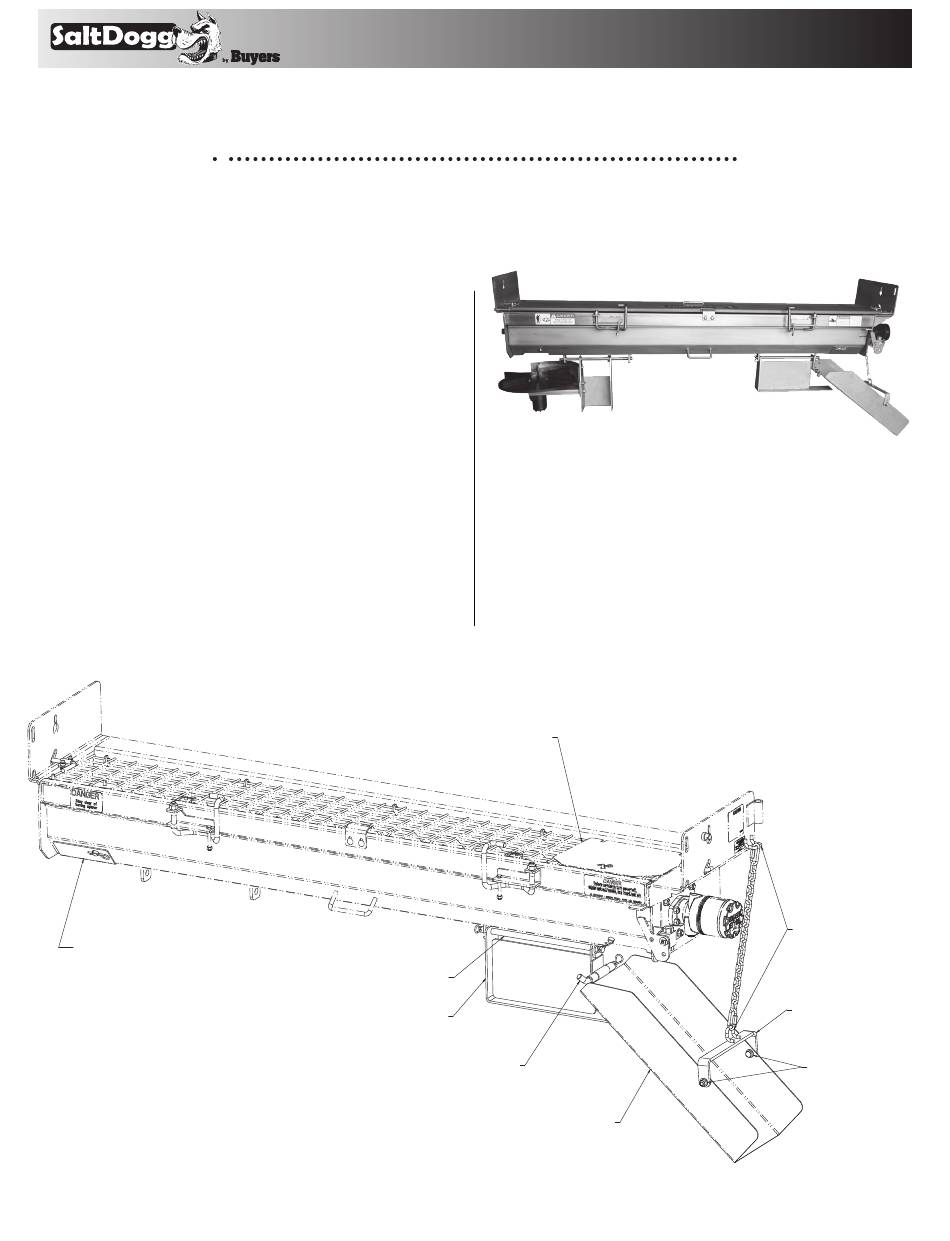

NOTE: TOP COVER NOT SHOWN FOR CLARITY
COVER PLATE -
MOVE TO DRIVER SIDE
OPENING IN BOTTOM TRAY
TM
Instruction Manual
HINGE ROD
BERM CHUTE HANGER BRACKET
8. Confirm all clearances by raising and lowering the bed
then adjust the Chain length as necessary and remove
excess links if desired
9. Adjust the hydraulic system so the Auger motor changes
direction and moves material to the passenger side
ANTI SPILL PLATE -
NEEDS MOVED TO
PASSENGER SIDE
HINGE PIN
BERM CHUTE
1
