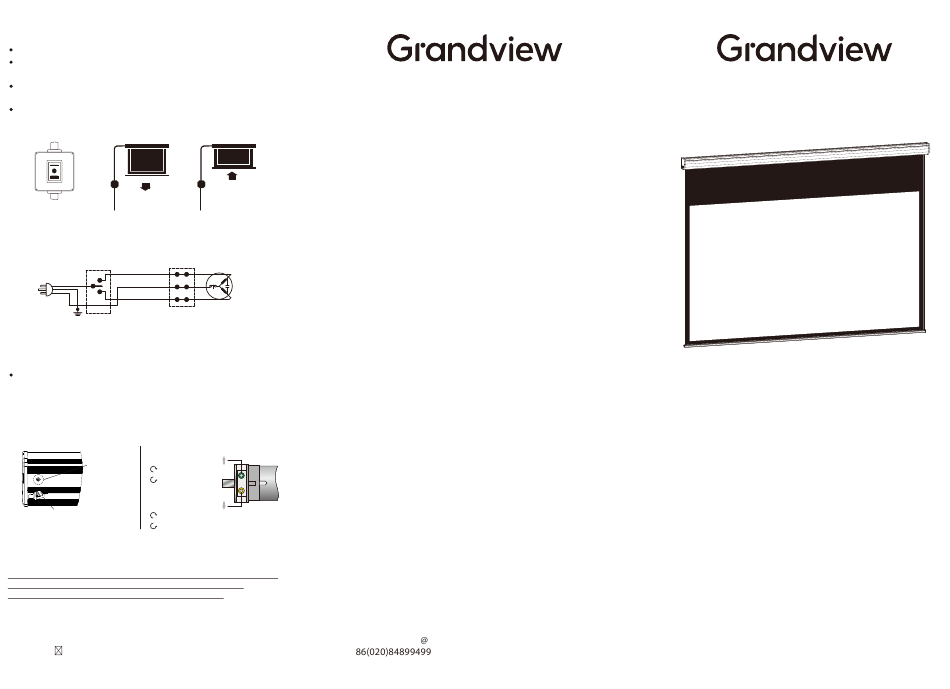

Grandview LEGACY Series Instruction Manual

Motorized screen (M) manual control method:
Screen manual control in-line switch (Figure 1)
Extend screen (Figure 2): Press "=" switch, screen will
automatically lower down to desire limit position.
Retract screen (Figure 3): Press "-" switch, screen will
autoatically retract to setting limit position.
Stop screen: Press middle "o" switch, screen will stop
immediately.
Extend screen
Figure 1 Figure 2
Motorized screen (M) circuit diagram:
Screen retract
(Black wire)
K1
Common ground
(Blue wire)
AC 220~230V Screen extend
(Grey wire)
50~60Hz,40W
Yellow Green
Screen retract height (Up limit) and extend height (down limit)
adjustment:
If have to adjust height limit for installation environment
reasons, you can adjust the limit setting by using a provided
adjustment bar insert into the adjustment hole which on the
left down area of motor. As below figure:
Note: When screen retract height over the setting limit, fabric will
automatically lower down. For this case, please press stop switch (By manual
or RF control), micro adjust on green knob in clockwise direction is fine.
Green hole
Retract limit (up limit)
Screen up
Clockwise direction ：
and down
retract less
limit setting Anti-clockwise direction ：
retract more
area
Yellow hole
Extend height (down limit)
Screen up limit
Clockwise direction ：
extend less
setting position
Anti-clockwise direction ：
extend more
Note:
Please operate carefully, in case of screen over retract causing motor or
screen damage.While extending more fabric, please add black
boarder within 10CM or it will cause fabric break and fall.
Screen electric data: Voltage AC220-230V/50-60Hz, current 0.5A,
power 100W.
RF remote (F): Voltage 3V, use CR2032*2 battery;
Radio Freqency: 868MHz
IR remote : Voltage 3V, use CR2032 battery
Maintain Screen:
For long lasting enjoying the best viewing experience of
Retract screen
Grandview screen, please retract screen into casing
Figure 3
while not use. Before retracting into casing, please check
screen front and back side to ensure surface has no
obvious dust, insects or anything dirty. If there's anything
dirty, please use soft cloth clean it carefully first.
Cleaning Screen:
M
Please use warm water mixed with mild detergent slightly
clean the dirt on screen casing or surface (Please clean
gentle instead of roughly). Then use a clean soft cloth or
towel dry it, please be noted it can't be natural air drying.
Please don't use any solvent or chemical liquid or any
frictional cleaner, or these cleaner will cause permanent
damage on fabric.
electric motor
Guangzhou Grandview Crystal Screen CO., Ltd
No.43, International Ave , Hualon g Town, Panyu district,
Guangzhou, China.
Email Address: info grandview.com
Call
LEGACY SERIES MOTORIZED SCREEN
INSTRUCTION MANUAL
In-line switch motorized screen &
Intelligent control motorized screen
Model:
LE-M
LE-MI
LE-MF
