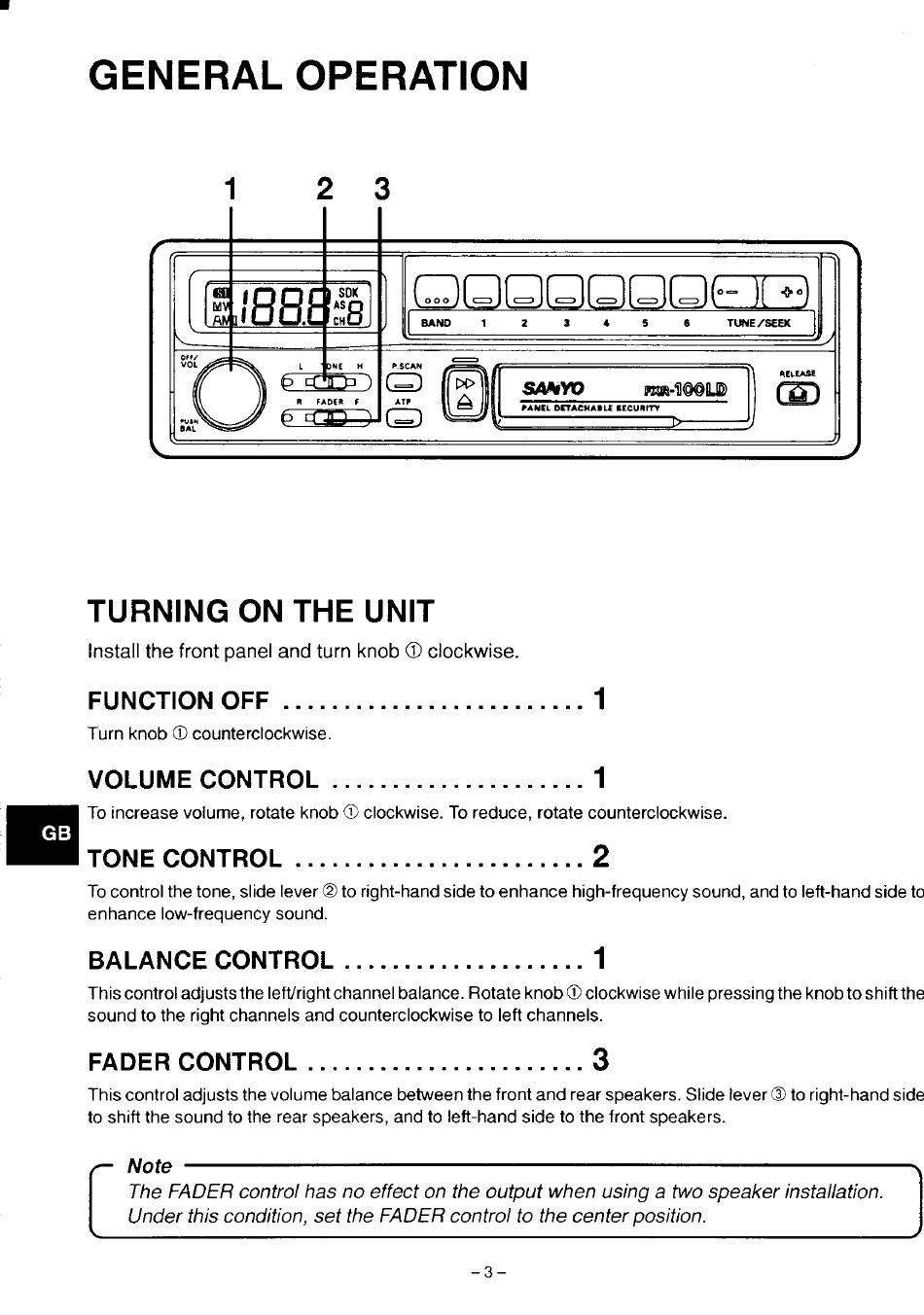

GENERAL OPERATION
12
u
Mm
1
2
345
6
TIME /2EEK
q
TURNING ON THE UNIT
Install the front panel and turn knob O clockwise.
FUNCTION
OFF . . . . . . . . . . . . . . . . . . . . . . . . .
1
Turn knob @ counterclockwise.
VOLUME CONTROL
. . . . . . . . . . . . . . . . . . . . .
1
m
To increase volume, rotate knob@ clockwise. To reduce, rotate counterclockwise.
:
TONE CONTROL
. . . . . . . . . . . . . . . . . . . . . . . .
2
To control the tone, slide lever@ to right-hand side to enhance high-frequency
sound, and to left-hand side to
enhance low-frequency
sound.
BALANCE CONTROL
. . . . . . . . . . . . . . . . . . . .
1
Thiscontroladjusts
thelefthightchannel
balance. Rotateknob
Oclockwisewhile
pressingtheknob
toshiftthe
sound to the right channels and counterclockwise
to left channels.
FADER CONTROL
. . . . . . . . . . . . . . . . . . . . . . .
3
This control adjusts the volume balance between the front and rear speakers. Slide lever @to right-hand side
to shift the sound to the rear speakers, and to Iefi-hand side to the front speakers.
The FADER control has no effect on the output when using a two speaker installation.
Under this condition, set the FADER control to the center position.
–3-
