Overview

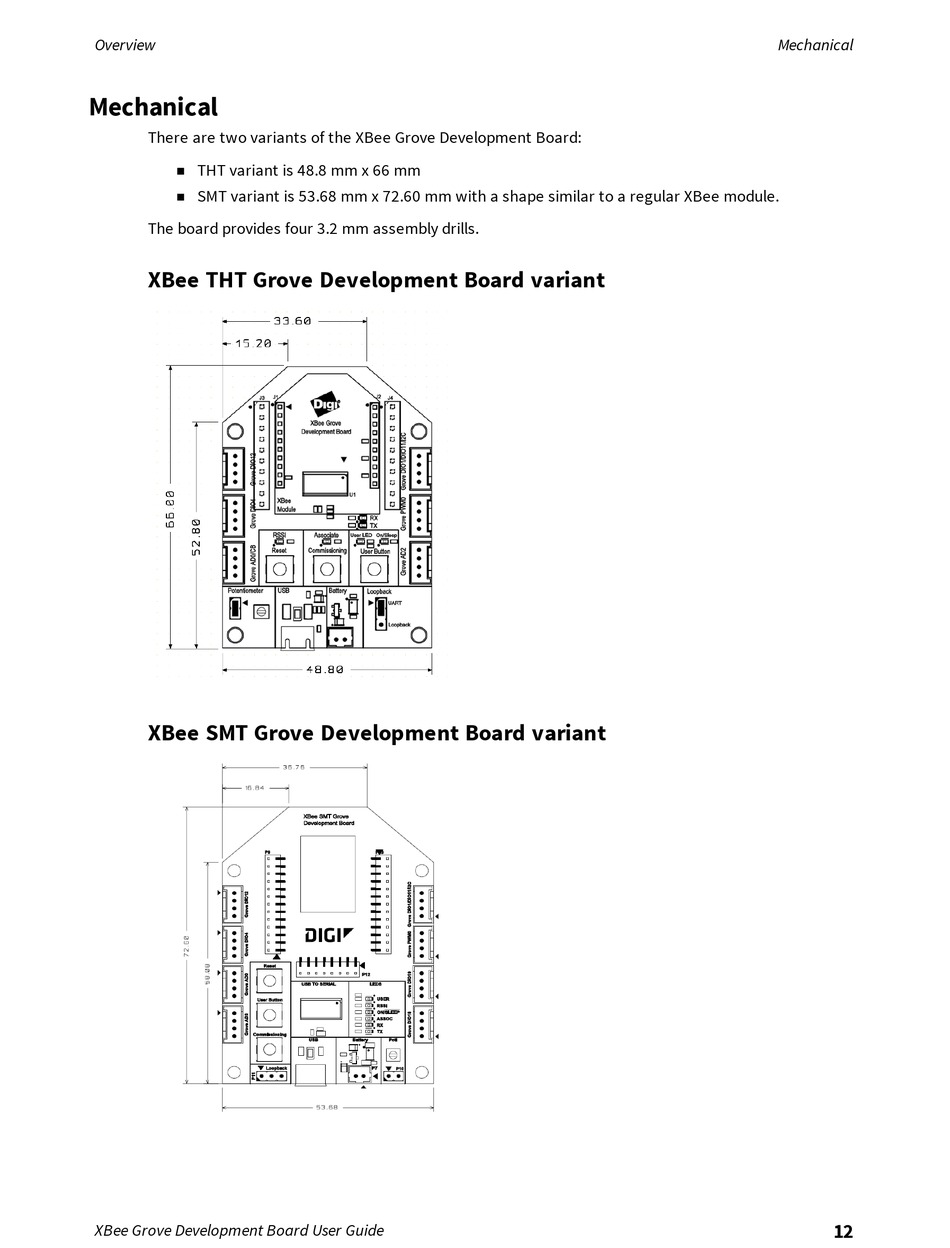

Mechanical
There are two variants of the XBee Grove Development Board:
THT variant is 48.8 mm x 66 mm
n
SMT variant is 53.68 mm x 72.60 mm with a shape similar to a regular XBee module.
n
The board provides four 3.2 mm assembly drills.
XBee THT Grove Development Board variant
XBee SMT Grove Development Board variant
XBee Grove Development Board User Guide
Mechanical
12
