24" HC SERIES, HB SERIES, & HD SERIES UNDERCOUNTER REFRIGERATION
DIGITAL TEMPERATURE CONTROL (CONT.)

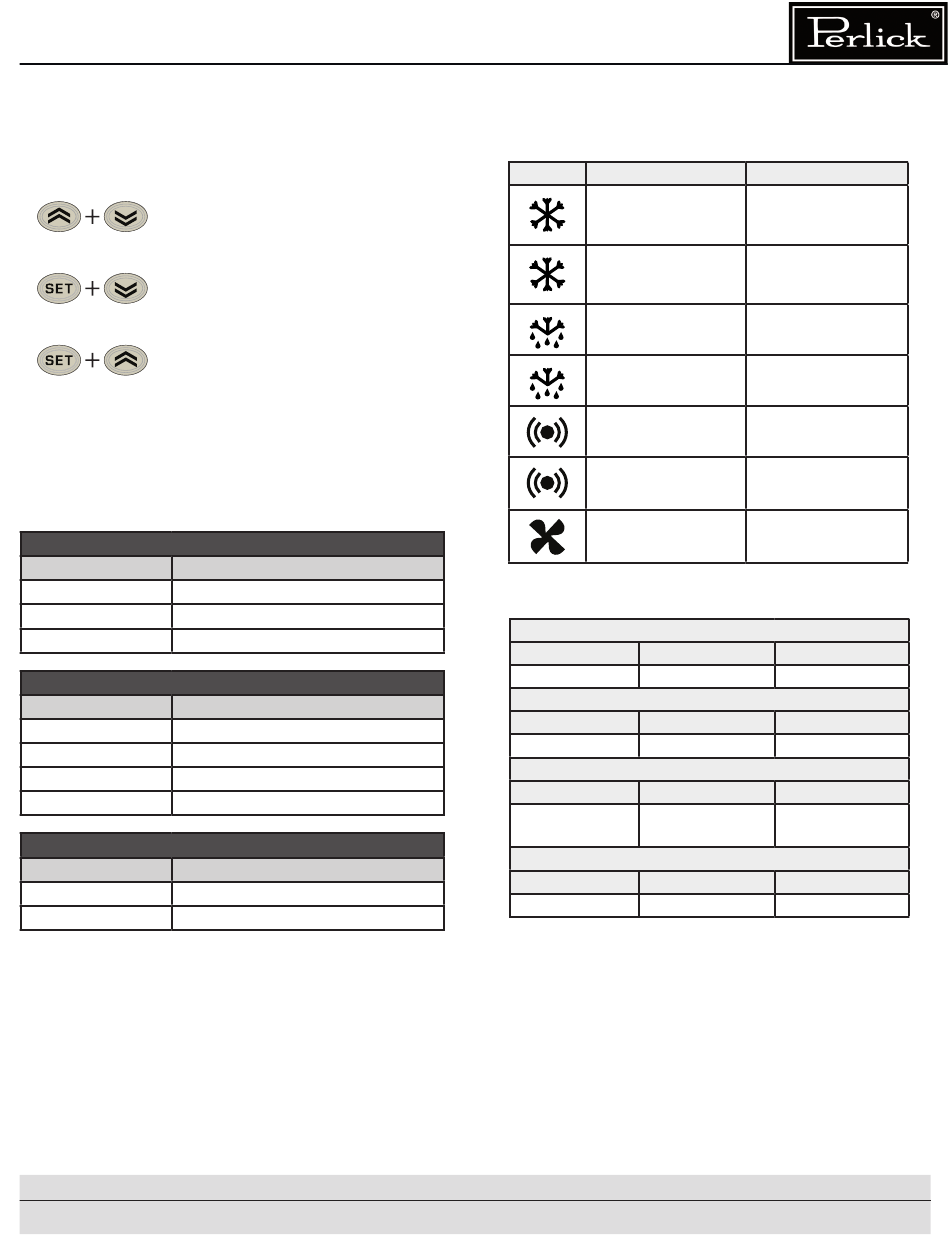

Key Combinations:
Press the UP and DOWN arrow
buttons to lock and unlock the
keyboard
Press the SET and DOWN arrow
buttons simultaneously to enter
programming mode.
Press the SET and UP arrow but-
tons simultaneously to return to
room temperature display.
NOTE: Dependent on the model and configuration, the controllers
have been programmed to only allow a temperature adjustment
within a specified range. See the chart top right for the specified
range allowed for your unit.
HC24 24" C-Series
Model
HC24FS4
HC24RS4
HC24WS4
HB24 24" ADA Compliant Series
Model
HB24FS4
HB24RB4
HB24BB4
HB24WB4
HD24 18" Shallow-Depth Series
Model
HD24RS4
HD24WS4
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice
Factory Temp Setpoint
0° F
36° F
55° F
Factory Temp Setpoint
0° F
36° F
42° F
55° F
Factory Temp Setpoint
36° F
55° F
Operation/Installation Manual

LED Functions

The following table describes LED functions
LED
Flashing
Flashing
Flashing
Model
HC48RS4
Model
HC48WS4
Model
HC48RW4
Model
HC48WW4
11
Mode Function
ON Compressor is on
Delay, protection or
Blocked start-up
ON Defrost is on
Manual or D.I. activation
ON Alarm is on
Alarm acknowledged
ON Evaporator is on
HC48RS Models
Temp Range Factory Set Point
34° F (1.1°) 42°F (5.6°)
HC48WS Models
Temp Range Factory Set Point
34° F (1.1°) 68° F (20°)
HC48RW Models
Temp Range Factory Set Point
Left 32° F (0°) Left 42° F (5.6°)
Right 40° F (4.4°) Right 68° F (20°)
HC48WW
Temp Range Factory Set Point
43° F (6.1°) 54° F (12.2°)
Form No. Z2363
Rev. 06.22.2020
