INSTALLATION AND OPERATION INSTRUCTIONS

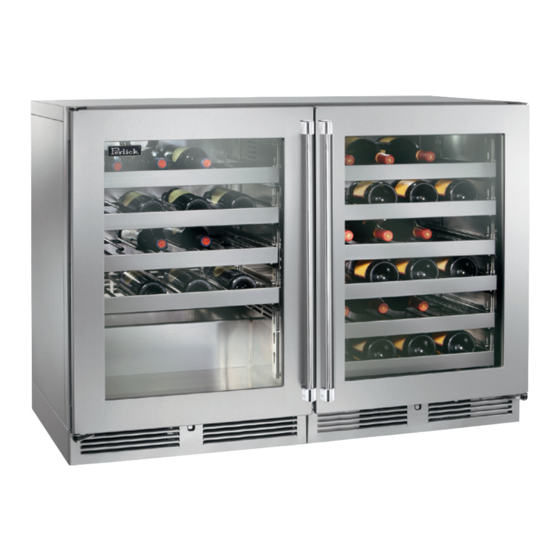

48" COMMERCIAL TWO DOOR AND DUAL-ZONE REFRIGERATOR/WINE RESERVE
Introduction
Congratulations on your purchase of a Perlick commercial
underbar product. This manual has been prepared to assist
you in the installation of your cabinet and to acquaint you
with its operation and maintenance.
This manual has been prepared to assist you in the
installation of your under counter refrigerator and to
acquaint you with its operation and maintenance.
We dedicate considerable time to ensure that our products
provide the highest level of customer satisfaction. If
service is required, your dealer can provide you with a list
of qualified service agents. For your own protection, never
return merchandise for credit without our approval.
We thank you for selecting a Perlick product and assure
you of our continuing interest in your satisfaction.
PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com
Refrigerator
HC48RS4
Dual Zone Wine Reserve
HC48WW4
GENERAL INFORMATION
Warranty
To register your product, visit our web site at www.perlick.
com. Click on "Commercial", then "Service". Click on the
link "Warranty Registration Form". You must complete and
submit this form or the installation date will revert back to
the ship date.
Please record the purchase date and the dealer's name,
address and telephone number below.
Model Number: ________________________________
Serial Number: _________________________________
Purchase Date: _________________________________
Dealer Name & Address __________________________
______________________________________________
______________________________________________
______________________________________________
Phone Number _________________________________
MODELS
HC48RS4
HC48WS4
HC48RW4
HC48WW4
C
US
Form No. Z2426
Rev. 03.04.2022
