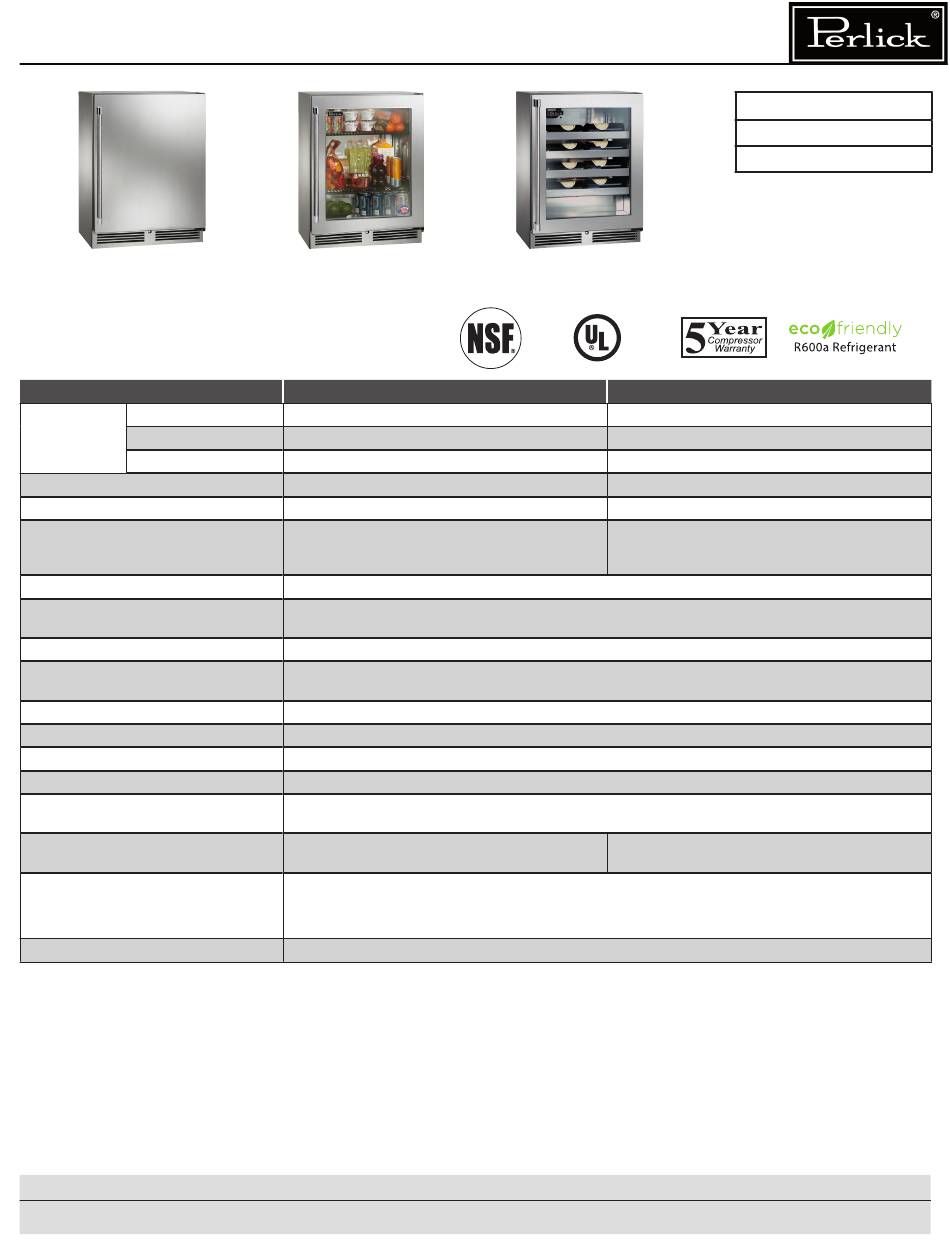

24" HC SERIES, HB SERIES, & HD SERIES UNDERCOUNTER REFRIGERATION
HD24RS4
Shown with Solid Stainless
Steel Door (S)
HD Series Size and Specifications
MODEL NO.
CABINET Length Ins. (mm)
DIMENSIONS
Depth Ins. (mm)
Height Ins. (mm)
SHIP WEIGHT LBS. (KG)
CAPACITY CU. FT. (L.)
SHELVING
CABINET CONSTRUCTION (INT.)
CABINET CONSTRUCTION (EXT.)
CABINET INSULATION
DOORS, HINGING & HARDWARE
CONDENSING UNIT
REFRIGERATION
HEAT REJECTION AT 75°F AMBIENT
PLUMBING
ELECTRICAL
TEMPERATURE SETTINGS F°(C°)
CUSTOMER OPTIONS
ADDITIONAL ACCESSORIES
*Product capacity based on 12 oz. long neck bottles (Refrigerator), 3"
diameter glass size (Freezer) and 750 ml. wine bottles (Wine Reserve)
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice
HD24RS4
Shown with Glass with Stainless
Steel Frame Door (S)
HD24RS4
23-7/8" (606)
18" (457)
32" (813)
185 (83)
3.1 (88)
2 black vinyl-coated full-extension shelves
(adjustable)
Interior Stainless Steel
Exterior Sides, Exterior Top Stainless Steel Exterior Back Galvanized
Door Exterior Customer Choice (see below under 'Customer Options')
Polyurethane-Ecomate. Wall Thickness-2" Door, Drawer Thickness-2" (solid stainless steel only)
Number of Doors 1 Opening Style Hinged (Left or Right) Door Style Solid or Glass
Door Swing Clearance 25" (635) Locks Available (factory installed)
Condenser Access Front
Refrigerant R600a (50g) Expansion Device Capillary Tube Type w/ Hermetic Compressor
350 BTU/hr
None required. Moisture drains to self evaporating condensate pan
Electrical Supply 115V/60 Hz/1 Phase Running Load Amps 1.6 Cord Connection Cord Connected
(3-prong 6' NEMA 5-15P) Thermostat Electro-Mechanical Lighting Type Incandescent
Temp. Range 34° (1.1°) - 42° (5.6°)
Factory Temp. Setting 36°(2.2°)
Door Finishes Black Vinyl/Field Laminate (B), Stainless Steel (S), Glass w/ Black Vinyl/Field Laminate (G),
Glass w/ Stainless Steel Frame (T), Black Vinyl/Field Laminate Drawers (D) Door Handle Options 24" full
length stainless steel, Classic 6" chrome w/black vinyl grip, tab handle (top mount, stainless steel)
NOTE: Glass option not available for freezer
Door Locks (Castors and Legs: Not Applicable)
Operation/Installation Manual
HD24WS4
Shown with Glass with Stainless
Steel Frame Door (S)
C US
HD24WS4
23-7/8" (606)
18" (457)
32" (813)
185 (83)
3.1 (88)
4 black vinyl-coated full-extension wine shelves
(adjustable). Each wine shelf holds 5 (750 ml) wine
bottles.
Temp. Range 40° (4.4°) - 68° (20°)
Factory Temp. Setting 55° (12.8°)
NOTE: This equipment is intended for the storage and display of
non-potentially hazardous bottled or canned products only!
5
MODELS
HD24RS4
HD24WS4
Form No. Z2363
Rev. 06.22.2020
