Altronix Trove T2MK3F4D Installation Manual page 4

1. Fasten snap on standoffs onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 3, pg. 4).
2. Position access controller module over corresponding standoffs and depress onto snap on standoffs (Fig. 3a, pg. 4).
3. Mount backplane to enclosure with hardware.
Mercury Access Controller
EP1502, MR52, MR16IN, MR16OUT
EP2500, MUX8
EP1501, MR51e
MR50

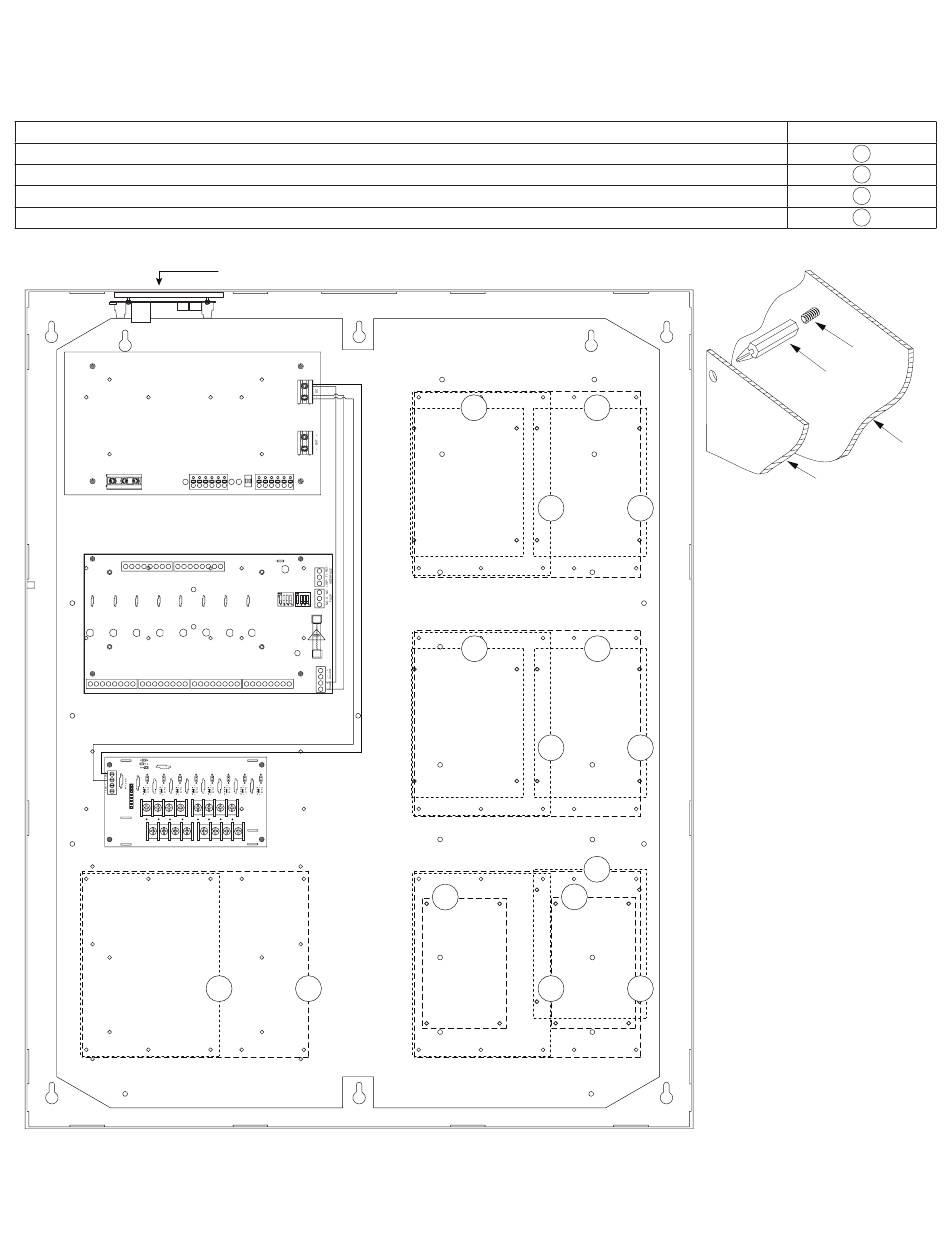

Fig. 3
Altronix
eFlow104NB
L G N
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
1 2 3 4 5 6
F1 F2 F3 F4 F5
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
DM1 +
OFF
IN1 Fuse
Altronix PDS8CB
IN1
IN2
P
OUT1 OUT2 OUT3 OUT4
Common (--- )
N
DM2 +
1 2 3 4
Common Power Outputs (NEG)
Altronix VR6 mounted under PDS8CB
- 4 -
T2MK7F8D, T2MK7F8Q: Configuration of Mercury Boards:
Access Controller Position Chart for the Following Models:
Altronix LINQ2 Module (T2MK7F8DQ)
FACP
TRIGGER
TRG
INPUT
7 8
F6 F7 F8
O N O N
1 2 3 4 1 2 3 4
Altronix
ACM8CB
MAIN
10A 250V
OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
DM1 +
OUT5 OUT6 OUT7 OUT8
Common (--- )
DM2 +
5 6 7 8
B A
C C
B
C C
B
C
D
D
B
A
A
A
Pem Mounting
A
B
C
D
Fig. 3a
Pem
Snap On
Standoff
Backplane
Mercury Board
T2MKD Kits
