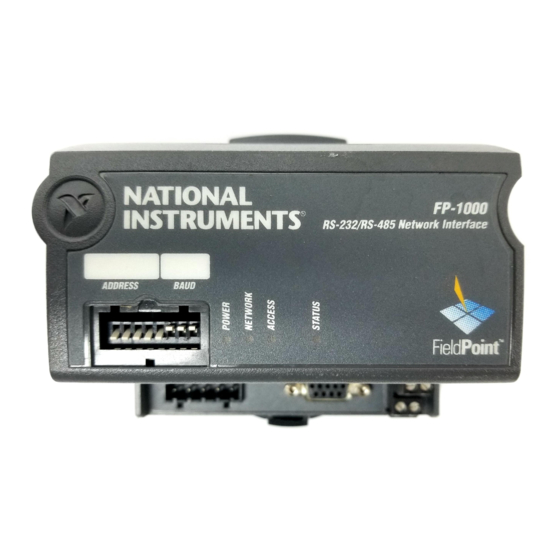

FieldPoint
FP-1000 and
FP-1001 RS-232/RS-485
Network Module

User Manual

FieldPoint FP-1000/FP-1001 User Manual
July 1997 Edition
Part Number 321631A-01
© Copyright 1997 National Instruments Corporation. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FieldPoint FP-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for National Instruments FieldPoint FP-1000

Summary of Contents for National Instruments FieldPoint FP-1000

  • Page 1: User Manual

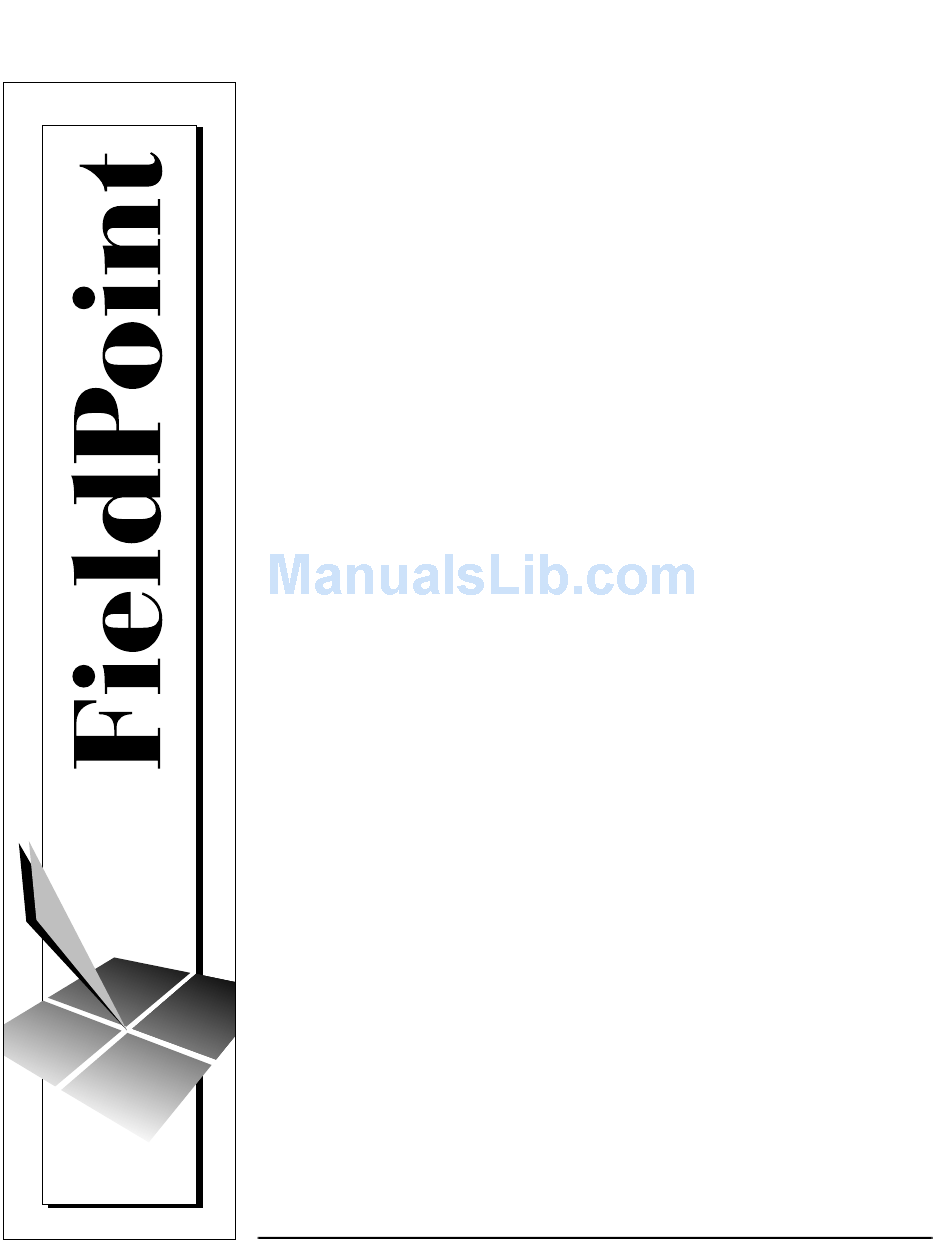

    ™ FieldPoint FP-1000 and FP-1001 RS-232/RS-485 Network Module User Manual FieldPoint FP-1000/FP-1001 User Manual July 1997 Edition Part Number 321631A-01 © Copyright 1997 National Instruments Corporation. All rights reserved.
  • Page 2 Korea 02 596 7456, Mexico 5 520 2635, Netherlands 0348 433466, Norway 32 84 84 00, Singapore 2265886, Spain 91 640 0085, Sweden 08 730 49 70, Switzerland 056 200 51 51, Taiwan 02 377 1200, United Kingdom 01635 523545 National Instruments Corporate Headquarters 6504 Bridge Point Parkway Austin, TX 78730-5039 Tel: (512) 794-0100...

  • Page 3: Important Information

    The FieldPoint modules are warranted against defects in materials and workmanship for a period of one year from the date of shipment, as evidenced by receipts or other documentation. National Instruments will, at its option, repair or replace equipment that proves to be defective during the warranty period. This warranty includes parts and labor.

  • Page 4: Table Of Contents

    RS-485 Network Termination and Biasing ... 2-7 Configuring the Network Module... 2-9 Setting the Network Address... 2-10 Setting the Baud Rate ... 2-12 Connecting Power to the FP-1000 or FP-1001 ... 2-12 Calculating Power for a FieldPoint Bank ... 2-13 Chapter 3 Feature Set Description High-Speed Local Bus ...
  • Page 5 Locking the FieldPoint Network Module onto a DIN Rail ... 2-2 Figure 2-4. Connecting Terminal Bases... 2-3 Figure 2-5. Host Computer Connected to One FP-1000 and Two FP-1001 Network Modules ... 2-4 Figure 2-6. Host Computer Connected to Three FP-1001 Network Modules ... 2-5 Figure 2-7.
  • Page 6 Figure 2-8. RS-485 Connector Pinout for the FP-1000 and FP-1001 ... 2-7 Figure 2-9. Terminating RS-485 Using the Combicon Adapter ... 2-8 Figure 2-10. Typical Signal Connections for Host Computer Connected to One FP-1000 and Multiple FP-1001 Network Modules... 2-8 Figure 2-11.

  • Page 7: About This Manual

    This manual describes how to install and use the FieldPoint FP-1000 and FP-1001 network modules. How to Use This Manual Set FieldPoint User Manual © National Instruments Corporation Operating Instructions for Modules and Bases Installation Specifications Network Connection, Hardware Configuration, and...

  • Page 8: Organization Of This Manual

    Appendix A, Specifications, describes the specifications of the FP-1000 and FP-1001 network modules. Appendix B, Customer Communication, contains forms you can use to request help from National Instruments or to comment on our products and manuals. The Glossary contains an alphabetical list and description of terms used in this manual, including abbreviations, acronyms, metric prefixes, mnemonics, and symbols.

  • Page 9: Related Documentation

    • • Customer Communication National Instruments wants to receive your comments on our products and manuals. We are interested in the applications you develop with our products, and we want to help if you have problems with them. To make it easy for you to contact us, this manual contains comment and configuration forms for you to complete.

  • Page 10: Fp-1000 And Fp-1001 Network Module Overview

    I/O count by using more RS-232/RS-485 ports in your host computer. FP-1000 Connects to RS-232 The FP-1000 connects directly to the RS-232 port that is available on most host computers. Since RS-232 is a point-to-point network that allows connection to only one device, the FP-1000 provides an RS-485 repeater so that you can build a network with multiple FieldPoint banks.

  • Page 11: Fp-1001 Connects To Rs-485

    Chapter 1 FP-1000 and FP-1001 Network Module Overview FP-1001 Connects to RS-485 The FP-1001 FieldPoint network module connects directly to an RS-485 adapter card that is installed in your host computer. Since RS-485 is inherently a multidrop network, the FP-1001 does not provide a separate RS-485 repeater.

  • Page 12: Installation And Configuration

    35 mm DIN rail and press the network module down onto the DIN rail as shown in Figure 2-2. Cover Press Figure 2-2. Installing the Network Module onto a DIN Rail Chapter Rail Clip Locked Local Bus Connector DIN Rail FieldPoint FP-1000/FP-1001 User Manual...

  • Page 13: Removing The Network Module

    1. Remove the protective cover from the network module’s local bus 2. Install the terminal base onto the DIN rail in the same way you FieldPoint FP-1000/FP-1001 User Manual After the module is in position, push the rail snap into the locked position to lock the module in place on the DIN rail, as shown in Figure 2-3.

  • Page 14: Connecting The Fp-1000 To The Network

    RS-232 Interface Specifications and RS-485 Interface Specifications sections later in this chapter. Connect the RS-232 port of the FP-1000 to your host computer’s RS-232 port. Use a 9-pin Dsub male-to-female “straight-through” cable. Do not use a null modem cable (usually female-to-female).

  • Page 15: Connecting The Fp-1001 To The Network

    One option for connecting the FP-1001 is to connect it to the RS-485 repeater port of an FP-1000 as shown in Figure 2-5. An alternative method is to connect the FP-1001 directly to your host computer, if your host computer provides an RS-485 interface (contact National Instruments for information about available RS-485 hardware).

  • Page 16: Connecting To The Serial Ports

    The RS-485 interface on both the FP-1000 and the FP-1001 modules is isolated from the rest of the FieldPoint system, including the power supply, backplane, and the RS-232 interface on the FP-1000. It is isolated with a galvanic and optical isolation barrier, which has been designed and tested to withstand fault voltages of up to 2500 Vrms.

  • Page 17: Rs-232 Interface Specifications

    FieldPoint FP-1000/FP-1001 User Manual Legend: NC = Not Connected TX = Transmit GND = Ground RTS = Request to Send RX = Recieve DSR = Data Set Ready Figure 2-7. RS-232 Connector Pinout for the FP-1000 © National Instruments Corporation...

  • Page 18: Figure 2-8. Rs-485 Connector Pinout For The Fp-1000 And Fp-1001

    The FP-1000 does not use RS-232 hardware handshaking, but it still asserts the RTS and DSR signals for host computers or software that may require these signals. A host computer that does not use these signals does not need to connect to them.

  • Page 19: Figure 2-10. Typical Signal Connections For Host Computer Connected To One Fp-1000 And Multiple Fp-1001 Network Modules

    Figure 2-6. FP-1001 Connect the TX outputs of the FP-1001 to the RX inputs of the FP-1000, and the RX inputs of the FP-1001 to the TX outputs of the FP-1000. Figure 2-10. Typical Signal Connections for Host Computer Connected to One...

  • Page 20: Configuring The Network Module

    Figure 2-11. Typical Signal Connections for Host Computer Connected to Multiple Configuring the Network Module Figure 2-12 shows the 8-position switch on the FP-1000 and FP-1001 FieldPoint network modules. Switches 1-5 set the network address, and switches 6-8 set the baud rate.

  • Page 21: Setting The Network Address

    Table 2-1 shows the possible switch positions and the corresponding address of the FieldPoint network module. FieldPoint FP-1000/FP-1001 User Manual Setting the Network Address, for more information. section, Setting the Baud Rate, later in this chapter.

  • Page 22: Table 2-1. Network Address Switch Settings For The Fp-1000 And

    Table 2-1. Network Address Switch Settings for the FP-1000 and FP-1001 Network Modules Switch Network Module Positions 1 - 5 Address (Decimal) 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8...

  • Page 23: Table 2-2. Baud Rate Switch Settings For The Fp-1000 And

    If you are connecting more than one network module to the same host computer port, ensure that every network module’s baud rate setting is identical. Table 2-2. Baud Rate Switch Settings for the FP-1000 and FP-1001 Network Modules Switch Network Module...

  • Page 24: Calculating Power For A Fieldpoint Bank

    I/O module for more information on powering your field I/O devices. Calculating Power for a FieldPoint Bank The power requirements for a FieldPoint bank that uses an FP-1000 or FP-1001 network module are calculated as follows: Power = 1 watt + 1.15 * (I/O Module Consumption) The operating instructions for each FieldPoint I/O module contain power consumption information.

  • Page 25: Feature Set Description

    This chapter describes the feature set for the FP-1000 and FP-1001 network modules. Both the FP-1000 and FP-1001 have an identical feature set, so this chapter uses the term network module to refer to either one. Any specific differences are noted.

  • Page 26: Snapshot Feature

    Enable the SnapShot feature if you want the FieldPoint bank to power-up with the stored SnapShot information. FieldPoint FP-1000/FP-1001 User Manual Watchdog enabled/disabled status for each I/O module. Watchdog timeout value for the bank.

  • Page 27: Programmable Power-Up State

    You can utilize the Programmable Power-Up State feature to individually store the following information. You can use either the FieldPoint Explorer software or the FieldPoint command set. © National Instruments Corporation Chapter 3 FieldPoint FP-1000/FP-1001 User Manual Feature Set Description...

  • Page 28: Hotpnp (Hot Plug And Play)

    An I/O module can be hot-inserted only if an empty terminal base is already available in the bank. You should not add or remove terminal bases while power is applied to the bank. FieldPoint FP-1000/FP-1001 User Manual Attribute and range settings of each channel. Output values of each channel.

  • Page 29: Hotpnp During Power-Up

    I/O module with its predecessor’s configuration and output value settings. It also applies the effects of any commands sent by the host computer while the I/O module was missing. © National Instruments Corporation Chapter 3 FieldPoint FP-1000/FP-1001 User Manual Feature Set Description...
  • Page 30 As soon as the network module configures a replacement I/O module via the HotPnP service, that I/O module becomes automatically accessible on the network. FieldPoint FP-1000/FP-1001 User Manual Table 3-1. Module Configuration Results After HotPnP Replacement SnapShot Feature...

  • Page 31: Figure 3-1. Leds On The Fp-1000 And Fp-1001

    I/O modules. © National Instruments Corporation ADDRESS BAUD Figure 3-1. LEDs on the FP-1000 and FP-1001 Chapter 3 Feature Set Description ADDRESS BAUD FieldPoint FP-1000/FP-1001 User Manual...
  • Page 32 STATUS a specific number of times. Table 3-2 describes the STATUS LED flashing sequences and the corresponding error condition. Number of 0 (stays lit) FieldPoint FP-1000/FP-1001 User Manual Table 3-2. STATUS LED Flashes and Corresponding Error Conditions Flashes The network module initialization failed.

  • Page 33: Using The Fieldpoint Software

    You can also choose to communicate with the FieldPoint system using an Optomux compatible server, or by using the FieldPoint command set. If you use either of these methods, refer the FieldPoint FP-1000 and FP-1001 Programmer Reference Manual. You may, however, still use the FieldPoint Explorer to configure the FieldPoint devices before running your software.

  • Page 34: Using The Fieldpoint Explorer

    Also, if you select another CCDB file as the active CCDB, you must export the selected active CCDB file. FieldPoint FP-1000/FP-1001 User Manual Configure the characteristics and hardware of a FieldPoint device network Configure the tag name space and I/O items of the FieldPoint...

  • Page 35: Using The Fieldpoint Server With Labview

    The FP Get Configuration Info.vi is used to read the names of communication resources, devices, and I/O items defined in the IAK file. that is installed with the FieldPoint Server, or refer Chapter 4 Using the FieldPoint Software configuration file. You .iak FieldPoint FP-1000/FP-1001 User Manual...

  • Page 36: Using The Fieldpoint Lookout Driver

    FieldPoint hardware before using an Optomux server. Refer to the FieldPoint FP-1000 and FP-1001 Programmer Reference Manual for a description of which Optomux commands are supported, and how to scale the data returned when using this protocol.

  • Page 37: Specifications

    Specifications This appendix describes the specifications of the FP-1000 and FP-1001 network modules. All FieldPoint network modules undergo extensive testing for operating under rugged environmental conditions that exist in industrial applications. FieldPoint network modules are designed and tested for immunity and susceptibility, as well as for emissions.
  • Page 38 Storage Temperature ... –55° C to + 100° C Relative Humidity ... 5% to 90% noncondensing Compliance Electrical Safety ... designed to meet IEC 1010 EMI Emissions/Immunity... CISPR 11 FieldPoint FP-1000/FP-1001 User Manual 250 Vrms operational © National Instruments Corporation...

  • Page 39: Customer Communication

    Electronic Services Bulletin Board Support National Instruments has BBS and FTP sites dedicated for 24-hour support with a collection of files and documents to answer most common customer questions. From these sites, you can also download the latest instrument drivers, updates, and example programs. For recorded instructions on how to use the bulletin board and FTP services and for BBS automated information, call (512) 795-6990.
  • Page 40 Telephone and Fax Support National Instruments has branch offices all over the world. Use the list below to find the technical support number for your country. If there is no National Instruments office in your country, contact the source from which you purchased your software to obtain support.

  • Page 41: Host Computer

    Operating system (include version number ) ___________________________________________ Clock speed ______MHz RAM _____MB Mouse ___yes ___no Mouse type _________________________________________________ National Instruments application software product ______________________ Version _________ Other application software product ___________________________________ Version ________ National Instruments server _________________________________________ Version ________ Other installed software that may use serial ports _______________________________________...
  • Page 42 Watchdog timer Enabled/Disabled Number of FieldPoint terminal bases ________________________________________________ Number of FieldPoint I/O modules __________________________________________________ Base Module Name* FP-1000/FP-1001 * If a terminal base is present but no module is inserted, write “none.” NETWORK: ON/OFF ACCESS: ON/OFF Timeout value ______ ms...

  • Page 43: Technical Support Form

    National Instruments for technical support helps our applications engineers answer your questions more efficiently. If you are using any National Instruments hardware or software products related to this problem, include the configuration forms from their user manuals. Include additional pages if necessary.

  • Page 44: Documentation Comment Form

    Documentation Comment Form National Instruments encourages you to comment on the documentation supplied with our products. This information helps us provide quality products to meet your needs. Title: ™ FieldPoint FP-1000 and FP-1001 RS-232/RS-485 Network Module User Manual Edition Date:...
  • Page 45 The combination of one FieldPoint network module and one or more terminal bases and I/O modules. celsius Data Set Ready electronic data sheet electromagnetic interference FIFO first-in-first-out feet grams HotPnP Hot Plug and Play hertz © National Instruments Corporation Value –3 FieldPoint FP-1000/FP-1001 User Manual Glossary...
  • Page 46 Glossary input/output International Electrotechnical Commission inches Light-emitting diode OLE for Process Control POST power-on self test random-access memory Request to Send Volts Volts direct current FieldPoint FP-1000/FP-1001 User Manual © National Instruments Corporation...
  • Page 47 2-9 to 2-10 baud rate settings, 2-12 network address settings, 2-10 to 2-11 connections network connections FP-1000, 2-3 to 2-4 FP-1001, 2-4 to 2-5 © National Instruments Corporation serial port connections, 2-5 to 2-9 isolation of RS-485 interface (note),...
  • Page 48 FP-1000, 2-3 to 2-4 FP-1001, 2-4 to 2-5 HotPnP (Hot Plug and Play) features, 3-4 to 3-6 network module installation, 2-1 to 2-2 power connections for FP-1000 or FP-1001, 2-12 to 2-13 calculating power for FieldPoint bank, 2-13 removing network module, 2-2...
  • Page 49 Programmable Power-Up State, 3-3 to 3-4 © National Instruments Corporation removing FieldPoint network module, 2-2 RS-232 ports connector pinout (figure), 2-6 FP-1000 connection to, 1-1 interface specifications, 2-6 to 2-7 self-configuration parameters, 2-6 RS-485 ports Combicon adapter for termination (figure), 2-8...
  • Page 50 Index technical support, B-1 to B-2 telephone and fax support, B-2 terminal base connection, 2-2 to 2-3 termination and biasing, RS-485 ports, 2-7 to 2-9 watchdog timer, 3-1 to 3-2 FieldPoint FP-1000/FP-1001 User Manual © National Instruments Corporation...
