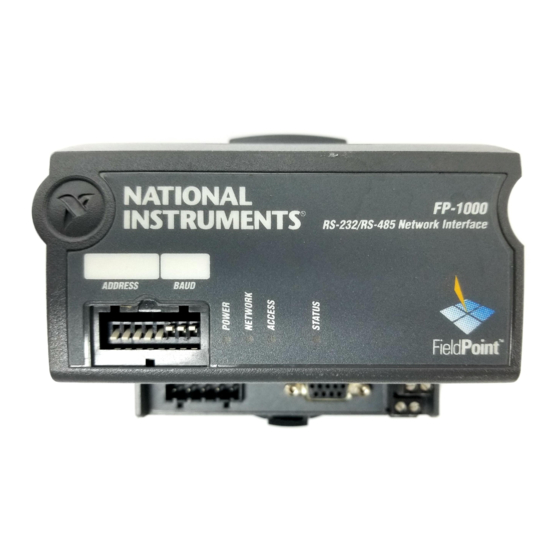

National Instruments FieldPoint FP-1000 Note To Users

Using fieldpoint and compact fieldpoint safely in hazardous locations

Hide thumbs Also See for FieldPoint FP-1000:

™

FieldPoint

Using FieldPoint and

Compact FieldPoint Safely

in Hazardous Locations

This product is suitable for use in U.S. and Canada: Class I,

Division 2, Groups A, B, C, D, T4 hazardous locations; and

nonhazardous locations.

Cautions

components may impair suitability for Class I,

Division 2.

Explosion hazard—Do not disconnect equipment unless

power has been switched off or the area is known to be

nonhazardous.

Equipment must be used within its electrical and

environmental ratings. Refer to the Specifications section

of the product manual. Refer to the product label for

manufacturing location.

This product must be installed in an enclosure rated at least

IP 54.

For screw-terminal connections on the FP-1000, FP-1001, and

FP-TB-1, use 16–26 AWG copper wire with 7 mm (0.28 in.) of

insulation stripped from the end. Tighten screw terminals to

0.5–0.6 N ⋅ m (4.4–5.3 lb ⋅ in.) of torque.

Note to Users

Explosion hazard—Substitution of

Table of Contents

Need help?

Do you have a question about the FieldPoint FP-1000 and is the answer not in the manual?

Page 1 ™ FieldPoint Note to Users Using FieldPoint and Compact FieldPoint Safely in Hazardous Locations This product is suitable for use in U.S. and Canada: Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; and nonhazardous locations. Explosion hazard—Substitution of Cautions components may impair suitability for Class I, Division 2.
Page 2 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
