DEMO MANUAL DC1533A
Instructions to Convert DC1533A to a 5V
1. Start with DC1533A. Disconnect all supplies and loads.

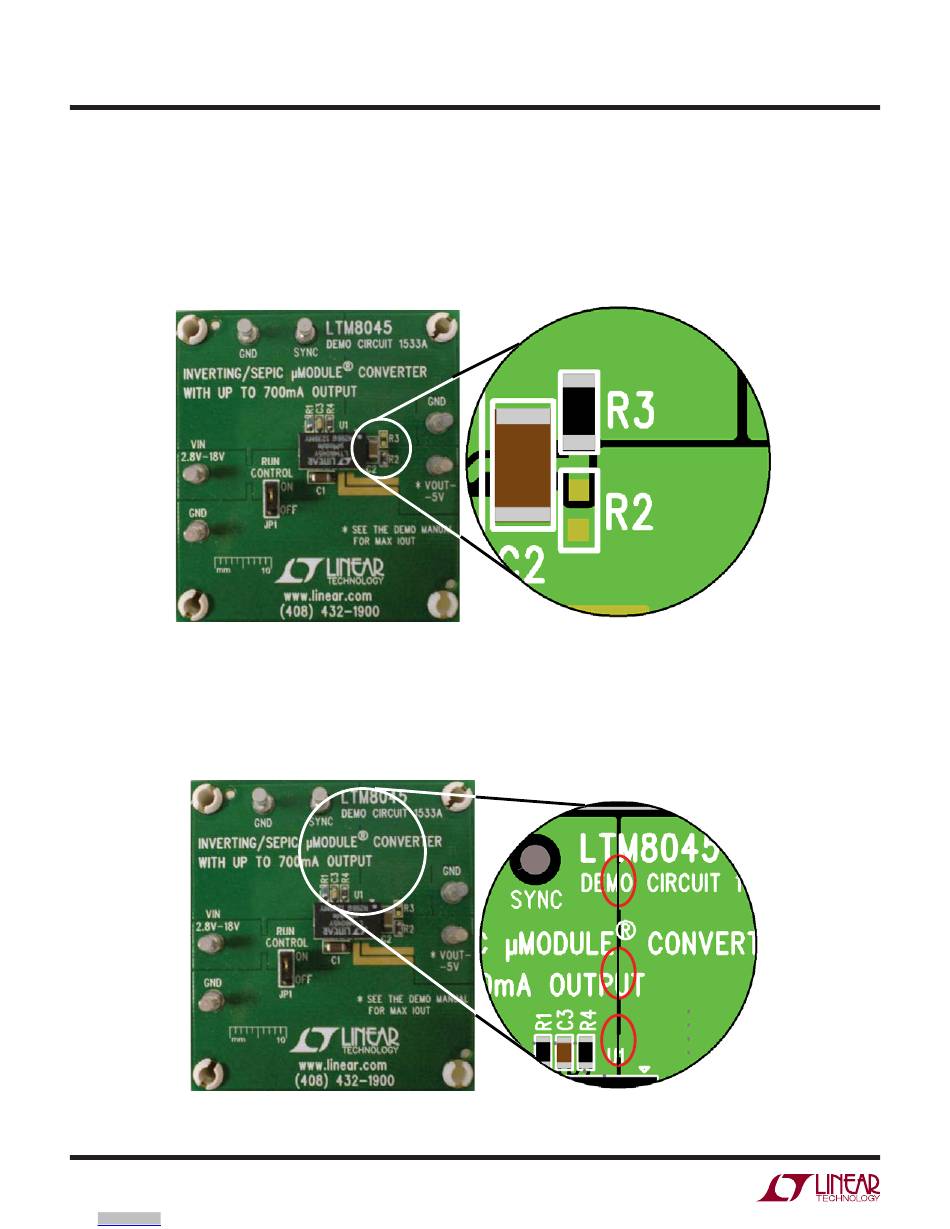

2. Remove R2 and install R3 = 45.3k as shown in Figure 4. R3 MUST BE PRESENT BEFORE OPERATION OTHERWISE
THE LTM8045 MAY BE DAMAGED.
3. Make three cuts on the top copper to separate the terminal labeled GND from the ground plane, as shown in
Figure 5. The terminal labeled GND is now V
4
