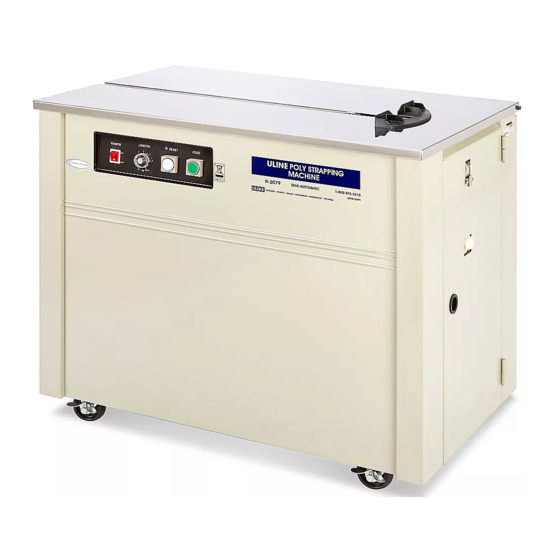

H-2079
POLYPROPYLENE
STRAPPING MACHINE
TECHNICAL DATA
Strapping Speed: 2.5 Seconds/Strap
Dimensions (L x W x H): 35½ x 23 x 30½"
Net Weight: 220 lbs.
Max. Tension: 100 lbs.
Strap Width: 1/4" – 5/8"
Core Capacity (Core Dia. x Width): 8 x 8", 9 x 8" or 11 x 8"
Safety Switch: Stops machine when top is lifted.
Power: 110 VAC, 50/60 Hz, Single phase.
Open lid and remove contents from tray. Install package guide on lid.
L
O
A
D
R
E
L E
Right Side
1.
Remove plastic reel from machine. It comes preset
for 9" core. Remove outer ring adapter for 8" core. For
11" strapping core, the H-959-TC075 adapter can be
purchased. (See Figure 1)
2.
Load Strapping onto reel. DO NOT REMOVE BANDING UNTIL
LOADED. Make sure strap is going in correct direction
indicated by red arrow. (See Figure 1)
PAGE 1 OF 9
1-800-295-5510
uline.ca

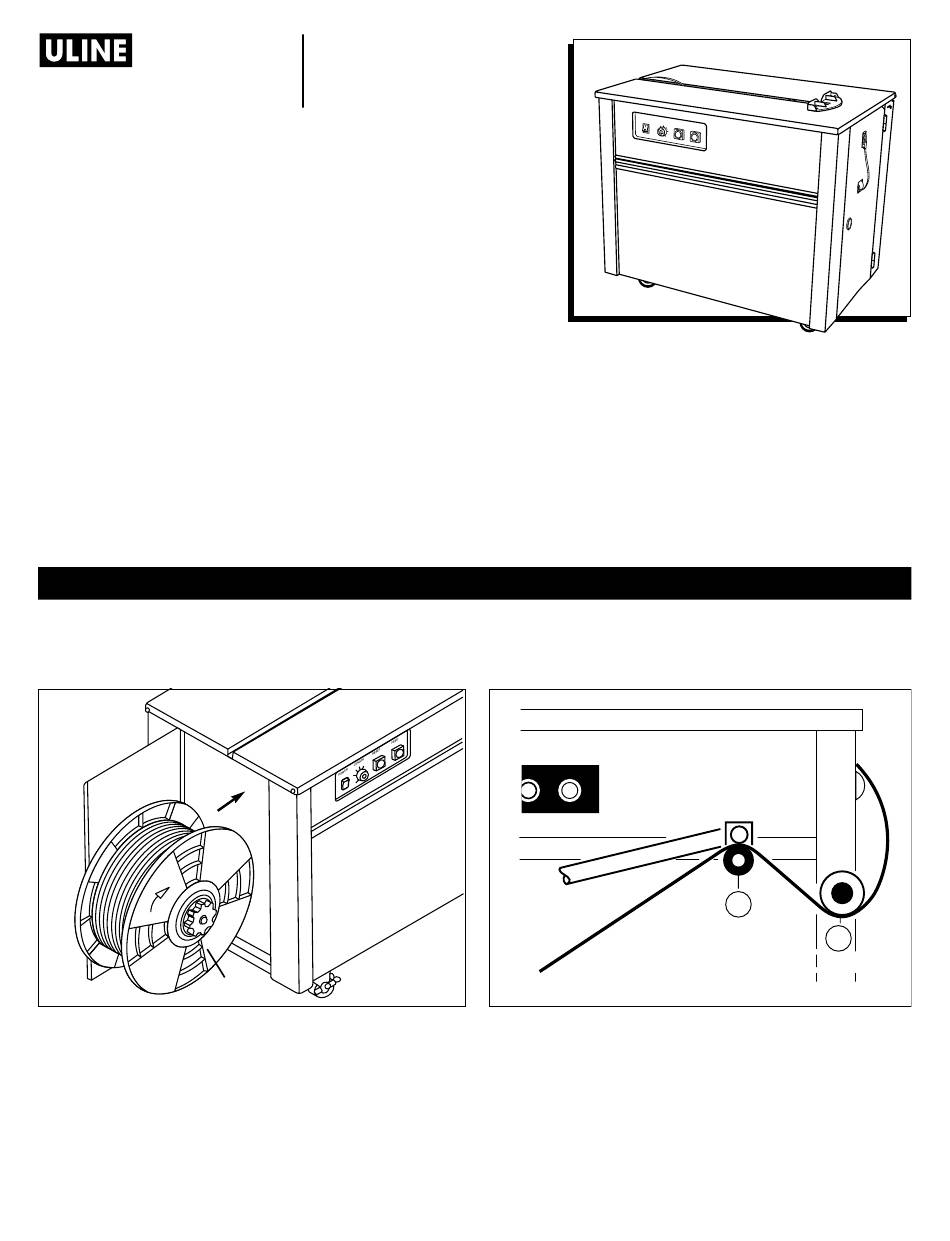

MACHINE SETUP
R
O
Remove adapter
before installing
reel.
Figure 1
1.
Pour le français, consulter les pages 7-9.
POW ER
LEN GTH
RES ET
3
2
ON
4
5
OFF
0
M
MAX
U
E T
S
R T
A
P P
N I
G
BAND GUIDE
Figure 2
Pull slide roller bar down and thread strapping over (1)
and under (2). Thread strap through guide (Ref 10) until it
reaches top of machine. (See Figure 2)
Para Español, vea páginas 4-6.
FEE D
1
Slide Roller
2
Roller
0715 IH-2079
