H-140, H-312
π
H-375, H-460

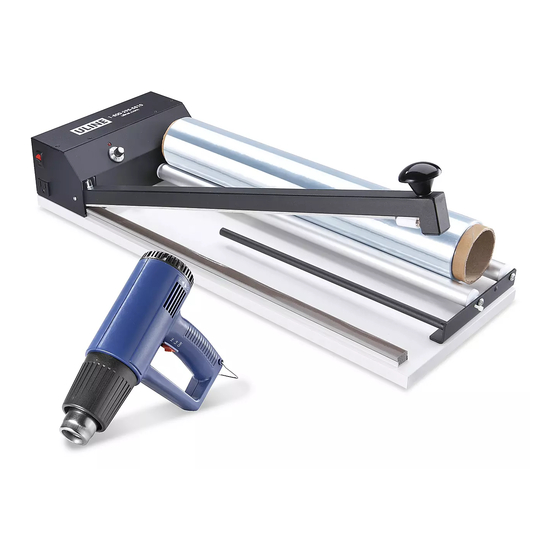

INDUSTRIAL SHRINK
WRAP SYSTEM
MODEL NUMBER
Applications
Length of Sealing Area
Maximum Film Width
Maximum Film Weight
Film Core Diameter
Power Supply (Primary)
Voltage (Secondary)
(Deluxe)
Amperage
Cycles
HEAT GUN
110 A/C – 60 hz. – 1100 watts – Temperature range: 50º F. – 1100º F. Weight: 2 LB.
* 220 VAC also available upon request.
PAGE 1 OF 5
1-800-295-5510
uline.com
SPECIFICATIONS
H-460
H-312
DVDs/Video Games;
Printing; Computer
Computer Software;
Software; Manuals;
CDs/Tapes;
CDs/Tapes;
Books/Magazines
Hardware
13"
18"
13"
18"
100 LBS
100 LBS
1-7/8" and 3"
1-7/8" and 3"
110 VAC*
110 VAC*
14 VAC
20 VAC
3 amps
5 amps
50/60 hz. 1 phase
50/60 hz. 1 phase
H-140
H-375
Printing;
Art/Frame;
General Packaging;
Gift Baskets;
Damaged Package
Posters; Retail
Recovery
Packaging
24"
40"
24"
40"
100 LBS
100 LBS
1-7/8" and 3"
1-7/8" and 3"
110 VAC*
110 VAC*
30 VAC
38 VAC
5 amps
8 amps
50/60 hz. 1 phase
50/60 hz. 1 phase
0815 IH-140
Advertisement
Related Manuals for U-Line H-140
Summary of Contents for U-Line H-140
- Page 1 H-140, H-312 π 1-800-295-5510 H-375, H-460 uline.com INDUSTRIAL SHRINK WRAP SYSTEM SPECIFICATIONS MODEL NUMBER H-460 H-312 H-140 H-375 Applications DVDs/Video Games; Printing; Computer Printing; Art/Frame; Computer Software; Software; Manuals; General Packaging; Gift Baskets; CDs/Tapes; CDs/Tapes; Damaged Package Posters; Retail Books/Magazines...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Before using the Industrial Shrink Wrap System, carefully • Keep work area well lighted. read all of the instructions. Pay close attention to safety • Never try to seal anything other than plastic films guidelines and warnings included for your protection. intended for use on this sealer. - Page 3 SAFETY INSTRUCTIONS CONTINUED SEALER CLEANING INSTRUCTIONS: • When you are finished using the heatgun, stand it on its convenient stand with the nozzle pointing up. This • Never use anything abrasive to clean the heating method is the best and safest way to allow it to cool element.
- Page 4 OPERATING INSTRUCTIONS SHRINK WRAP SYSTEM 7. To shrink film around the product: adjust heat gun to desired temperature. Holding gun approximately 12" Plug power cord into 110 VAC 15 A wall outlet. from product, begin to shrink film around the seams first and then toward the middle in a circular motion 2.
-
Page 5: Troubleshooting
TROUBLESHOOTING OPERATING ISSUE RECOMMENDATIONS Centerfold shrink film will not If shrink film appears to be single sheet, place a strip of tape on top separate or open. of the film and on the bottom and pull apart to initially separate. Film appears to smoke or is This can mean one of several things: sticking to wire when seal is...
