π H-3518
GREEN MACHINE
AIR PILLOW MACHINE

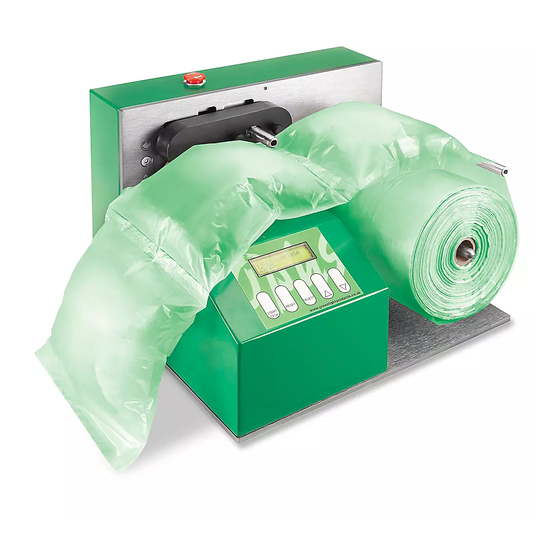

The Uline Green Machine converts rolls of pre–
perforated and sealed flat tubing into air cushions for
use as void fill packaging.
CAUTION! For safety reasons the cushions are
to be used ONLY as a packaging material and
MUST NOT be used as a flotation aid, a toy or
other unspecified use.
Operators must never use the machine other than as
specified by the instructions set out in this manual.
1.
Do not remove any part of machine casing.
2. Under no circumstances should operators expose or
modify the electrical components of the machine.
3. Keep hands away from all moving parts while
operating machine.
4. The machine will automatically shut down in the
event of a film blockage. To restart the machine,
clear the blockage and press reset. Press the start
button to restart.
5. Do not place flammable materials over the heat
sealing section.
PAGE 1 OF 3
1-800-295-5510
uline.com
SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Machine Dimensions (L x W x H) 14 x 12 x 11"
Machine Weight
Power Supply
Film Material
Roll Length
Roll Width
SAFETY INSTRUCTIONS
6. In the event of an emergency, press the red
emergency stop button. The machine will no
longer be live. To restart the machine, rotate the
emergency stop button, which will spring out to the
normal operating position.
7.
If the machine is to remain inactive for longer
periods of time, the machine should be switched
off using the main power switch located where the
power cable enters the machine.
NOTE: THE EMERGENCY STOP BUTTON IS ONLY TO
BE USED FOR EMERGENCIES. For normal start
and stop, use the start/stop button.
19 lbs.
110V, 60Hz
Low and high density
polyethylene blend
1640'
8"
0812 IH-3518
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for U-Line Green Machine H-3518
Summary of Contents for U-Line Green Machine H-3518
- Page 1 π H-3518 1-800-295-5510 uline.com GREEN MACHINE AIR PILLOW MACHINE SPECIFICATIONS TECHNICAL SPECIFICATIONS The Uline Green Machine converts rolls of pre– perforated and sealed flat tubing into air cushions for Machine Dimensions (L x W x H) 14 x 12 x 11" use as void fill packaging.
- Page 2 OPERATING INSTRUCTIONS LOADInG THE FILM 3. Using the Select button scroll through the parameters on the menu that need to be changed. Place machine on a level, stable surface, leaving NOTE: The only parameters that should be sufficient clearance from the floor to prevent the changed are Heat Seal, Blower and Bag Count cushions backing up into the machine.
- Page 3 OPERATING INSTRUCTIONS CONTINUED ADjUSTInG THE nUMBER OF CUSHIOnS (COnTInUED) CUSTOMER ASSISTAnCE MESSAGES To pause the machine during the run press the start/stop In the instance of an error occurring the following button. messages may appear on the control panel: To restart the machine press start. Machine will resume 01 Under Voltage 03 Under Current and continue to required quantity.
