U-Line H-7630 Manual

H-7630, H-7631

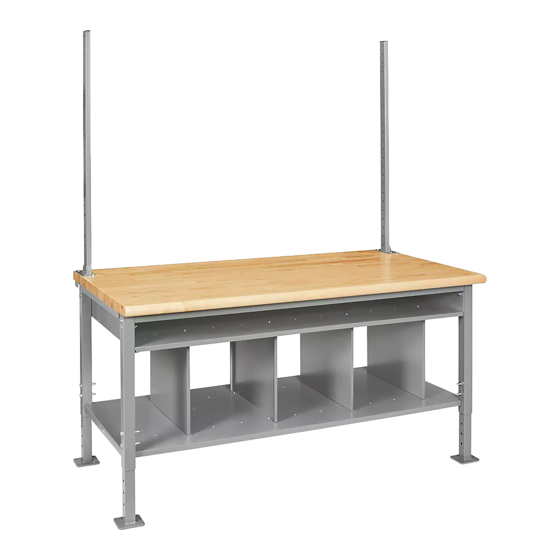

PACKING STATION
TOOLS NEEDED
Electric 1/4" Drill Bit
Drill
9
1
5
2
7
CAUTION! Some parts may have sharp edges.
Care must be taken when handling various
pieces to avoid injury. For your safety, wear a
pair of work gloves when assembling.
NOTE: Hardware packs are included in shelf
and frame packaging. Pack may include more
hardware than needed.
PAGE 1 OF 27
1-800-295-5510
uline.com
Allen Wrench Phillips Head
(included) Drill Bit
9
10
5
4
6
8
10 mm Wrench
Phillips 13 mm Wrench
Screwdriver 17 mm Wrench

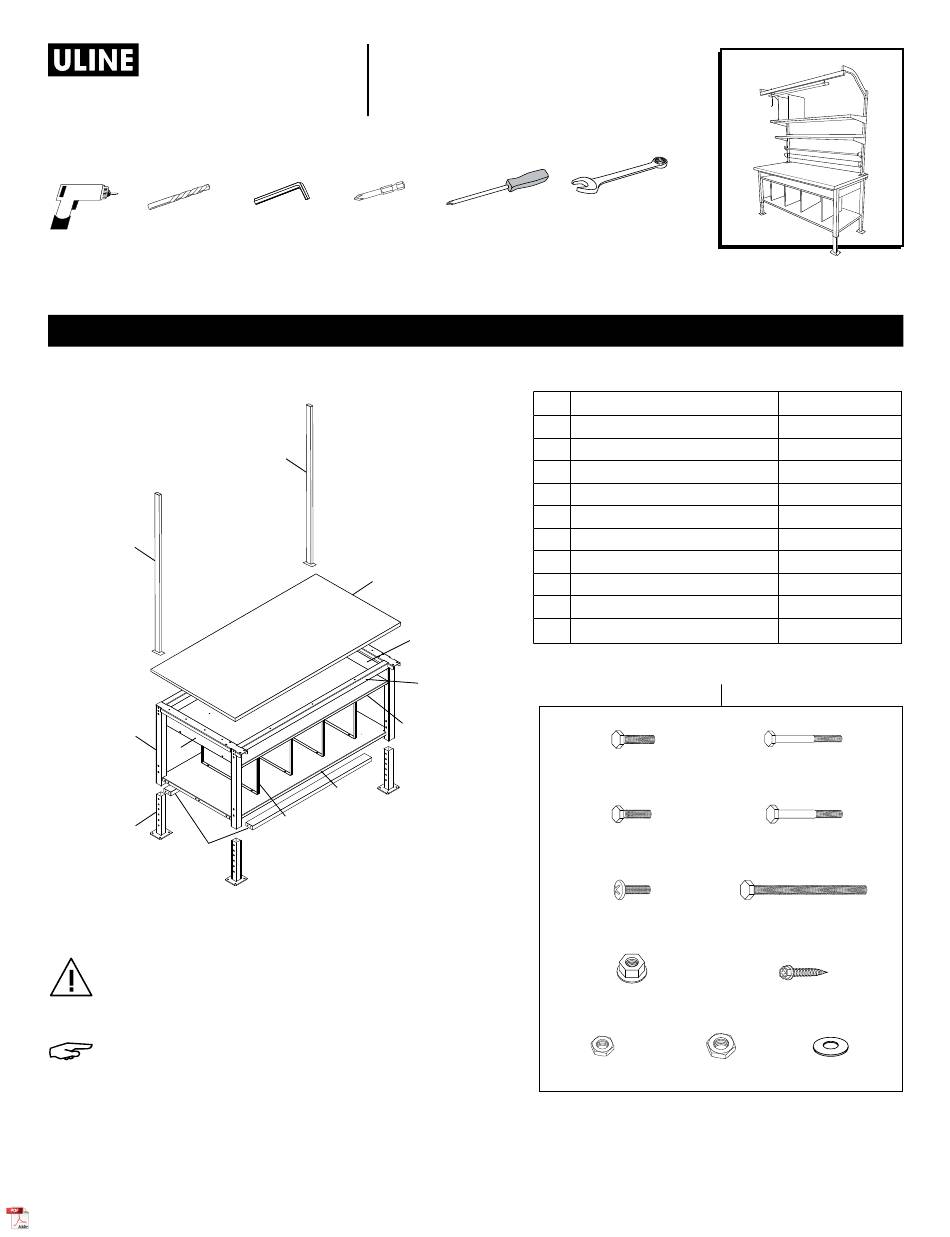

PARTS
PARTS
# DESCRIPTION
1 Leg
2 Adjustable Foot
3 Frame Support Bar
4 4" High Storage Shelf
5 Storage Shelf Support Bracket
6 Full Depth Bottom Shelf
7 Bottom Shelf Support Bar
8 Bottom Shelf Divider
9 Upright
10 Tabletop
3
M8 x 40 Hex Bolt x 12
M6 x 15 Hex Bolt x 4
M6 Phillips Head Bolt x 16
M6 Flange Nut x 28
M8 Nut x 4
*Quantity varies according to size purchased.
Para Español, vea páginas 10-18.
Pour le français, consulter les pages 19-27.
60 AND 72" QTY.
Hardware Kit
M8 x 65 Hex Bolt x 8
M10 x 65 Hex Bolt x 12
M6 x 70 Hex Bolt x 8
Wood Screw*
M10 Nut x 12 Flat Washer x 8
0621 IH-7630
2
4
2
1
2
1
2
4
2
1
