U-Line H-2079 Operation Instructions Manual

π

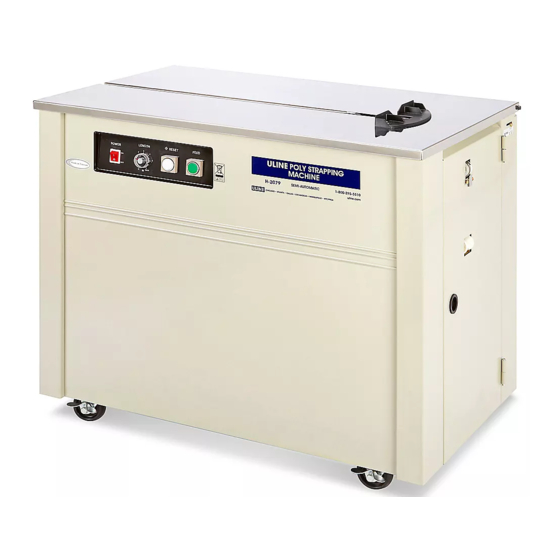

H-2079
POLYPROPYLENE
STRAPPING MACHINE

TECHNICAL DATA

CSA COMPLIANT
Strapping Speed: 2.5 Seconds/Strap
Dimensions: 35½" L x 23" W x 30½" H
Net Weight: 220 lbs.
Max. Tension: 100 lbs.
Strap Width: ¼" – 5 ⁄ "
8
Core Capacity: Uses 8 x 8", 9 x 8" or 11 x 8"
(Core Dia. x Width)
Safety Switch: Stops machine when top is lifted.
Power: 110 VAC, 50/60 Hz, Single phase.

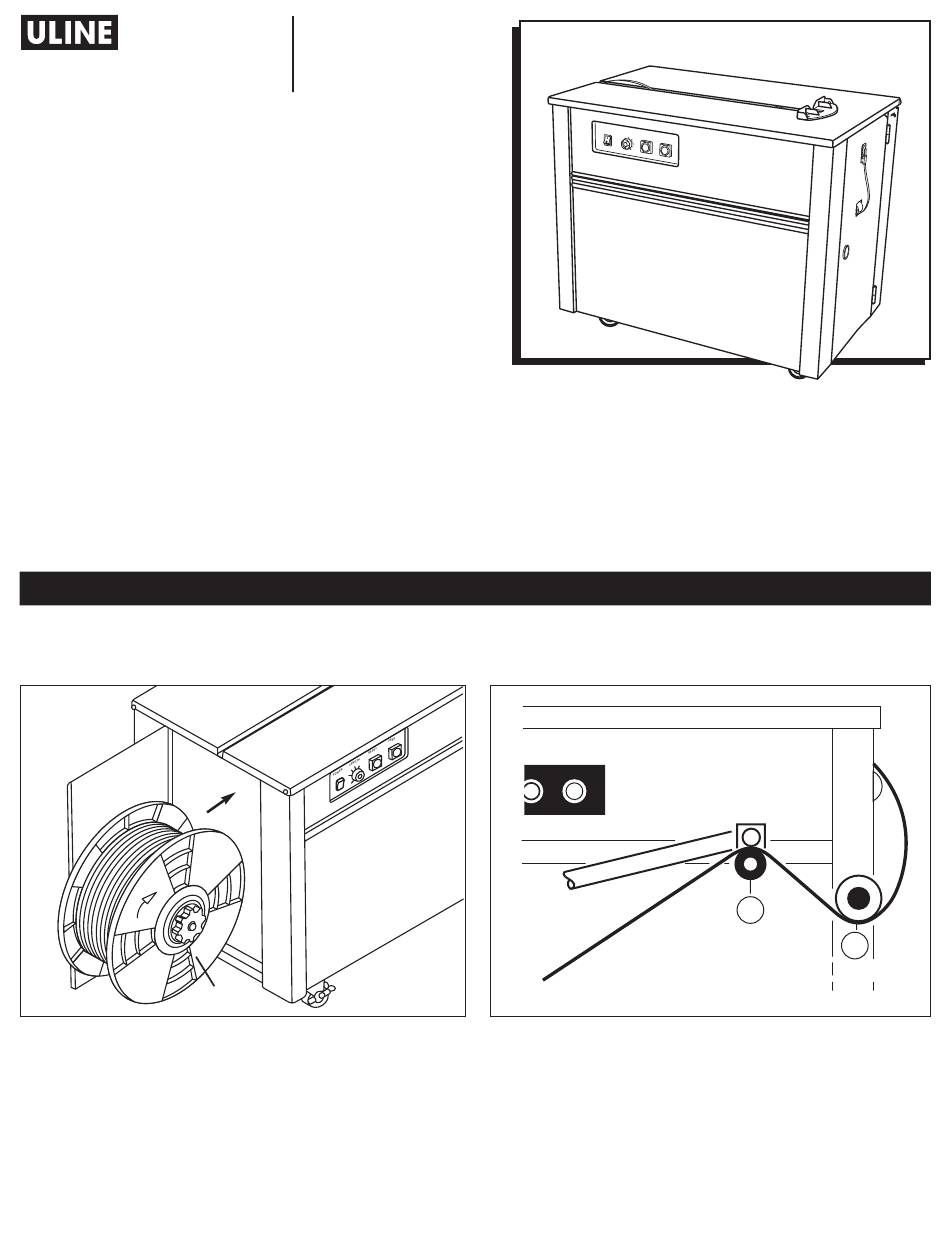

Open lid and remove contents from tray. Install package guide on lid.
L O A D R E L E
Right Side
1. Remove plastic reel from machine. It comes preset
for 9" core. Remove outer ring adapter for 8" core. For
11" strapping core, the H-959-TC075 adapter can be
purchased.
2. Load Strapping onto reel. DO NOT REMOVE BANDING UNTIL
LOADED. Make sure strap is going in correct direction
indicated by arrow.
PAGE 1 OF 8
1-800-295-5510
uline.ca

MACHINE SETUP

R
Remove adapter
before installing
reel.
POW ER
LEN GTH
RES ET
3
2 FEE D
ON
4
5
OFF
0 MAX
M
O U E T S R T A P P N I G
1. Pull slide roller bar down and thread strapping over (1)
and under (2). Thread strap through guide (Ref 10) until it
reaches top of machine.
Pour le français, consulter les pages 5-8.
1
SLIDE ROLLER
2
BAND GUIDE
ROLLER
1212 IH-2079
