Trinity EcoStorage TBFZ-1401 Owner's Manual

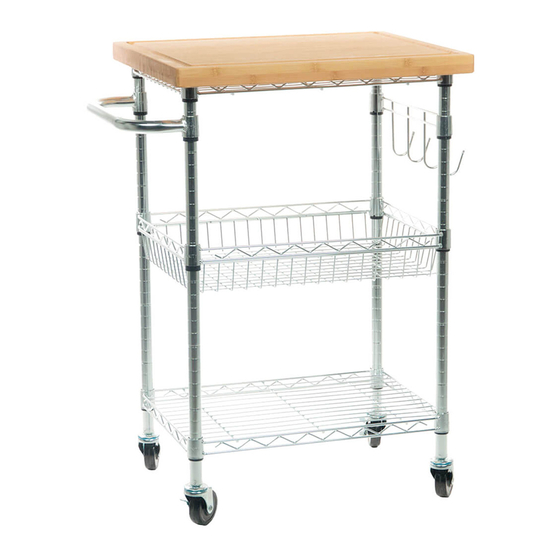

Bamboo top kitchen cart
Hide thumbs Also See for EcoStorage TBFZ-1401:
Table of Contents

Advertisement

Quick Links

Download this manual

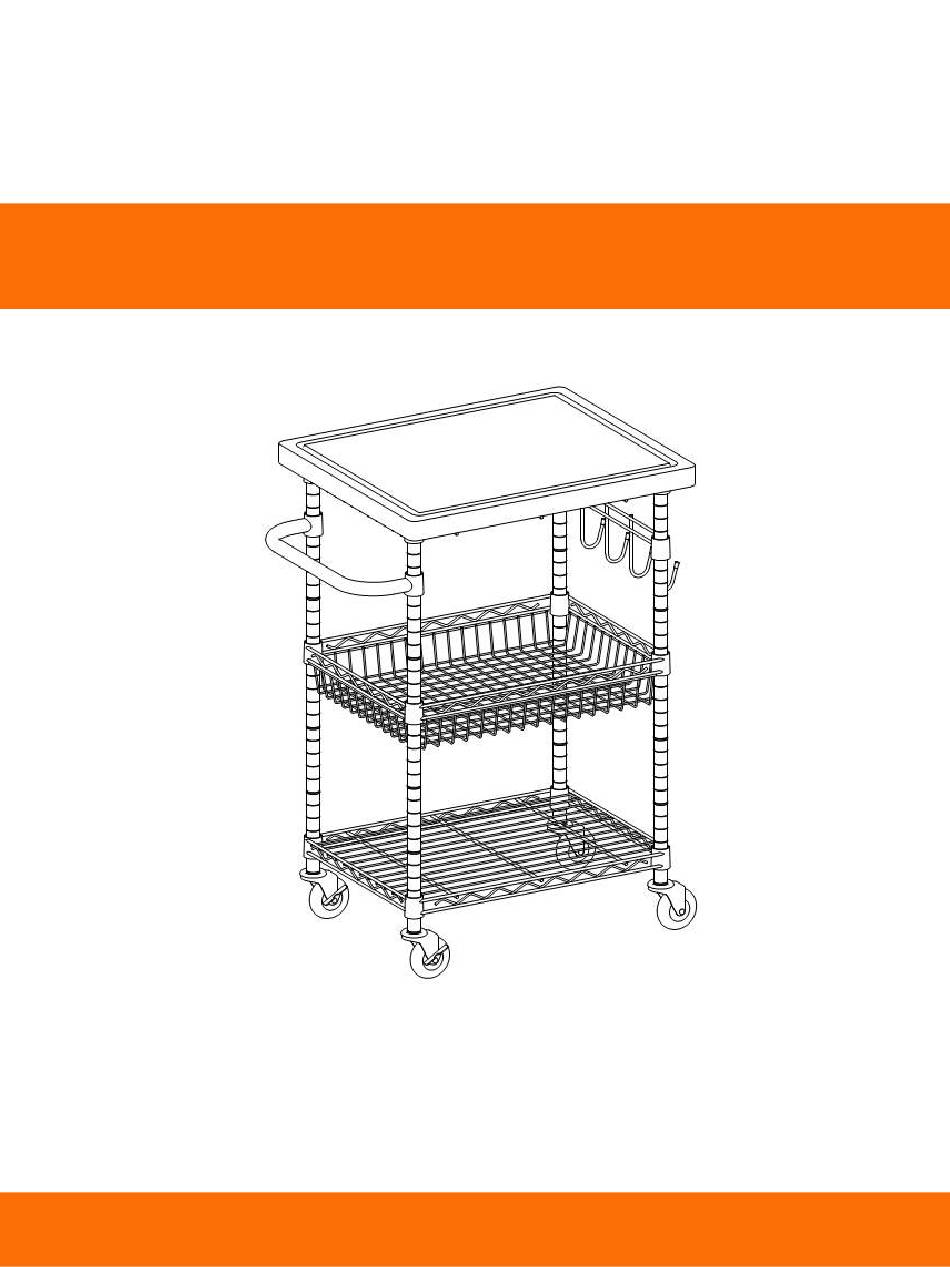

OWNER'S MANUAL
BAMBOO TOP KITCHEN CART

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EcoStorage TBFZ-1401 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trinity EcoStorage TBFZ-1401

Summary of Contents for Trinity EcoStorage TBFZ-1401

  • Page 1 OWNER’S MANUAL BAMBOO TOP KITCHEN CART...

  • Page 2: Parts List

    PARTS LIST Your Bamboo Top Kitchen Cart should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact Customer Service. Parts can also be requested. You will need no additional tools for assembly.
  • Page 3 ASSEMBLY INSTRUCTIONS STEP 1 Screw each CASTER (J & K) into the bottom of each BOTTOM POLE (A). Turn clockwise to A (4) J (2) K (2) L (1) screw in place. Make sure LOCKING CASTERS are on the same side. Use provided caster wrench to tighten completely.
  • Page 4 ASSEMBLY INSTRUCTIONS STEP 3 Place SHELF – LIP DOWN (E) on its side and slide (4) BOTTOM POLES (A) through (4) corner cylinders of SHELF – LIP DOWN (E). Make sure the E (1) corner cylinders are positioned over SLIP SLEEVES (I). Slowly stand the unit upright.
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 5 Repeat Step 2 for BASKET (C), CART HANDLE (G), and SIDEBAR w/4 HOOKS (H), and slide each piece onto SLIP SLEEVES (I). I (16) C (1) G (1) H (1) Only install ONE item at a time. Make sure to put SLIP SLEEVES (I) at the desired heights for each item.
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 6 Repeat Step 2 for SHELF – LIP UP (F) and place SLIP SLEEVES (I) at the highest position on the Top Pole. Slide SHELF – LIP UP (F) onto SLIP F (1) I (8) SLEEVES (I). STEP 7 Place BAMBOO CUTTING BOARD (D) on top of SHELF –...

  • Page 7: Service Parts List

    SERVICE PARTS LIST Our Customer Service provides the following replacement parts: Description Description Bamboo Board Wrench Shelf (lip up) Locking Caster Slip Sleeve Bottom Pole Sidebar w/ 4 Hooks Pole Connector Basket Top Pole Shelf (lip down) Cart Handle Non-locking Caster End Cap...

  • Page 8: Care And Maintenance

    WARNINGS 1. Read and understand all instructions. Failure to follow all instructions may result in injury and/or damage. 2. Use the provided caster wrench to tighten casters completely. Failure to do as instructed could result in the caster stem breaking thereby causing the cart to collapse. 3.

  • Page 9: Product Registration

    PRODUCT REGISTRATION Thank you for purchasing this Bamboo Top Kitchen Cart. In order to register your product and receive streamlined customer service, please fill out the following Product Registration For. Include a copy of your original receipt with your submission. First Name: Last Name: Address:...

  • Page 10: Year Limited Warranty

    1 YEAR LIMITED WARRANTY Bamboo Top Kitchen Cart We warrant to the original consumer purchaser (“Purchaser”) of the Bamboo Top Kitchen Cart (“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the date of original purchase.
  • Page 11 CONTACT US QUESTIONS? NEED PARTS? WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service.
