Everything in its place

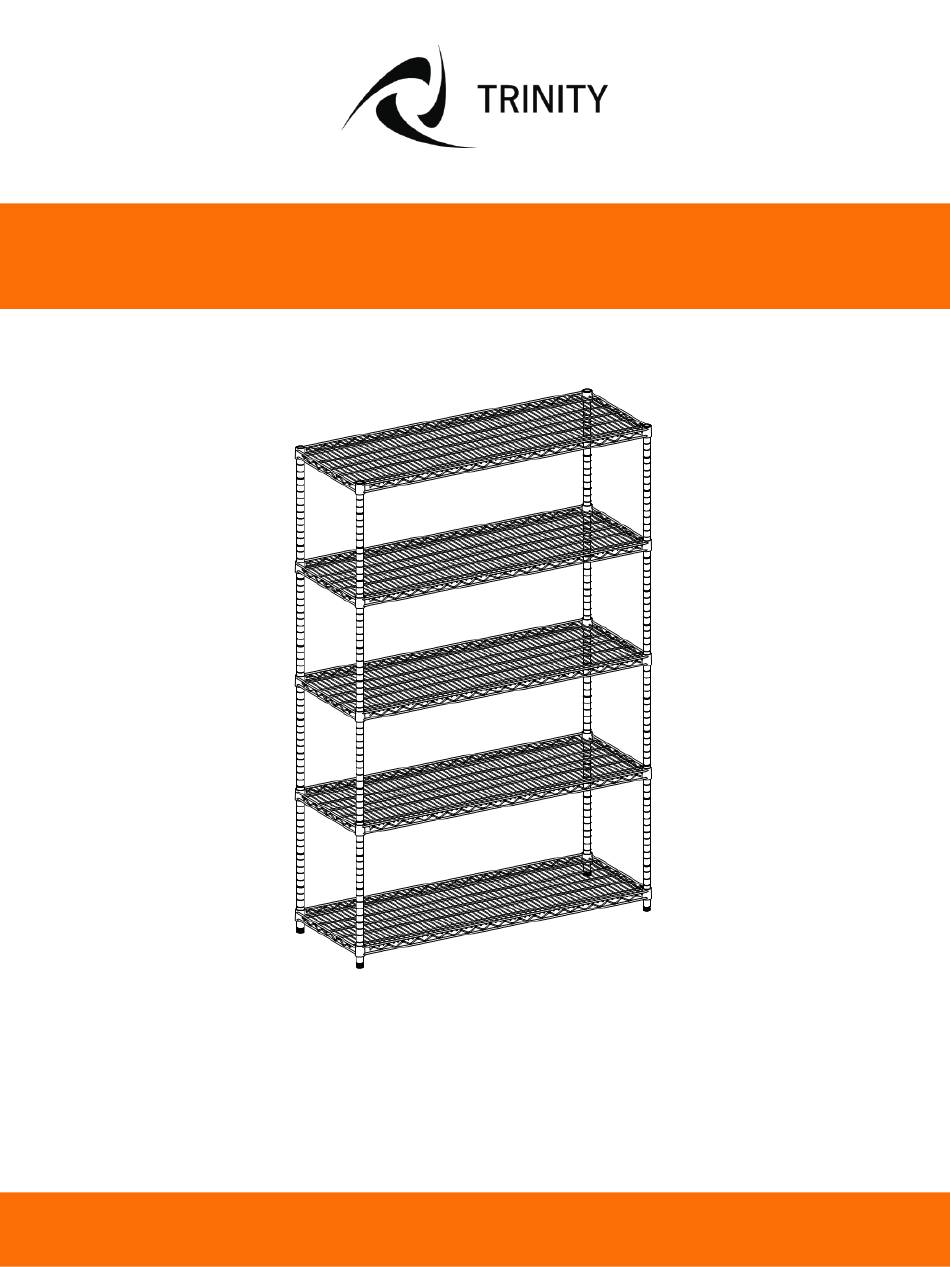

OWNER'S MANUAL
TRINITY ECOSTORAGE™ 5-TIER NSF 48" x 18" x 72"
WIRE SHELVING RACK – CHROME
Model # TBFZ-0910

Advertisement

loading
Need help?

Need help?

Do you have a question about the ECOSTORAGE TBFZ-0910 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trinity ECOSTORAGE TBFZ-0910

  • Page 1 ® Everything in its place OWNER’S MANUAL TRINITY ECOSTORAGE™ 5-TIER NSF 48" x 18" x 72" WIRE SHELVING RACK – CHROME Model # TBFZ-0910...
  • Page 2: Parts List

    Your TRINITY EcoStorage™ 5-Tier Wire Shelving Rack should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online at www.trinityii.com (Help &...
  • Page 3 C (1) Stand the unit upright. *Note: The level side of the SHELF (C) is the TOP side (the TRINITY logo on the corner cylinders should be right-side up.) **Use a rubber mallet, if needed, to secure the SHELF (C).
  • Page 4 **Use a rubber mallet, if needed, to secure the SHELVES (C). STEP 4: INSTALLING TOP POLES Screw the TOP POLE (B) into the BOTTOM POLE (A). The tops of these poles are indicated by the BLACK END CAP. B (4) © 2017 TRINITY - 800.985.5506...
  • Page 5 **Use a rubber mallet, if needed, to secure the SHELVES (C). STEP 6: FEET LEVELERS The Feet Levelers are already screwed into the BOTTOM POLES (A) and you can adjust as needed to ensure your shelving rack is level. © 2017 TRINITY - 800.985.5506...
  • Page 6 SERVICE PARTS LIST – TBFZ-0910 TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description XBK-01-011-2543 Slip Sleeve XBK-98-003-2538 Feet Leveler ZSV-04-006-3600 Top Pole XBK-23-004-2517 Endcap ZSV-01-013-2523 Pole Connector ZSV-03-007-4818 Shelf ZSV-04-008-3600 Bottom Pole © 2017 TRINITY - 800.985.5506...
  • Page 7: Care And Maintenance

    800 lb (evenly distributed) Total weight capacity of Shelving Rack 4000 lb (evenly distributed) CARE AND MAINTENANCE • Avoid harsh, abrasive cleaners, and other corrosive chemicals • This item is not certified for outdoor use © 2017 TRINITY - 800.985.5506...
  • Page 8 © 2017 TRINITY - 800.985.5506...
  • Page 9: Product Registration

    PRODUCT REGISTRATION Thank you for purchasing a TRINITY EcoStorage™ 5-Tier NSF Wire Shelving Rack. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to...
  • Page 10 © 2017 TRINITY - 800.985.5506...
  • Page 11: Year Limited Warranty

    Product which shall not be greater than the amount of the purchase price of the Product, at the option of Trinity, during the warranty period. All replaced parts and Products become the property of Trinity and must be returned to Trinity.
  • Page 12 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 8:00 AM –...
