OWNER'S MANUAL

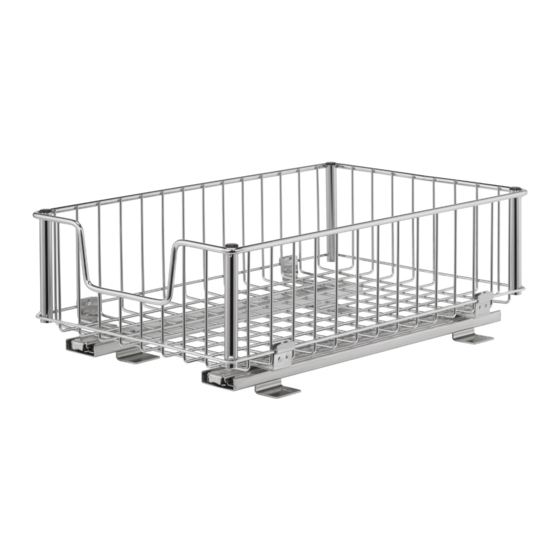

TRINITY SLIDING WIRE DRAWER
Model # TBFC-2205/22052 (2-pack)
Important / Important / Importante
FOR 3D ASSEMBLY INSTRUCTIONS
Intelligent Instructions
Directives intelligentes
POUR DES DIRECTIVES D'ASSEMBLAGE 3D
Instrucciones Inteligentes
PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGER L'APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA
Advertisement
Related Manuals for Trinity TBFC-2205
Summary of Contents for Trinity TBFC-2205
- Page 1 OWNER’S MANUAL TRINITY SLIDING WIRE DRAWER Model # TBFC-2205/22052 (2-pack) Important / Important / Importante FOR 3D ASSEMBLY INSTRUCTIONS Intelligent Instructions Directives intelligentes POUR DES DIRECTIVES D’ASSEMBLAGE 3D Instrucciones Inteligentes PARA INSTRUCCIONES DE ENSAMBLAJE EN 3D DOWNLOAD THE FREE APP | TÉLÉCHARGER L’APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA...
-
Page 2: Parts List
Your TRINITY Sliding Wire Drawer should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online at our customer center at www.trinityii.com. - Page 3 Extend the SLIDES (B) & (C) slightly and align the center of the oval slots to your marking in the cabinet. Use the self-tapping CABINET SCREWS (F) to fasten the LEFT & RIGHT SLIDES (B) & (C) in your cabinet. BACK FRONT © 2023 TRINITY - 800.985.5506...
- Page 4 Installation Suggestion: With the WIRE DRAWER (A) resting on top of the clips, brace the top of the WIRE DRAWER (A) with one hand and, with a rubber mallet, lightly tap each bottom corner of the WIRE DRAWER (A) to secure the WIRE DRAWER (A) into the clips. © 2023 TRINITY - 800.985.5506...
- Page 5 Rest WIRE DRAWER (A) on top of the CLIPS to ensure proper SLIDE spacing. • Note: For ease of installation, do NOT clip the WIRE DRAWER (A) into the LEFT & RIGHT SLIDES (B) & (C) until Step 4. Position as such: © 2023 TRINITY - 800.985.5506...
- Page 6 Installation Suggestion: With the WIRE DRAWER (A) resting on top of the CLIPS, brace the top of the WIRE DRAWER (A) with one hand and, with a rubber mallet, lightly tap each bottom corner of the CLIPS to secure the WIRE DRAWER (A) into the CLIPS. © 2023 TRINITY - 800.985.5506...
- Page 7 SERVICE PARTS LIST – TBFC-2205 / TBFC-22052 TRINITY Customer Service provides the following replacement parts: Part Number Description XBK-23-002-1210 Plastic Cap ZSV-01-003-0420 Cabinet Screw XWH-96-001-0001 Template ZSV-01-004-0410 Plate Screw ZSV-01-005-0428 Rack Plate ZSV-12-003-1575 Right Slide ZSV-12-004-1575 Left Slide CSV-21-001-1118 Wire Drawer...
-
Page 8: Care And Maintenance
5. Do NOT overload the product. Each drawer holds up to 50 lb with equal weight distribution. 6. Do NOT allow children to climb or play in the drawer. CARE AND MAINTENANCE • Avoid harsh, abrasive cleaners, and other corrosive chemicals • Keep dry and avoid damp environments © 2023 TRINITY - 800.985.5506... -
Page 9: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a TRINITY Sliding Wire Drawer. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com. - Page 10 © 2023 TRINITY - 800.985.5506...
-
Page 11: Year Limited Warranty
Product, use contrary to this User’s Manual, or alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject to the same conditions and limitations as is provided for our express warranty. - Page 12 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 5:00 AM –...
