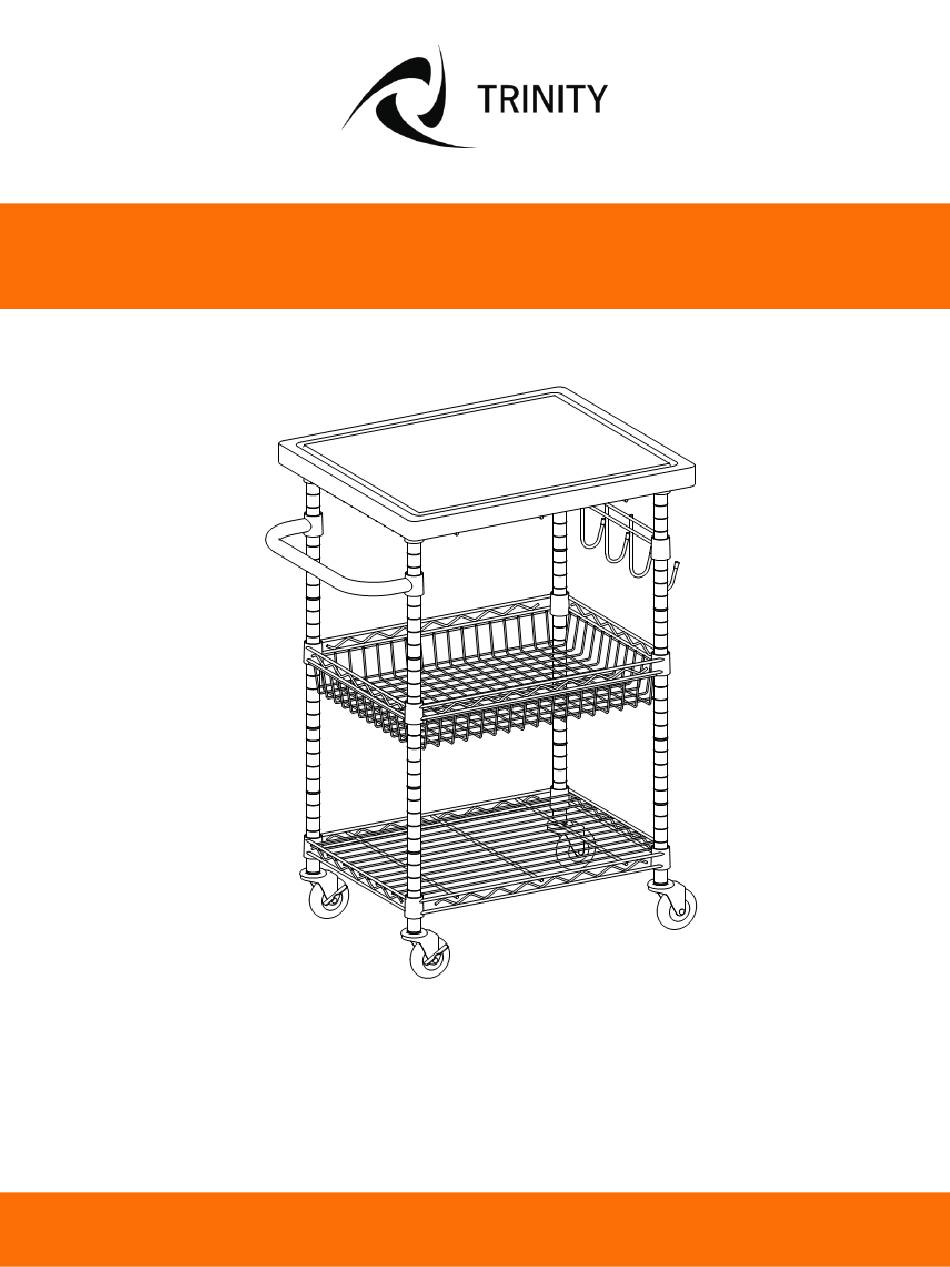

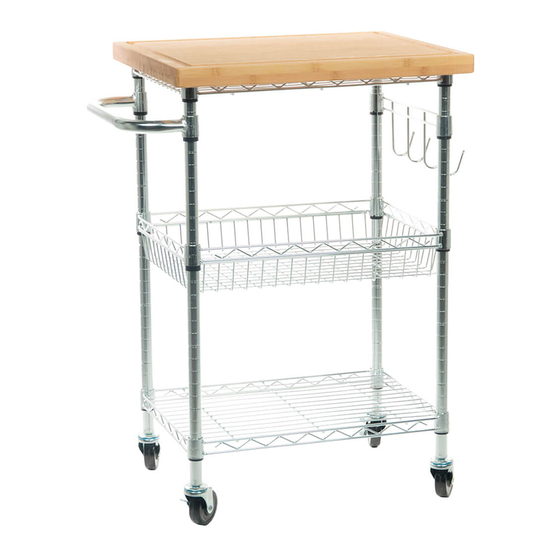

- Page 1 ® Everything in its place. OWNER’S MANUAL TRINITY ECOSTORAGE™ BAMBOO KITCHEN CART Model # TBFZ-1401...
-
Page 2: Parts List
Your TRINITY EcoStorage™ Bamboo Kitchen Cart should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online at www.trinityii.com (Help &... - Page 3 BOTTOM POLE (A). Turn clockwise to screw in place. Make sure the Locking Casters are on the same side. A (4) J (4) Tighten the casters completely. Failure to do as instructed could result in the caster stem breaking. © 2017 TRINITY - 800.985.5506...
- Page 4 E (1) Stand the unit upright. *Note: The level side of the SHELF (E) is the TOP side (the TRINITY logo on the corner cylinders should be right-side up). **Use a rubber mallet, if needed, to secure the SHELF (E).
- Page 5 HANDLE (G), and the SIDEBAR w/4 HOOKS (H), and slide each piece onto the SLIP SLEEVES (I). Only install ONE item at a I (16) C (1) G (1) H (1) time. Adjust to desired heights. © 2017 TRINITY - 800.985.5506...
- Page 6 CUTTING BOARD (D) will fit exactly on D (1) the SHELF (F). Remove the BAMBOO CUTTING BOARD (D) to clean thoroughly. Using mineral oil regularly will prevent your BAMBOO CUTTING BOARD (D) from becoming dry and brittle. © 2017 TRINITY - 800.985.5506...
- Page 7 SERVICE PARTS LIST – TBFZ-1401 TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description ONA-20-001-2420 Bamboo Board XXX-97-002-0001 Wrench ZSV-03-008-2216 Shelf (lip up) ZSV-99-008-3010 Locking Caster XBK-01-011-2543 Slip Sleeve ZSV-04-008-1525 Bottom Pole ZSV-02-007-0001 Sidebar w/ 4 Hooks...
-
Page 8: Care And Maintenance
Total weight capacity of Cart 500 lb (evenly distributed) CARE AND MAINTENANCE • Avoid harsh, abrasive cleaners, and other corrosive chemicals. • Bamboo board should be hand washed only and periodically treated with food safe oil. © 2017 TRINITY - 800.985.5506... -
Page 9: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a TRINITY EcoStorage™ Bamboo Kitchen Cart. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to... - Page 10 © 2017 TRINITY - 800.985.5506...
-
Page 11: Year Limited Warranty
Product which shall not be greater than the amount of the purchase price of the Product, at the option of Trinity, during the warranty period. All replaced parts and Products become the property of Trinity and must be returned to Trinity. - Page 12 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 8:00 AM –...
