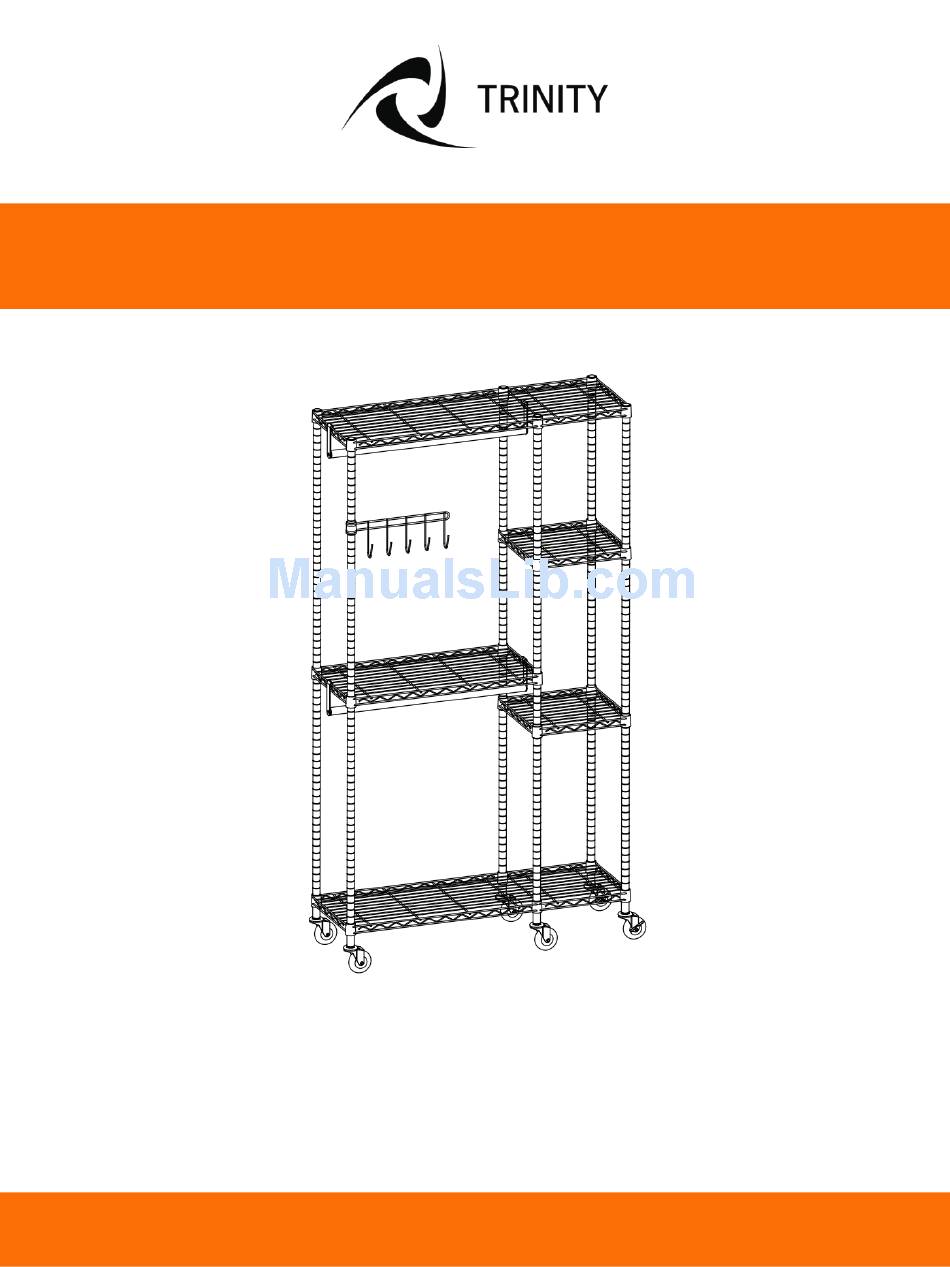

- Page 1 ® Everything in its place. OWNER’S MANUAL TRINITY MOBILE CLOSET ORGANIZER Model # TBFZ-2702 / TBFPBR-2702...
- Page 2 © 2016 TRINITY - 800.985.5506...
-
Page 3: Parts List
PARTS LIST Your TRINITY Mobile Closet Organizer should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online at www.trinityii.com (Help &... - Page 4 BOTTOM POLE (F). DO NOT place more than one pair on each POLE (F) at a time. * Note: There will be a very small gap in-between the SLIP SLEEVES (J)—this is normal. © 2016 TRINITY - 800.985.5506...
- Page 5 SLIP SLEEVES (J). Stand the unit upright. *Note: The level side of the LARGE SHELF (A) is the TOP side (the TRINITY logo on the corner cylinders should be right-side up.) **Use a rubber mallet, if needed, to secure the LARGE SHELF (A).
- Page 6 SMALL SHELF (C), please make sure that you place the SLIP SLEEVES (J) at least 4 indentations above the SMALL SHELF (C) so that the HANGING BAR (G+H) can fit properly. *Use a rubber mallet, if needed, to secure the SHELVES (A+B+C). © 2016 TRINITY - 800.985.5506...
- Page 7 Hang the HANGING BRACKET (H) on both ends of the G (2) H (4) MEDIUM SHELF (B) and the LARGE SHELF (A) as shown. Fasten HANGING SCREW (H) through HANGING BRACKET (H) to HANGING ROD (G). Do this for both HANGING RODS (G). © 2016 TRINITY - 800.985.5506...
- Page 8 ASSEMBLY INSTRUCTIONS STEP 9 Locate the desired position and place a pair SLIP SLEEVES (J) onto the pole. I (1) J (2) Slide the SIDEBAR W/ HOOKS (I) down, over the SLIP SLEEVES (J). © 2016 TRINITY - 800.985.5506...
- Page 9 SERVICE PARTS LIST – TBFPBR-2702 Bronze Color TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description XBK-01-012-2543 Slip Sleeve XXX-97-002-0001 Wrench PBR-04-006-2475 Top Pole PBR-03-007-2814 Medium Shelf ZSV-01-013-2523 Pole Connector PBR-02-007-0004 Sidebar w/ Hooks PBR-04-007-2500...
- Page 10 SERVICE PARTS LIST – TBFZ-2702 Chrome Color TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description XBK-01-011-2543 Slip Sleeve XXX-97-002-0001 Wrench ZSV-04-006-2475 Top Pole ZSV-03-007-2814 Medium Shelf ZSV-01-013-2523 Pole Connector ZSV-02-007-0004 Sidebar w/ Hooks ZSV-04-007-2500...
-
Page 11: Care And Maintenance
60 lb Weight capacity per hanging rod 40 lb Weight capacity per side bar 10 lb Total weight capacity per organizer 300 lb CARE AND MAINTENANCE • Avoid harsh, abrasive cleaners, and other corrosive chemicals. © 2016 TRINITY - 800.985.5506... - Page 12 © 2016 TRINITY - 800.985.5506...
-
Page 13: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a TRINITY Mobile Closet Organizer. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to... - Page 14 © 2016 TRINITY - 800.985.5506...
-
Page 15: Year Limited Warranty
Product, use contrary to this User’s Manual, or alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject to the same conditions and limitations as is provided for our express warranty. - Page 16 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 8:00 AM –...
