Summary of Contents for Trinity TBFLWH-1402

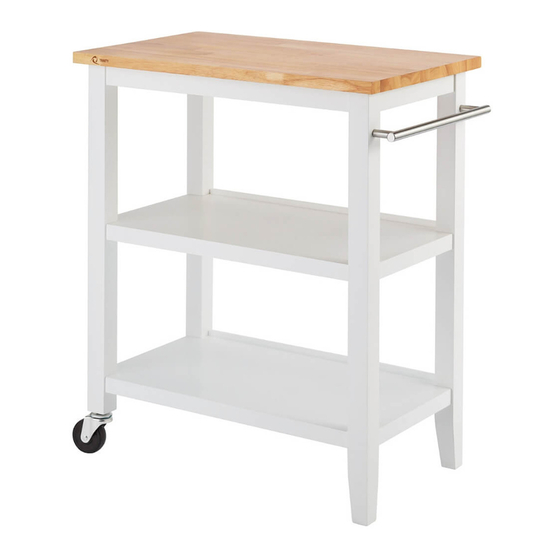

- Page 1 Everything in its place. ® OWNER’S MANUAL TBFLWH-1402 TBFLWH-1403 TRINITY WOOD KITCHEN CART - WHITE Model # TBFLWH-1402 TBFLWH-1403 (w/ tray)
-
Page 2: Parts List
PARTS LIST Your TRINITY Wood Kitchen Cart should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online via our “Contact Us”... - Page 3 Place HANDLE SCREW (H) through hole in the HANDLE LEG (D) and tighten it E (1) H (2) I (1) with SCREWDRIVER (I) to the nut in the HANDLE (E). Repeat for the other side. © 2016 TRINITY - 800.985.5506...
- Page 4 WOOD TOP (A) or HANDLE LEG (D) C (2) G (6) I (1) and tighten it with SCREWDRIVER (I) to nut in CASTER LEG (C). Repeat until all 6 LEG SCREWS (G) have been installed. © 2016 TRINITY - 800.985.5506...
- Page 5 Failure to do as instructed could result in the caster stem breaking. STEP 6 Carefully flip completed cart right side up. K (1) TBFLWH-1403 only TBFLWH-1403 only Place TRAY (K) onto SHELF (B). TBFLWH-1402 TBFLWH-1403 © 2016 TRINITY - 800.985.5506...
-
Page 6: Service Parts List
SERVICE PARTS LIST TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description LNA-06-003-3018 Wood Top Frame XXX-97-001-0002 Screwdriver LWH-04-003-3400 Right Handle Leg XXX-97-002-0001 Wrench XBS-05-004-1600 Handle ZSV-99-007-3010 Caster ZSV-01-004-0643 Handle Screw LWH-04-005-3025 Caster Leg LWH-04-004-3400... -
Page 7: Care And Maintenance
If needed, solvent-based wood furniture cleaner can be used. • Clean up any spills immediately to prevent stains from forming on the wood top. • Do not let children climb or play on the cart. © 2016 TRINITY - 800.985.5506... - Page 8 © 2016 TRINITY - 800.985.5506...
-
Page 9: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a TRINITY Wood Kitchen Cart. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com. - Page 10 © 2016 TRINITY - 800.985.5506...
-
Page 11: Year Limited Warranty
Product, use contrary to this User’s Manual, or alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject to the same conditions and limitations as is provided for our express warranty. - Page 12 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 8:00 AM –...
