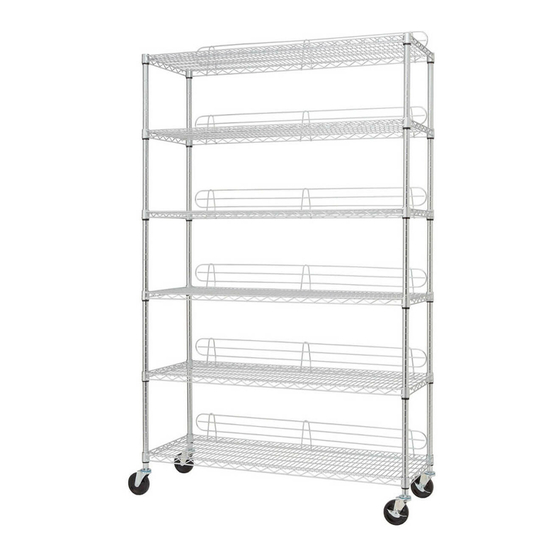

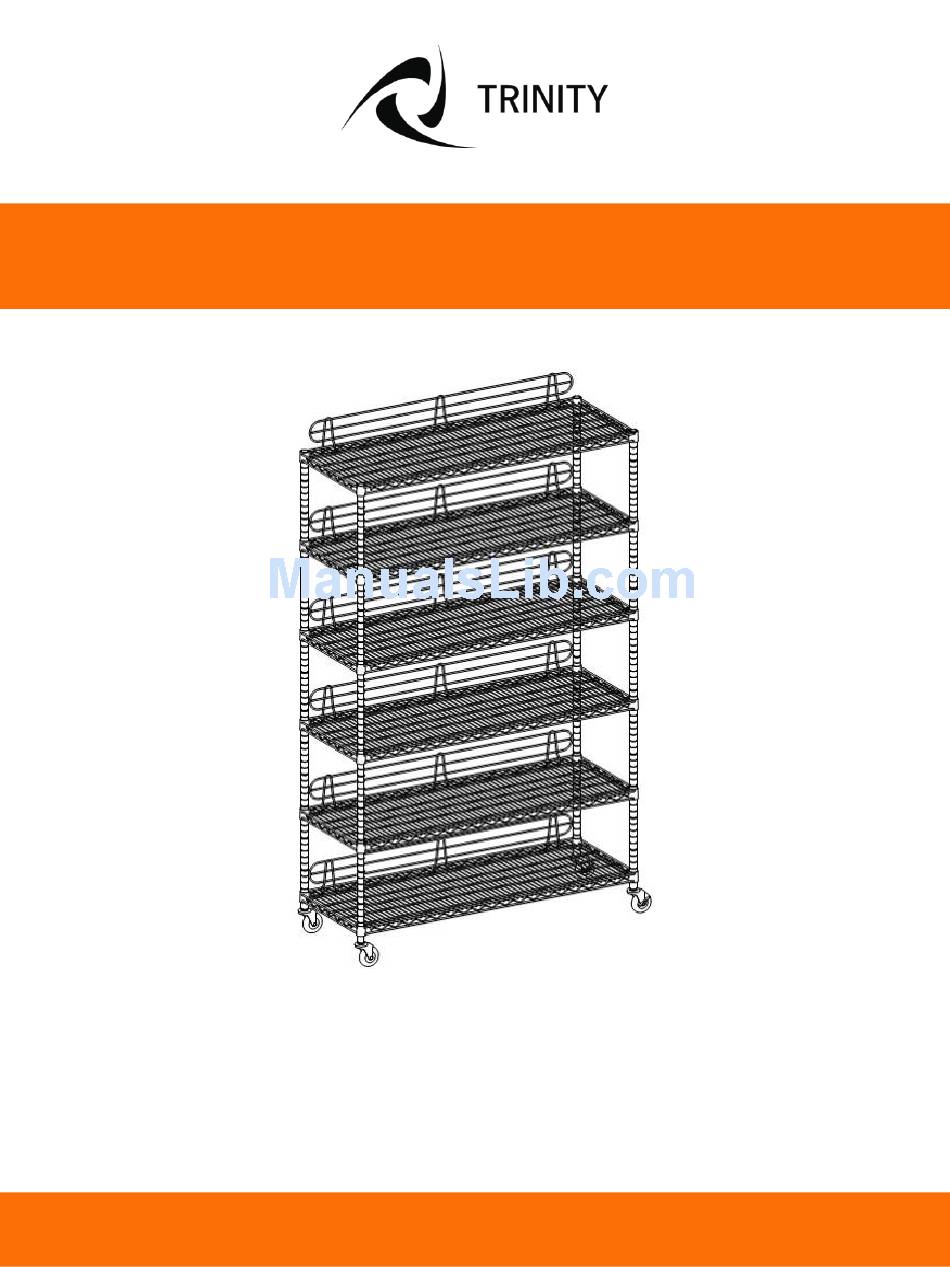

- Page 1 ® Everything in its place. OWNER’S MANUAL TRINITY ECOSTORAGE™ 6-TIER NSF 48” x 18” x 72” WIRE SHELVING RACK w/WHEELS – CHROME Model # TBFC-0907...
-
Page 2: Parts List
PARTS LIST Your TRINITY EcoStorage™ 6-Tier NSF Wire Shelving Rack w/Wheels should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. - Page 3 * For safety and stability, the lowest SHELF (C) should be lower than the 3 notch from the bottom. ** Note: There will be a very small gap in-between the SLIP SLEEVES (D)—this is normal. © 2016 TRINITY - 800.985.5506...
- Page 4 C (1) Stand the unit upright. *Note: The level side of the SHELF (C) is the TOP side (the TRINITY logo on the corner cylinders should be right- side up.) **Use a rubber mallet, if needed, to secure the SHELF (C).
- Page 5 Lower SHELF (C) over the TOP POLES (B) so that the corner cylinders of the SHELF (C) are positioned over the SLIP SLEEVES (D). Repeat Step 6 to install other SHELVES (C) as desired. **Use a rubber mallet, if needed, to secure the SHELVES (C). © 2016 TRINITY - 800.985.5506...
- Page 6 Screw THREADED INSERTS (I) into the bottom of each TOP POLE (B). Push in END CAPS (H) into the top of each BOTTOM POLE (A). I (4) H (4) Repeat Steps 1, 2, 3, 4, and 7. © 2016 TRINITY - 800.985.5506...
- Page 7 SERVICE PARTS LIST – TBFC-0907 TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description XBK-01-011-2543 Slip Sleeve XBK-98-003-2538 Feet Leveler ZSV-04-006-3600 Top Pole ZSV-99-007-4010 Non-locking Caster ZSV-01-013-2523 Pole Connector XXX-97-002-0001 Wrench ZSV-04-008-3600 Bottom Pole ZSV-02-006-0001...
-
Page 8: Care And Maintenance
Total weight capacity of 3-Tier Shelving Rack 2400 lb (on Feet Levelers) (evenly distributed) 800 lb (on Casters) CARE AND MAINTENANCE • Avoid harsh, abrasive cleaners, and other corrosive chemicals • This item is not certified for outdoor use © 2016 TRINITY - 800.985.5506... -
Page 9: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a TRINITY EcoStorage™ 6-Tier NSF Wire Shelving Rack w/Wheels. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to... - Page 10 © 2016 TRINITY - 800.985.5506...
-
Page 11: Year Limited Warranty
Product, use contrary to this User’s Manual, or alteration by any one other than Trinity. The warranty period of 1 year shall not be extended or renewed by the repair or replacement of, or compensation for, the Product. Any warranty implied by applicable law is limited in duration to one year from the date of purchase and is subject to the same conditions and limitations as is provided for our express warranty. - Page 12 WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com Monday through Friday 8:00 AM –...
