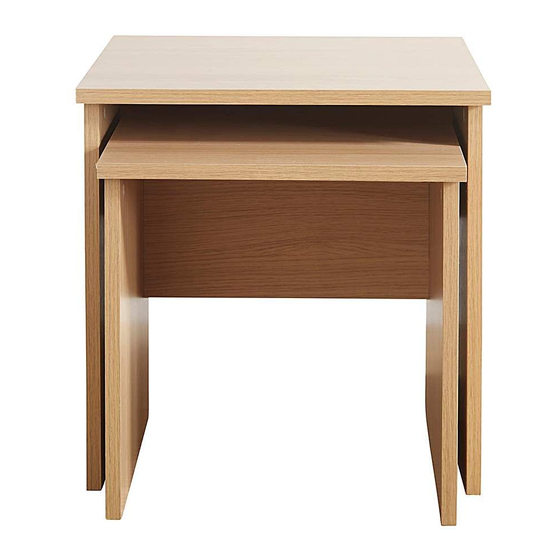

Nest of Tables
Assembly Instructions
052 xx 7170
- Please keep for future reference
Dimensions
Width - 47cm
Depth - 38.8cm
Height - 40.6cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 01709 534123
Please turn to back page for important information when contacting Customer Helpline.
Rev A - 26/09/2016
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for J D Williams Evesham Nest of Tables 052 7170 Series
Summary of Contents for J D Williams Evesham Nest of Tables 052 7170 Series
- Page 1 Nest of Tables Assembly Instructions 052 xx 7170 - Please keep for future reference Dimensions Width - 47cm Depth - 38.8cm Height - 40.6cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 01709 534123 Please turn to back page for important information when contacting Customer Helpline.
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly Do not stand or put weight on Check you have all the We do not the product, this could cause components and tools listed on recommend the damage.
- Page 3 Components - Panels Please check you have all the panels listed below Important - Thick lines indicate finished edges Grooved Grooved edge edge Large right end panel (38.4x36cm) Large left end panel (38.4x36cm) Trim x 2 Code - 6859 Code - 6858 (38.4cm long) Code - 684xx6520...
-
Page 4: Components - Exploded View
Components - Exploded View Important - Thick lines indicate finished edges 0376 684xx6520 Trim 6858 6860 6859 0377 0034 0032 684xx6520 Trim 0033... - Page 5 If you have damaged or missing components, call the Components-Fittings Customer Helpline: 01709 534123 Please turn to back page for important information when contacting Customer Helpline. Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly, In some case more fittings may be supplied than are required.
- Page 6 Assembly Instructions Step 1 Fittings you will need for this step: Fitting dowels to large and small tops (x8) 0377 0376 Note: Insert metal dowels as far as shown by arrows. Do not over tighten. Step 2 Fittings you will need for this step: Fitting cams to large Large and small rails...
- Page 7 Assembly Instructions Step 4 Front grooved edge Front grooved edge Assembly of large table Insert dowels in left and right 6859 6858 end panels into cams 6860 in rail then lock. Now insert dowels 0376 0376 into cams 6859 6858 in left and right end panels then...
- Page 8 Assembly Instructions Step 6 Fittings you will need for this step: Attach trims Warning: Trims Lift with care. (x2) Locate the notch on trim into 6858 groove on ends 6859 6859 Ensure the trims are positioned 6858 correctly (DIAG 1). To insert trims use a hammer, place a cardboard packing piece...
