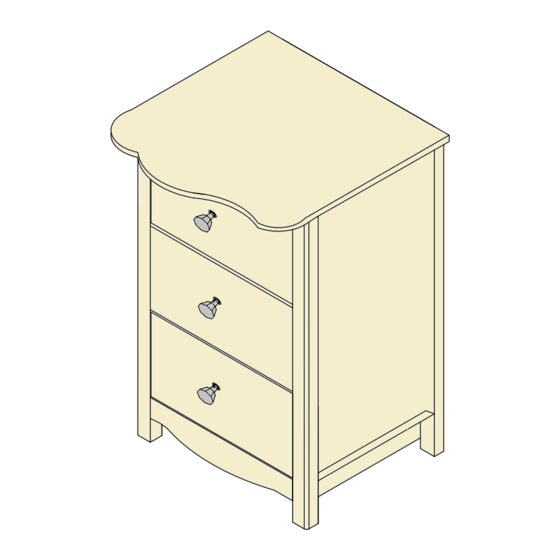

- Page 1 3 Drawer Bedside Unit Assembly Instructions - please keep for future reference XK091 464/3944 PX946 Dimensions Width - 42cm Depth - 32cm Height - 59.5cm Important – Please read these instructions fully before starting assembly Issue 1 - 12/04/2017...
-
Page 2: Care And Maintenance
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • We do not components and tools listed on or put weight on the product, recommend the use page 2 this could cause damage. - Page 3 Components - Panels Please check you have all the panels listed below G×1 A×1 F×1 B×1 I×3 K×3 E×1 D×1 C×1 J×3 L×3 H×3 Components - Fittings Note: may be supplied than are required. 3 ×20 4 ×20 5 ×12 2 ×11 1 ×30 6 ×13...
- Page 5 Assembly Instructions Step 1 1. Insert 4 x Male Camlocks 4 into the underside of Top Panel A 2. Connect Front Bar G to Top Panel A using 2 x Screw 9 as shown Step 2 1. To Right Side Panel E Insert 2 x Male Camlocks 2.
- Page 6 Assembly Instructions Step 4 1. Locate Base Panel C onto Male Camlocks in Left Side Panel D as shown. 2. Into the underside of Base Panel C insert 2 x Female Camlocks 3 as shown. 3. Locate Base Plinth B into Side Panel D Step 5 1.
- Page 7 Assembly Instructions Step 6 1. Insert 4 x Dowels into the Top Edge of Side Panels D and E 2. Locate Top Panel A onto Side Panels 3. Into the holes shown in Side Panels D and E insert 4 x Female Camlocks 3 as shown.
- Page 8 Assembly Instructions Step 9 1. Into Drawer Front H Insert 4 x Male Camlocks 2. Locate Side Panels I J onto Male Camlocks 3. Connect Handle 8 using 1 x Screw 7 Step 10 Slide Drawer Base L into position Step 11 1.
- Page 9 Assembly Instructions Step 12 1. Insert 3 x Drawers into the unit WALL Step 13 This unit is floor standing but we recommend 1.Move the unit into desired position. Warning: The unit is heavy. Lift with care. 2. Mark the wall with a suitable scribe the position of the fixing holes.
