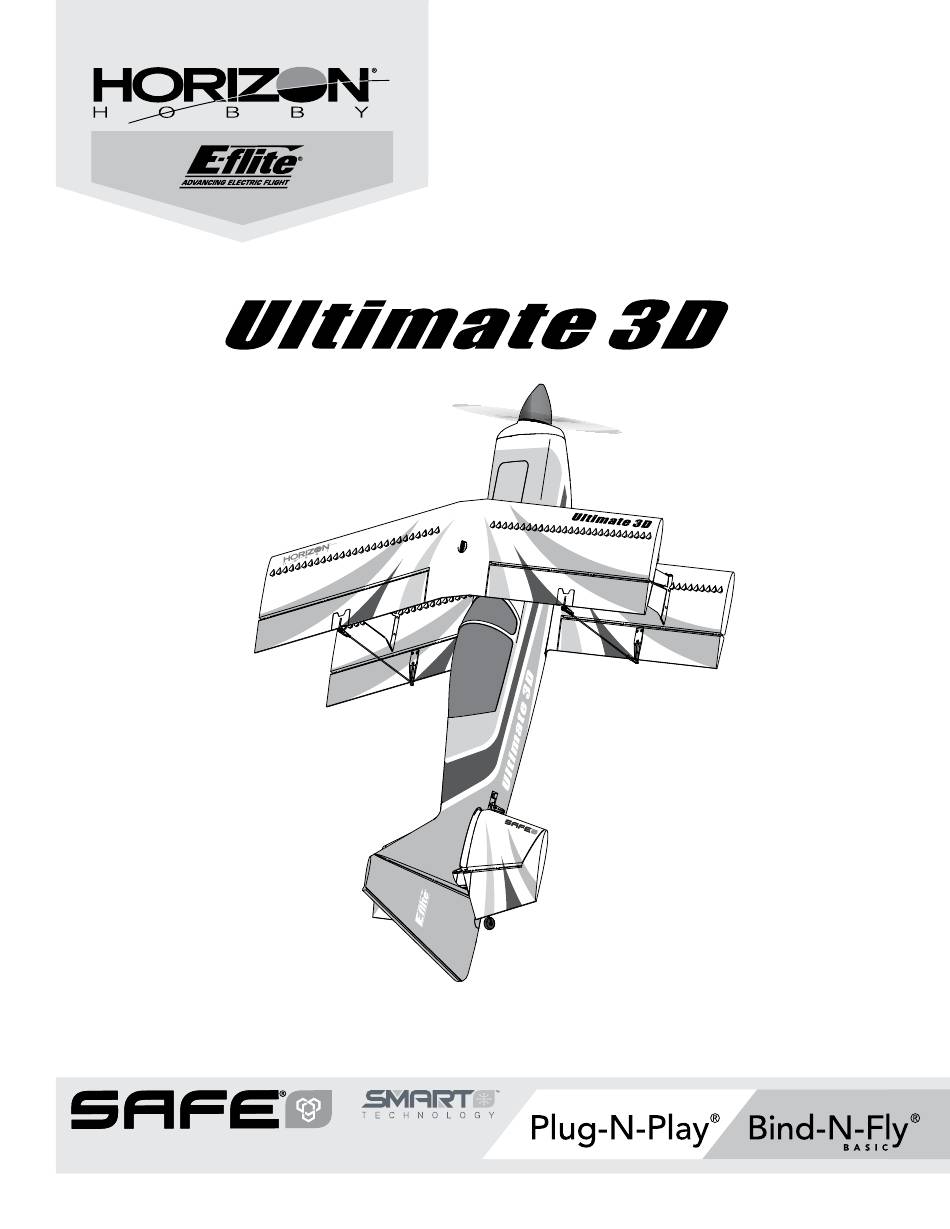

- Page 1 Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni SAFE Select Technology, Optional Flight Envelope Protection ®...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product. MEANING OF SPECIAL LANGUAGE:...
-
Page 3: Table Of Contents
Box Contents Quick Start Information 1. Blank (Acro) Model Transmitter Setup 2. Servo Reversing: Set all to normal 3. Travel Adjust (All Surfaces): 100% High Rate Low Rate p = 24mm p = 18mm Aileron q = 24mm q = 18mm Dual Rates* p = 45mm p = 30mm... -
Page 4: Preflight
The settings provided above for the DX6 and DX6e do not allow for the use of a SAFE Select ‡ switch. To use a SAFE Select switch on these systems see the section below for transmitter setup and operation information. Ultimate 3D... -
Page 5: Model Assembly
Disassemble in reverse order. Horizontal Stabilizer Installation IMPORTANT: The Ultimate 3D includes two tail tubes to accommodate the use of a 3s or 4s battery. The lightweight composite tube is recommended to achieve correct CG when using a 3S battery. The metal tube is recommended to achieve correct CG when using a 4S battery. - Page 6 1. Align the top wing with the center mouning post. Slide it into the latch as shown. 2. Secure the wing in place with the locking pin (C). Insert pin and turn 90 degrees to lock in place. Continued Ultimate 3D...
- Page 7 Model Assembly Continued 3. Slide the left and right wing strut in place, between the upper and lower wings as shown. Ensure that the arrow indicator on top of the strut is pointing forward and that the smooth side of the strut faces out. 4.
-
Page 8: Pnp Receiver Selection And Installation
The orientation of the receiver is critical for all AS3X and SAFE ® ® technology setups. CAUTION: Incorrect installation of the receiver could cause a crash. Ultimate 3D... -
Page 9: Battery Installation And Esc Arming
Battery Installation and ESC Arming Battery Selection We recommend the 2200mAh 14.8V 4S 30C Li-Po battery (SPMX22004S30). Refer to the Optional Parts List for other recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the Spektrum Smart Li-Po battery packs to fit in the fuselage. -
Page 10: Control Surface Centering And Adjusting A Ball Link
Refer to the Spektrum AR637T manual Elevator for adjustment of gain values. After flying, you may choose to adjust the linkage positions for the desired control response. See the table to the right. Ailerons Rudder More control throw Less control throw Ultimate 3D... -
Page 11: Binding
Binding General Binding Tips • The included receiver has been specifically programmed • Once bound, the receiver will retain its bind settings for operation of this aircraft. Refer to the receiver manual for that transmitter until you re-bind. for correct setup if the receiver is replaced. •... -
Page 12: Select Switch Designation
For more information about compatible transmitters, firmware updates, and how to use the SMART Technology on your transmitter, visit SpektrumRC.com. RPM: Volts: 0.0V Motor: 0.0A 0% Output Throttle: Fet Temp: 0.0C BEC: 0.0C 0.0A 0.0V Ultimate 3D... -
Page 13: Control Direction Test
Control Direction Test Switch on the transmitter and connect the battery. Use the transmitter to Transmitter Control Surface operate the aileron, elevator and rudder controls. View the aircraft from the rear command Response when checking the control directions. Elevator 1. Pull the elevator stick back. The elevators should move up, which will cause the aircraft to pitch up. -
Page 14: As3X Control Direction Test
After adjusting trim do not touch the control sticks for 3 seconds. This allows 3 Seconds the receiver to learn the correct settings to optimize AS3X performance. Failure to do so could affect flight performance. Ultimate 3D... -
Page 15: Flying Tips And Repairs
Flying Tips and Repairs Consult local laws and ordinances before choosing a flying location. WARNING: Always decrease throttle at propeller strike. Range Check your Radio System NOTICE: If a crash is imminent, reduce the throttle and trim fully. Failure to Before you fly, range check the radio system. -
Page 16: Post Flight
Thrust Reversing (optional) The Ultimate 3D is equipped with the Avian 60 amp SMART ESC with reversing. IMPORTANT: The motor will draw more current when spinning the propeller in Reversing the motor can be helpful when taxying or for shortening ground roll the reverse direction as the propeller is less efficient and creates more drag after a landing. -
Page 17: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater respond to throttle but responds to Throttle channel is reversed... -
Page 18: Replacement Parts
Prop Adapter: Ultimate 2 SPMX22004S30 2200mAh 4S 14.8V Smart 30C; IC3 EFL165501 Painted Fuselage: Ultimate 3D SPMX22004S50 2200mAh 4S 14.8V Smart 50C; IC3 EFL165502 Top Wing Set: Ultimate 3D SPMXC1010 Smart S2100 AC Charger, 2X100W EFL165503 Bottom Wing Set: Ultimate 3D SPMXCA507... -
Page 19: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2014 A. GENERAL B. RADIO CONTROL A model aircraft is a non-human-carrying aircraft capable of sustained flight 1. All pilots shall avoid flying directly over unprotected people, vessels, in the atmosphere. It may not exceed limitations of this code and is intended vehicles or structures and shall avoid endangerment of life and property exclusively for sport, recreation, education and/or competition. -
Page 20: Limited Warranty
Limited Warranty What this Warranty Covers – Horizon Hobby, LLC, (Horizon) warrants to the original the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the purchaser that the product purchased (the “Product”) will be free from defects in... -
Page 21: Fcc Information
EFL Ultimate 3D PNP (EFL16575) Horizon Hobby, LLC hereby declares that this product is in compliance with Horizon Hobby, LLC hereby declares that this product is in compliance with the the essential requirements and other relevant provisions of the RED and EMC essential requirements and other relevant provisions of the EMC Directive. - Page 22 E-flite, Avian, Plug-N-Play, Bind-N-Fly, BNF, the BNF logo, DSM, DSM2, DSMX, Spektrum AirWare, EC5, IC5, AS3X, SAFE, the SAFE logo, ModelMatch, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
