Resource Swing With Chaise Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly
Instructions
Swing With Chaise

Advertisement

loading
Need help?

Need help?

Do you have a question about the Swing With Chaise and is the answer not in the manual?

Questions and answers

Related Manuals for Resource Swing With Chaise

Summary of Contents for Resource Swing With Chaise

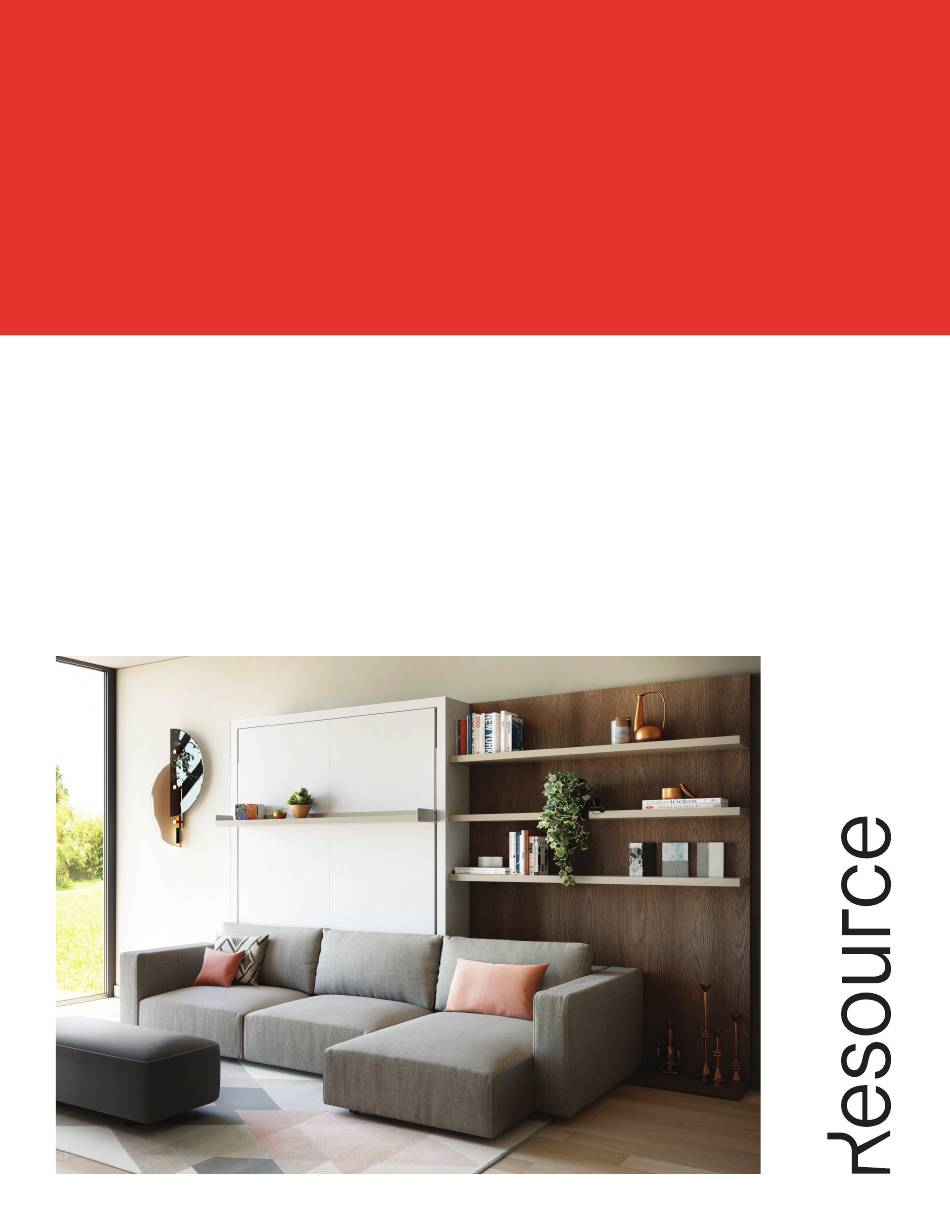

  • Page 1 Assembly Instructions Swing With Chaise...
  • Page 2 Warranties for all products purchased from Resource Furniture, LLC are only valid if the product has been properly assembled, Installed by a trained professional, and operated in accordance with the assembly instructions. Resource Furniture accepts no responsibility for any damage or injury caused by Improper Installation.
  • Page 3 SWING CHAISE SWING OVERVIEW Freestanding 13 3/4 42 1/2 68 1/8 86 5/8 13 3/4 42 1/2 110 5/8 49 1/4 68 1/8 86 5/8 110 5/8 86 5/8 MATTRESS SWING SWING MATTRESS SPECIFICATIONS Recommended weight: ~ 64 lbs Recommended weight: ~ 64Lbs Recommended dimensions: 79 1/2 x 60 x 7”...
  • Page 4 SWING OVERVIEW...
  • Page 5 SWING OVERVIEW...

  • Page 6: Swing Components

    SWING COMPONENTS CODE QTY. COMPONENTS Right side panel Left side panel Top horizontal panel Base Left/Right Small Side Panels (already attached to 1 & 2) Right Back Panel Left Back Panel Bed Frame Mattress Support Bar Front Shelf Sofa Seat & Storage Box Sofa Arm Support Bracket Sofa Arm Sliding Chaise Seat...
  • Page 7 SWING STRUCTURAL HARDWARE CODE QTY. COMPONENT DESCRIPTION 7 x 36 6MA Pins D15 L17 Cam Connectors Wood screws for back 3.5 x 20 panels 5MA x 50 Machine bolt for side panels Machine bolt for mattress 4MA x 18 support bar Wood screws for attaching top 4 x 40 panel to back panels...
  • Page 8 BOISERIE STRUCTURAL HARDWARE CODE QTY. DESCRIPTION Metal Shelf Sup- port Machine Bolt to attach Metal Shelf support to Boiserie Panel Cleat to attach Boi- serie Panel to wall Q 6 Wall Anchor (concrete walls only) A proper wall anchor suitable for the wall’s construction must be selected by the contractor or installer.
  • Page 9 STRUCTURE ASSEMBLY Attach the (2) left side panel to the (4) base using 2 (D) screws. Attach the (7) left back panel to the (2) left side panel using 3 (A) pins and 3 (B) cam connectors. Attach the (6) right back panel to the (7) left back panel with 3 (A) pins and 3 (B) cam connectors.
  • Page 10 STRUCTURE ASSEMBLY Attach the (3) top horizontal panel to the (2) left side panel with 2 (A) pins and 2 (B) cam connectors, and to the back panels with 4 (F) screws. Attach the (1) right side panel to the (4) base using 2 (D) screws, and to the top horizontal panel and back panels with 5 (A) pins and 5 (B) cam connectors.
  • Page 11 OPTIONAL WAND LIGHTING Drill 1/2” hole at 18 1/8” below upperbed structure panel (from inside) and 1 1/2” in from the side. Install mounting plate with provided wood screws, aligning the 1/2” drill holes. Wand Light Exploded Diagram Cord Length = 118” Front Back...
  • Page 12 LEVELING THE STRUCTURE Ensure that the structure is level and plumb. To compensate for any floor unevenness, use the adjustable feet on the bottom panel (det. 1 4a) to level the structure. det.1...

  • Page 13: Bed Frame Assembly

    BED FRAME ASSEMBLY Unscrew the safety plates fixed to the (4) base, as shown in det. 5a. The safety plates must be securely reattached after the levers are inserted. (see next page for details) det.5a Position the (8) bed frame within the structure as shown. Place the levers located near the head of the bed frame into their slots as shown in det.
  • Page 14 BED FRAME ASSEMBLY Attach the (9) mattress support bar to the bed frame using six (E) machine bolts.
  • Page 15 FRONT SHELF INSTALLATION Installing the shelf Attach the shelf to the feet of the bed frame, as shown, using 4 (I) screws. IMG.9: Attach the shelf to the feet of the bedframe, as shown, using 4 (I) screws. BED OPERATION OPENING THE BED IMAGE 10: Grasp the handle in the center of the shelf and pull down the bed, gently accompanying the...
  • Page 16 MATTRESS & HEADBOARD INSTALLATION Attach the headboard (if purchased by client) to the back of the structure. Secure the mattress to the bedframe by fastening the two buckled straps.
  • Page 17 BED FRAME ADJUSTMENT ADJUSTING THE TENSION ON THE BED FRAME SPRINGS IMAGE 12 To balance the bedframe, adjust the spring tension controllers with the 8mm allen To balance the bedframe, adjust the spring tension controllers with the 8mm allen wrench wrench provided.
  • Page 18 ASSEMBLY OF THE BOISERIE PANELS BOISERIE PANEL ASSEMBLY Installing the boiserie panel: IMG.15 Insert and fasten the M metal shelf pins into the holes on the (15) boiserie panel using 2 (O) bolts each. IMG.16 Place the boiserie panel next to the bed and ensure panel is level and plumb. Installing the boiserie panel: Insert and fasten the M metal shelf pins into the holes on the (15) boiserie panel using 2 (O) bolts each.
  • Page 19 SWING MODEL WITH SOFA ARM SWING MODEL WITH SOFA ARM nstalling the sofa arm support Installing the sofa arm support OPTIONAL SOFA ARM INSTALLATION IMG.20: attach the sofa arm support bracket (12) to the base (4) using machine bolts n°3 MG.20: attach the sofa arm support bracket (12) to the base (4) using machine bolts n°3 8MAx80, n°3 washers D8-24 and nut 8MA, as shown in the image below;...
  • Page 20 SOFA SEAT & STORAGE BOX INSTALLATION Installing the sofa seat and storage box IMG.22: Attach the sofa storage box (11) to the base (4) using (M) machine bolts. . Attach the sofa storage box (11) to the base (4) using (M) machine bolts.
  • Page 21 SLIDING CHAISE INSTALLATION Attach the sliding chaise mechanism (14) to the side panel using machine bolts n°2 8MAx35; and to the base (4) using machine bolts n°1 8MAx60, n°1 SPACER and n°1 NUT 8MA as shown in Image (det.23a). det.23a Position the sliding chaise (14) by placing the rails on top of the wheels.
  • Page 22 SWING CHAISE Operating the sliding chaise seat SLIDING CHAISE OPERATION IMG.25: The sliding chaise (14) starting from the closed position (flush with the front of the sofa seat);can be pulled forward into two different positions. The sliding chaise (14) starting from the closed position (flush with the front of the sofa seat);can IMG.26: The head rest can be raised into the relax position.
  • Page 23 SAFELY OPERATING YOUR SWING BED Make sure that any and all items on shelf are stable and secure at all times. Prior to opening bed, remove any items taller than approx. 12.” Remove back cushions. To store the cushions or bedding under seat, lift sofa seat from bottom front edge for Swing.
  • Page 24 SAFELY OPERATING YOUR SWING BED Remove pillows and tuck bedding in on all sides around mattress. Close both mattress straps around the bedding. Stand in the middle of the bed, grasp front edge of bed frame and lift. Continue to lift bed frame as you walk forward toward wall.
  • Page 25 ResourceFurniture.com...
