Assembly
Instructions

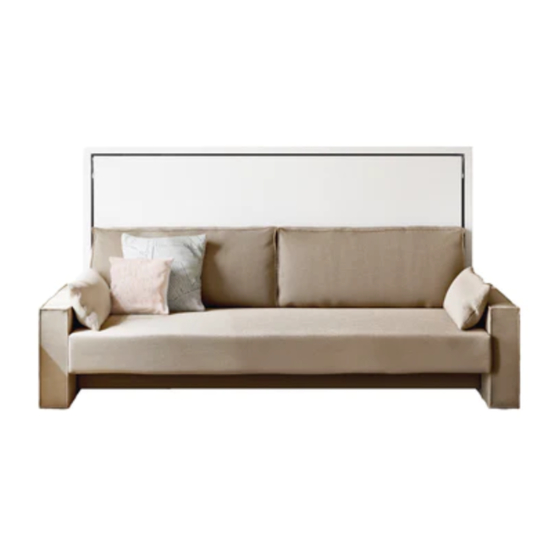

Kali Sofa 90/120

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kali 90 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Resource Kali 90

Summary of Contents for Resource Kali 90

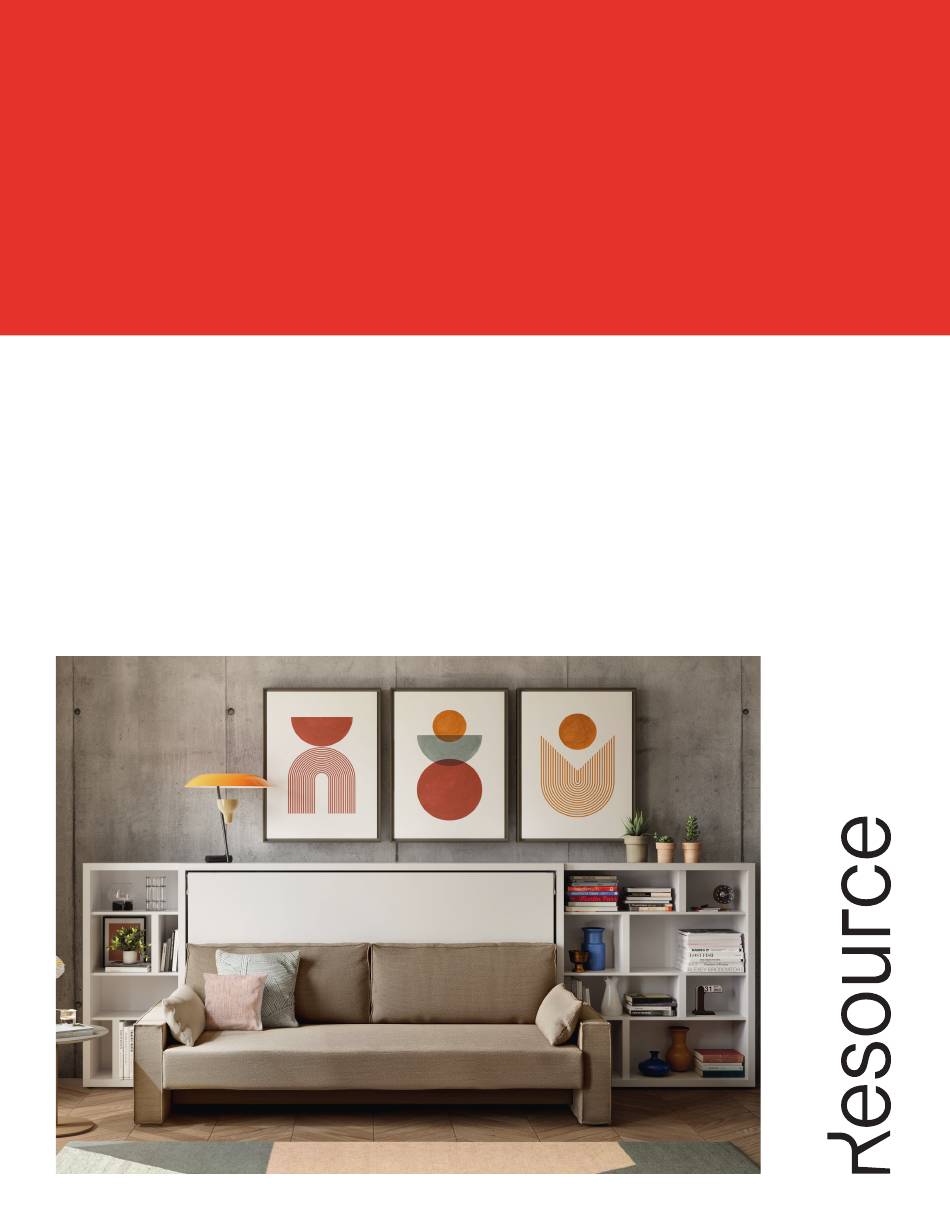

  • Page 1 Assembly Instructions Kali Sofa 90/120...
  • Page 2 Warranties for all products purchased from Resource Furniture, LLC are only valid if the product has been properly assembled, Installed by a trained professional, and operated in accordance with the assembly instructions. Resource Furniture accepts no responsibility for any damage or injury caused by Improper Installation.
  • Page 3 KALI SOFA 90/120 OVERVIEW Kali 90 Sofa Kali 120 Sofa Wide Arms KALI SOFA 90 MATTRESS SPECIFICATIONS KALI SOFA 120 MATTRESS SPECIFICATIONS Recommended weight: ~ 36 lbs Recommended weight: ~ 50 lbs Recommended dimensions: 31 1/2” x 78” x 7”...
  • Page 4 KALI SOFA 90/120 OVERVIEW...
  • Page 5 KALI SOFA 90/120 OVERVIEW...
  • Page 6 KALI SOFA 90/120 COMPONENTS CODE QTY. COMPONENTS Right side panel Left side panel Top horizontal panel Bottom horizontal panel Bed frame Back panels Headboard Metal mattress support bar Sofa frame Padded sofa seat Sofa armrests Metal plates for sofa frame Triangular reinforcement plates...
  • Page 7 KALI SOFA 90/120 TOOLS QTY. DESCRIPTION Allen wrench 4 MM Allen wrench 6 MM KALI SOFA 90/120 WALL MOUNTING HARDWARE CODE QTY. DESCRIPTION Wall anchors supplied anchors are for solid concrete walls only Wall brackets Bracket screws Note: The installer must determine the composition of the wall and appropriate anchors prior to installation.
  • Page 8 KALI SOFA 90/120 STRUCTURAL HARDWARE CODE QTY. DESCRIPTION Pins Cam connectors Phillips screw Hex screws - for attaching bed frame to structure Hex Screw - for attaching sofa frame to structure Conical Washer - for attaching sofa frame to structure and sofa armrests Hex Screw - for attaching triangular sofa plates to structure Phillips Screw - for triangular sofa...
  • Page 9 STRUCTURE ASSEMBLY Screw 8 (A) connector bolts into the (1) right vertical and (2) left vertical panels. Attach the (3) horizontal top and (4) horizontal bottom panels to the vertical panels by inserting and tightening 8 (B) cams. Attach the (6) back panel to the structure with 22 (C) Phillips screws.
  • Page 10 OPTIONAL KALI 90 WAND LIGHTING Drill 1/2” hole at 37 7/8” measured from the bottom of the structure (from inside) and 1 1/2” in from the side. Install mounting Plate with provided wood screws, aligning the 1/2” drill holes. Wand Light Exploded Diagram Cord Length = 118”...
  • Page 11 Wand Lighting OPTIONAL KALI 120 WAND LIGHTING Kali 120 Installation Guideline for • Drill 1/2” hole at 37 7/8” measured from the bottom of the structure (from inside) and 1 Drill 1/2” hole at 37 7/8” measured from the bottom of the structure (from inside) and 1 1/2” in 1/2”...
  • Page 12 LEVELING THE STRUCTURE Ensure that the structure is level and plumb. To compensate for any floor unevenness, use the adjustable feet on the (4) horizontal bottom panel (det. 2a) to level the structure. det.2a...
  • Page 13 WALL BED ATTACHMENT Locate the two open spaces at the top of the 6 back panel. Draw a line through the open space along the top 3 panel as shown in Image 3 to mark where the wall anchors will be placed. Move the structure away from the wall and attach the WB wall bracket to the wall using 2 WA wall anchors.
  • Page 14 WALL BED ATTACHMENT Re-position the structure against the wall, ensuring that the 2 wall brackets pass through the open spaces in the back panel. Attach the bracket to the bottom of the top horizontal panel by screwing 1 (WA) screw into each bracket as shown. Do not fasten completely. Adjust the position of the structure, ensuring that it is level and plumb.
  • Page 15 BED BASE INSTALLATION Fasten the 8 mattress support bar to the 5 bed frame using the 5MA x 20 screws attached to the bar. Mattress bar must be installed before the bed base is inserted into the structure. det.7a...
  • Page 16 SOFA FRAME INSTALLATION Attach the 2 (12) metal plates to the (5) bed frame with 6 (M) hex screws, as shown below. det.8a...
  • Page 17 BED FRAME INSTALLATION Position and insert the (5) bed frame within the structure as shown in det. 9a. det.9a det.9a...
  • Page 18 BED FRAME INSTALLATION Close the lower bed and fasten 2 D hex screws into the mechanisms on both vertical panels, as shown in det. 10a.
  • Page 19 SOFA BASE INSTALLATION Ensure that the upper and lower bed frames are locked in their upright positions. Align the holes at the back of the (9) sofa frame with those on the (12) metal plates. Secure into place by using 2 (M) hex screws and 2 (N) conical washers, as shown in det.
  • Page 20 SOFA BASE INSTALLATION Insert 6 (R) dowels into the top three holes on both the left and right vertical panels. Insert and secure the (T) threaded rods into the lowest hole on both the left and right vertical panels. Position the 2 (11) armrests in front of the left and right panels, lining up the holes on the armrests with the dowels and rods.
  • Page 21 SOFA BASE INSTALLATION Lift the fabric on the outside of the armrest to access the (T) threaded rods. Attach the (S) plate and (U) nut to each dowel, tightening firmly. det.13a...
  • Page 22 SOFA BASE INSTALLATION Attach the 13 triangular reinforcement plates to each armrest using 2 P screws, 2 U nuts, and 5 Q washers, like shown in det. 14a. Then, secure the triangular reinforcement plates to the horizontal bottom base panel using 2 O screws and 2 Q washers, like shown in det. 14b. det.14a det.14b...
  • Page 23 SOFA BASE INSTALLATION Place the (10) padded seat cushion on the sofa frame, wrapping the excess fabric around the back of the bed frame and fastening with velcro.
  • Page 24 SOFA BASE INSTALLATION Secure the levers at the front of the sofa frame to the armrests using 2 (M) hex screws and 2 (N) conical washers. dett.16a...

  • Page 25: Headboard Installation

    HEADBOARD INSTALLATION Remove the 2 caps from the end of the bed frame on which you wish to place the headboard. Fasten the (7) headboard to the frame using the screws included with the headboard. det.17a...
  • Page 26 ResourceFurniture.com...

This manual is also suitable for:

Kali 120
