- Page 1 PDF provided by Conference Room AV WyreStorm SP-0104-H2 1x4 4K HDMI Splitter w/ HDMI 2.0 & HDCP 2.2...
-
Page 2: Additional Information

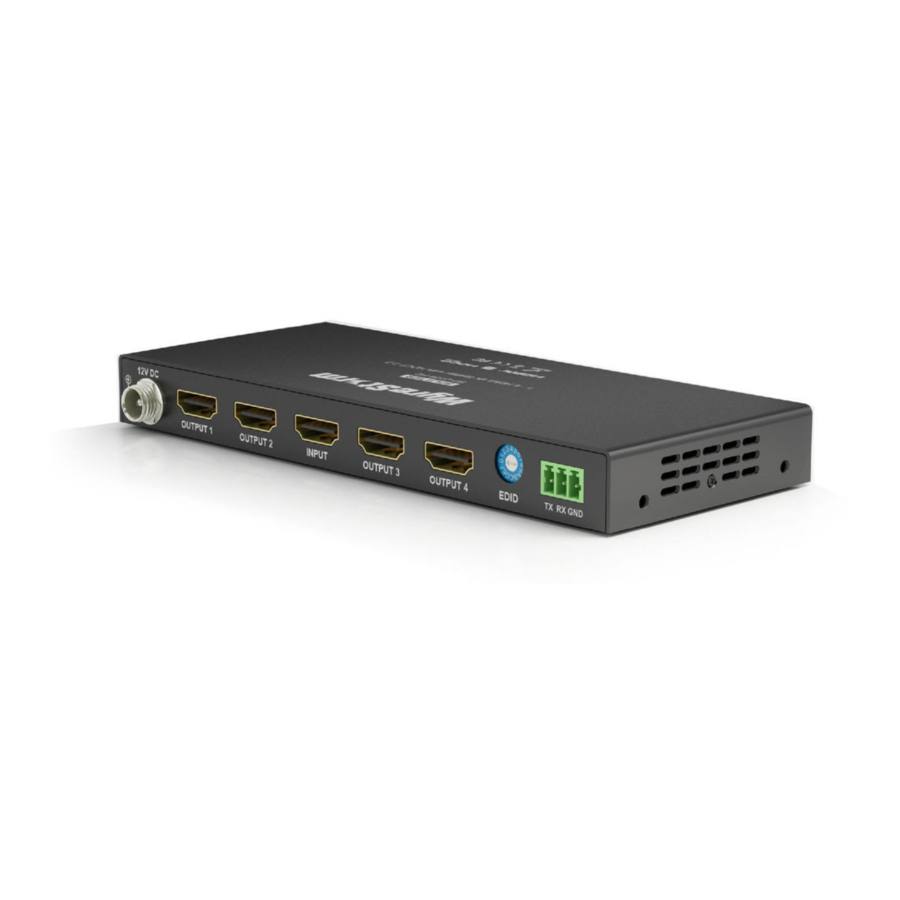

SP-0104-H2 | SP-0108-H2 Pure HDMI 1x4 or 1x8 splitter with support for full 4K resolutions and HDCP 2.2. WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. -
Page 3: Front Panel
Used to set EDIDs to correct resolution conflicts between the source and the display. EDID Settings. 3-pin Screw Down Phoenix Connector RS-232 Used to update firmware on the SP-0104-H2. See RS-232 Wiring. Copyright © 2015 WyreStorm Technologies | wyrestorm.com North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343... -
Page 4: Edid Settings
HDMI transmission limiting performance. Steps should be taken to minimize these factors (or remove completely) during installation for best results. • WyreStorm recommends using HDMI cables from a high quality brand WyreStorm Express. such as •... -
Page 5: Specifications
1080p: 48bit Deep Color | 4K: 24bit Maximum Pixel Clock 600MHz Troubleshooting Tips: Communication and Control • WyreStorm recommends using a cable tester or connecting the cable HDCP 2.2 | EDID DVI/D with adapter (not to other devices to verify functionality. HDMI included)
