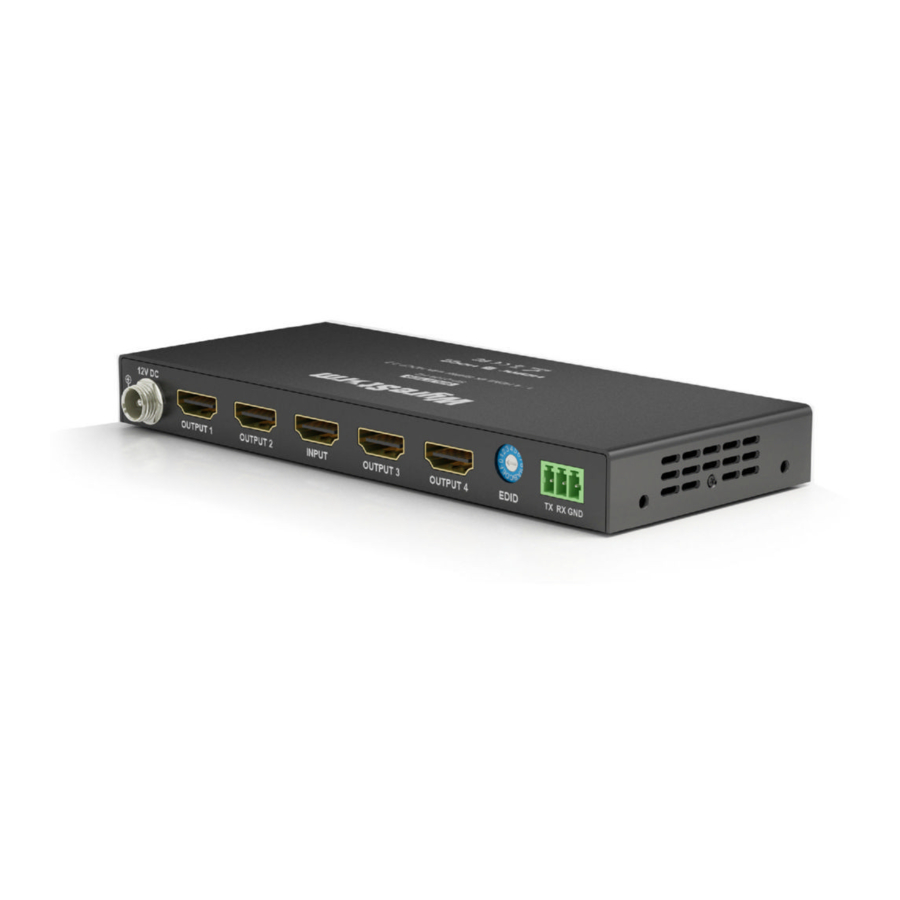

1x4 / 1x8 4K HDMI 2.0 Splitter with HDCP 2.2
SP-0104-H2 | SP-0108-H2 v2
Pure HDMI 1x4 or 1x8 splitter with support for full 4K resolutions and HDCP 2.2.
Note: The following information applies to version 2 of this product as identified by v2 after the model number on the product label.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
In the Box
1x SP-0104-H2 or SP-0108-H2 Splitter
SP-0104-H2: 1x 12V DC 1A Power Supply
SP-0108-H2: 1x 12V DC 1.5A Power Supply
1x 3-pin Screw Down Phoenix Connector
2x Mounting Brackets
1x Quickstart Guide

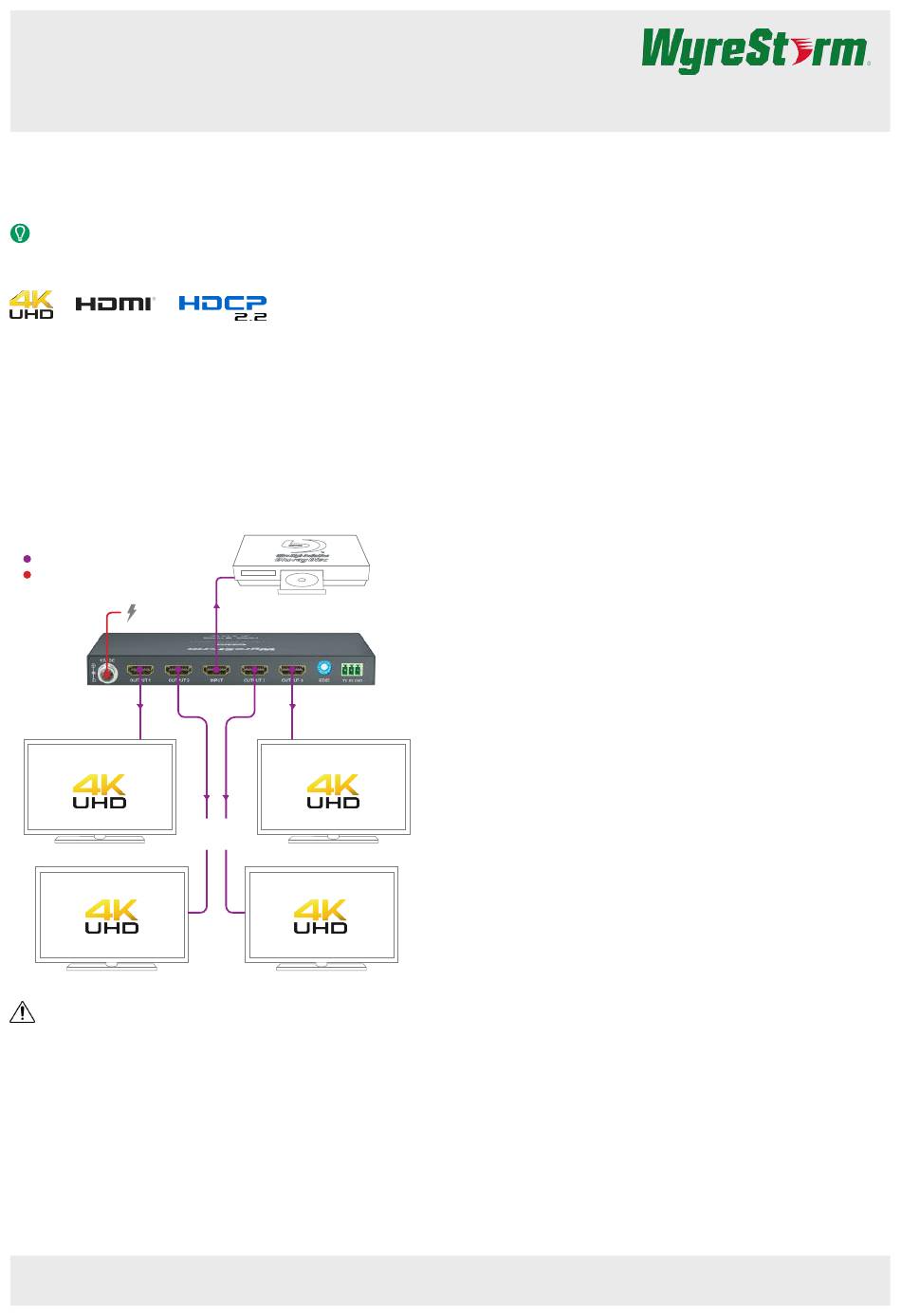

Basic Wiring Diagram
KEY
HDMI
Power
SP-0104-H2:
12V DC 1A
SP-0108-H2:
12V DC 1.5A
Power Supply
HDMI to
display
UHD Display
UHD Display
IMPORTANT!
Disconnecting and connecting (hot plugging) HDMI or HDBaseT while devices
are powered on may cause damage. WyreStorm recommends powering off
devices before disconnecting these connections.
Copyright © 2015 WyreStorm Technologies |
SP-0104-H2 | SP-0108-H2 v2 Quickstart Guide | 161213
UHD Source
HDMI to
display
HDMI to
display
UHD Display
UHD Display
wyrestorm.com
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this
product. Refer to the Installation Guide and other documentation on the
product page for additional information.
Before Beginning
• WyreStorm recommends visiting the product page before installing this
product for updates to this Quickstart Guide as well as other information
about the product.
• Verify that all items are included in the packaging per the
Installation
1.
Connect an HDMI source to the HDMI In on the splitter using an HDMI
cable from a high quality brand such as
2.
Connect HDTV displays to Output 1 using an HDMI cable from a high
quality brand such as
3.
Repeat step 2 for additional displays or additional splitters.
4.
Connect the included 12V DC 1A power supply to the DC 12V jack.
5.
Configure EDIDs per the
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
WyreStorm
Express.
WyreStorm
Express.
EDID Settings
section.
support@wyrestorm.com
In the Box
list.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wyrestorm SP-0104-H2
Summary of Contents for Wyrestorm SP-0104-H2
- Page 1 Note: The following information applies to version 2 of this product as identified by v2 after the model number on the product label. WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process.
- Page 2 Rear Panel 5.5mm Male Barrel Jack Power In Connect to the included 100~240V AC 50/60Hz power supply. SP-0104-H2: 12V DC 1A | SP-0108-H2: 12V DC 1.5A 19-pin type A HDMI female: HDMI Outputs SP-0104-H2: 1-4 | SP-0108-H2: 1-8 Supports HDMI and DVI/D (requires adapter-not included). Limited to 600MHz pixel clock.
- Page 3 HDMI transmission limiting performance. Steps should be taken to minimize these factors (or remove completely) during installation for best results. • WyreStorm recommends using HDMI cables from a high quality brand WyreStorm Express. such as •...
- Page 4 Audio and Video Inputs 1x HDMI 19-pin type A Outputs SP-0104-H2: 4x HDMI 19-pin type A | SP-0108-H2: 8x HDMI 19-pin type A Audio Formats 2ch PCM | Up to DTS-X and Dolby Atmos HDMI 1920x1080p @60Hz 12bit (15m/49.2ft) | 16bit (15m/49.2ft) Video Resolutions (Max) 3840x2160p @30Hz 4:4:4 8bit (15m/49.2ft) | @24Hz 4:2:0 HDR 10bit (15m/49.2ft)
