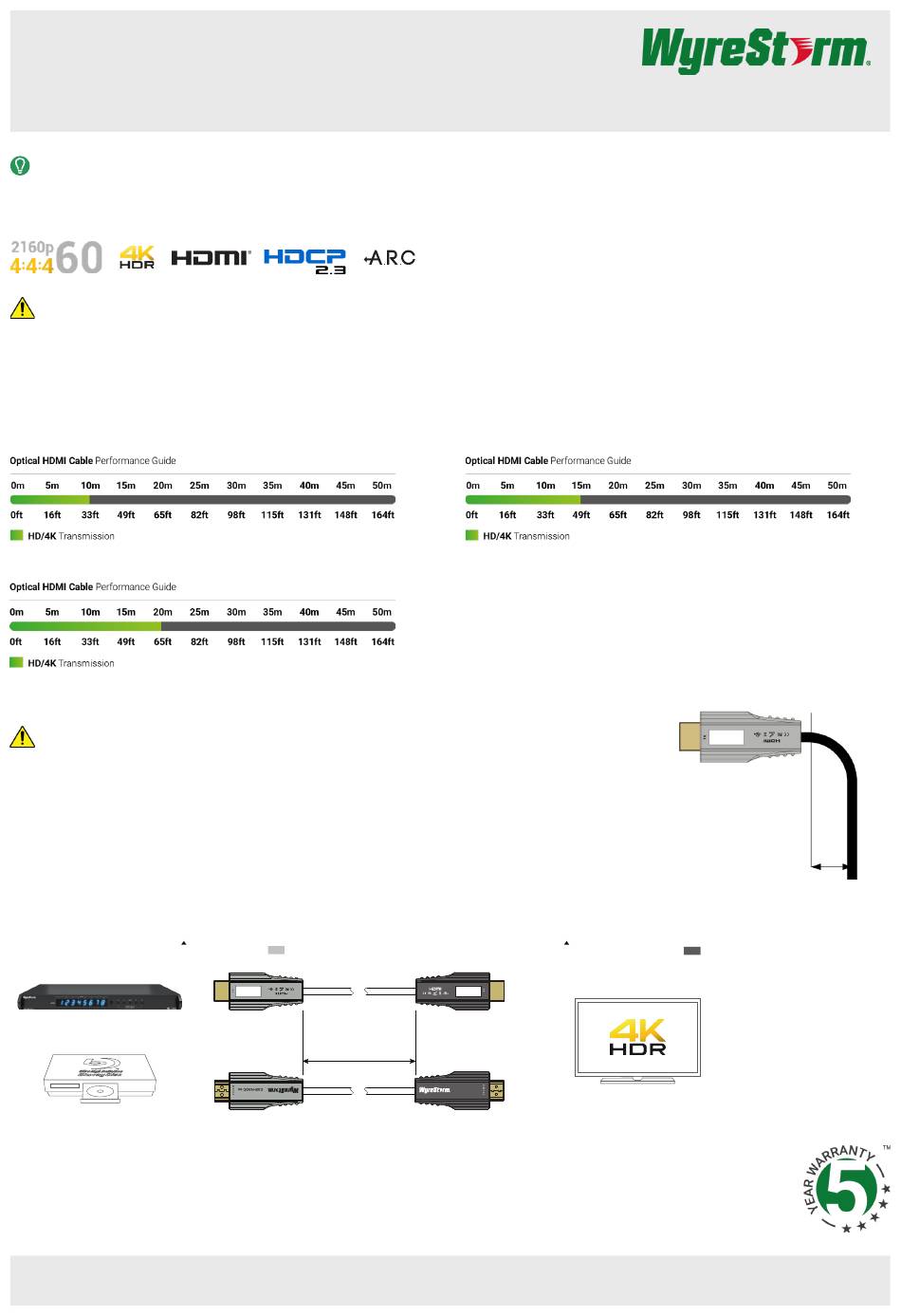

Wyrestorm CAB-HAOC-10 Quick Start Manual

24Gbps 4:4:4 60Hz over Active Optical HDMI Cable
(10m/33ft | 15m/49ft | 20m/65ft)
CAB-HAOC-10 | CAB-HAOC-15 | CAB-HAOC-20
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process. This product has been released in 3 versions for the 10m/15m/20m lengths that have different level certifications. Version 3 of these lengths adds
CL3/FT4 certification which is not available on the version 1 and 2.
IMPORTANT! Installation Requirements
Cable is uni-directional. Follow the connector labeling and color coding to
ensure proper operation of the cable.
Cable Distances
CAB-HAOC-10
CAB-HAOC-20
Wiring and Connections
IMPORTANT! Installation Requirements
The WyreStorm Active Optical cables are designed to transmit HDMI signals from the source to a display.
• Follow the labeling and the diagrams for connection to ensure proper operation.
• Due to the core of the HAOC being fiber optic the cable cannot have a bend radius greater than 2cm/0.78in.
Keep this mind when routing cables around objects and inside of walls.
• The cables have a max pull tension of 15kg/33lbs. Keep this in mind when routing the cable within cabinets
or walls to avoid damaging the cable.
Basic Wiring Diagram
Source Connection Label: TX SOURCE
WyreStorm Matrix
HD/4K Source
Warranty Information
WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a
period of five (5) years from the date of purchase. Refer to the
product warranty.
Copyright © 2019 WyreStorm Technologies |
CAB-HAOC-xx v3 Quickstart Guide | 191108
Color: Silver
CAB-HAOC-10: 10m
CAB-HAOC-15: 15m
CAB-HAOC-20: 20m
Product Warranty
wyrestorm.com
In The Box

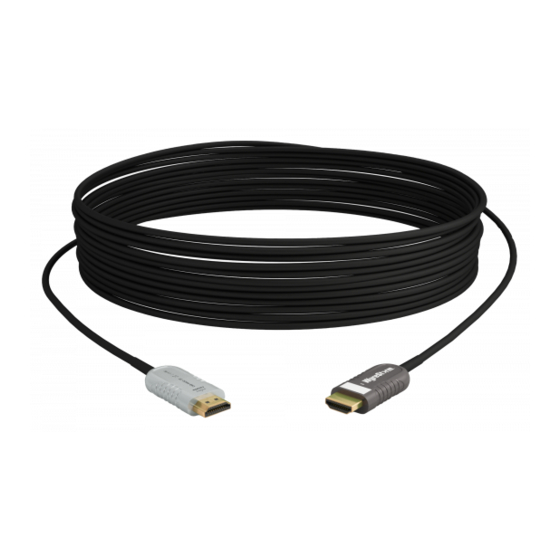

1x CAB-HAOC-10, CAB-HAOC-15 or CAB-HAOC-20 Active Optical HDMI Cable
2x Reusable Cable Ties
1x Quickstart Guide (This Document)
CAB-HAOC-15
Display Connection Label: TX DISPLAY
CAB-HAOC-xx
page on wyrestorm.com
1 of 2
Quickstart Guide
Color: Metalic Gray
for more details on our limited
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
support@wyrestorm.com
2.0 cm.
0.78 in.
