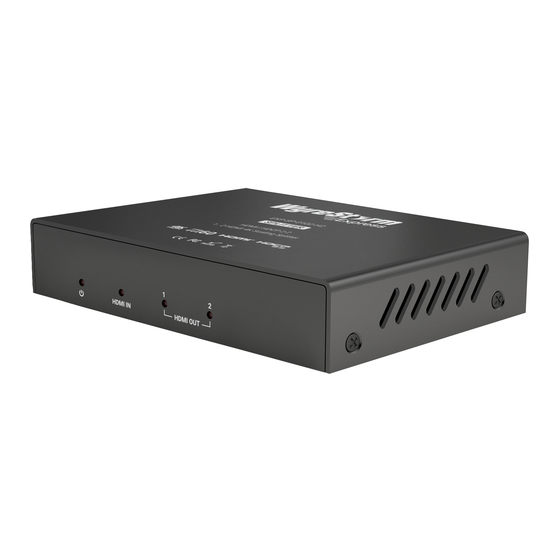

4K HDR HDMI Splitter with 2 Scaling Outputs
EXP-SP-0102-H2
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Read through the
Wiring and Connections
before creating or choosing premade cables.
Basic Wiring Diagram
Copyright © 2019 WyreStorm Technologies |
EXP-SP-0102-H2 Quickstart Guide | 190930
section for important guidelines
4K HDR Source
DC 5V
EX-SP-0102-H2
HDMI
HDR Display
wyrestorm.com
In The Box
1x WyreStorm EXP-SP-0102-H2 HDMI Splitter
2x Mounting Brackets
1x 5v DC Power Supply
HDMI
HDMI
1080p Display
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 2
Quickstart Guide
KEY
HDMI
Power
support@wyrestorm.com
Advertisement
Table of Contents
Related Manuals for Wyrestorm EXP-SP-0102-H2
Summary of Contents for Wyrestorm EXP-SP-0102-H2
- Page 1 4K HDR HDMI Splitter with 2 Scaling Outputs Quickstart Guide EXP-SP-0102-H2 WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. In The Box IMPORTANT! Installation Requirements 1x WyreStorm EXP-SP-0102-H2 HDMI Splitter •...
- Page 2 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
